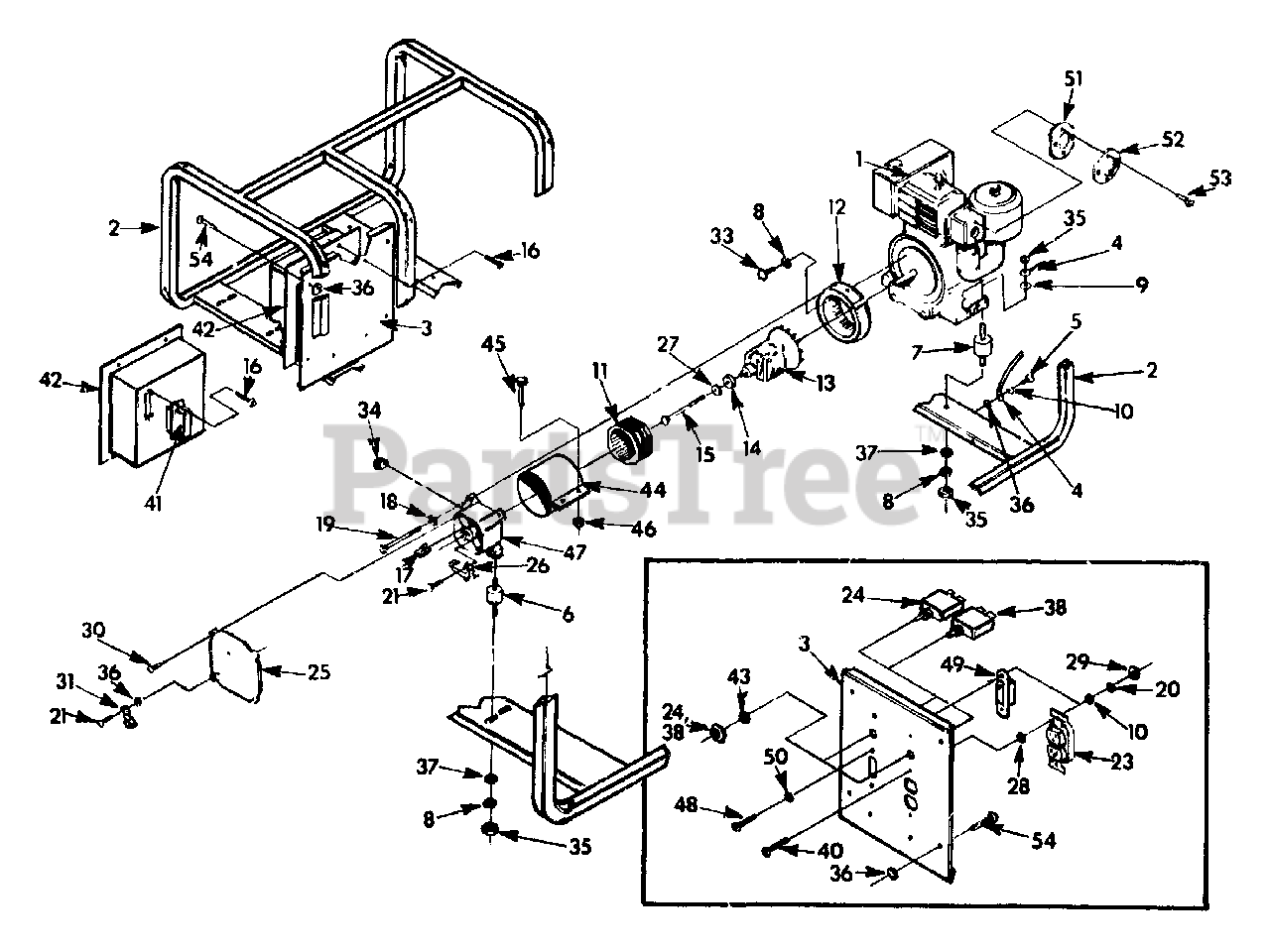

3W794 (9432-0) - Generac 2,250 Watt Portable Generator Generator Parts Diagram

2,250 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 78257

Briggs & Stratton engine -- 5 h.p.
(Superseded to 7078257YP)

$19.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 83990

Cradle assembly

$

$

Currently unavailable

3

Briggs & Stratton 84027

Control panel side

$

$

Currently unavailable

4

Briggs & Stratton 10953621

Ground wire

$

$

Currently unavailable

5

Briggs & Stratton 24911

No. 8 x 3/8" Taptite screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66443A

Vibration mount

$

$

Currently unavailable

7

Briggs & Stratton 66443B

Vibration mount
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

M8 Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

5/16" Shake-proof washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

No. 8 Flat washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 83993

Stator assembly

$

$

Currently unavailable

12

Briggs & Stratton 66365F

Engine adaptor housing
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74713

Rotor assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24420

5/16"-24 x 7-7/8" Rotor bolt

$

$

Not available

16

Briggs & Stratton 82308

3 x 18 STC self tapping screw
(Superseded to 82308GS)

$2.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 66850

Bridge rectifier circuit board
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

M6 Lock washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449C

M6-1.00 x 80mm Stator bolt

$

$

Currently unavailable

20

Briggs & Stratton 22264

No. 8 Lock washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.8 x 15mm Taptite screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120 volts, 20 amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 75207B

10 amp Circuit breaker
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 67025

Bearing carrier cover

$

$

Currently unavailable

26

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 67451

Flat washer (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

No. 8 Lock washer (serrated)
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

M4-0.7 Hex nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Taptite screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

Grounding lug

$

$

Not available

33

Briggs & Stratton 22336

5/16"-24 x 3/4" Hex head screw

$

$

Not available

34

Briggs & Stratton 67022

Bearing carrier grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45771

M8-1.25 Hex nut

$

$

Not available

36

Briggs & Stratton 22769

No. 10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22145

M8 Flat washer

$

$

Not available

38

Briggs & Stratton 75207

20 amp Circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

40

Briggs & Stratton 75475

M4-0.7 10mm Phillips pan head machine screw

$

$

Not available

41

Briggs & Stratton 22694

Black receptacle housing
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 81919

Rear panel cover
(Superseded to 81919GS)

$136.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 82881

Internal lock washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 81887A

Alternator wrap
(Superseded to 81887AGS)

$18.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 52618

M5-0.8 x 12mm Hex head screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 52856

M5-0.8 Locking nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 66825

Rear bearing carrier

$

$

Currently unavailable

48

Briggs & Stratton 43181

M3-0.5 x 10mm Pan head machine screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 66822

12 volts, DC Retainer outlet
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 43182

M3 Lock washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 77601

Spark arrestor screen
(Superseded to 77601GS)

$32.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 77836

Spark arrestor deflector
(Superseded to 77836GS)

$8.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 77836A

Deflector screws
(Superseded to 77836AGS)

$1.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 75494

No. 10-24 Self-tapping hex head capscrew

$

$

Not available
