3P409 D - Electrolux/AYP Walk-Behind Mower (1998) ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

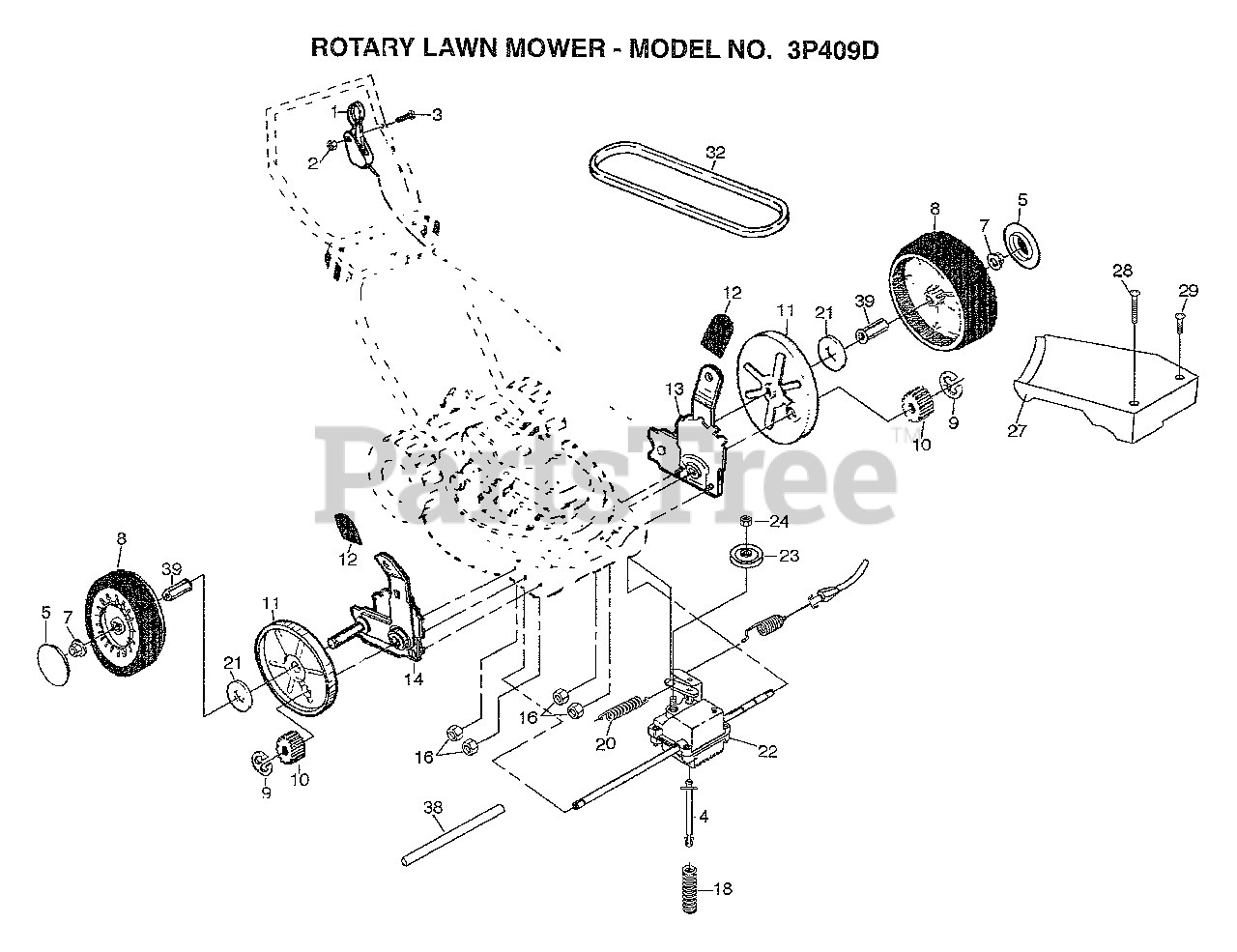

ROTARY LAWN MOWER Parts Diagram

  • Title
1

Electrolux/AYP 146323

CONTROL.DRV.56.25
(Superseded to 532184588)

$53.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 751152

LOCKNUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

3

Electrolux/AYP 158755

PAN HEAD SCREW
(Superseded to 532158755)

$

$

Not available

4

Electrolux/AYP 150495

SPRING.RETAINER.
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

7

Murray 145212

NUT.HXFLG.LOCK.
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 700953

WHEEL.8X2.LP.PR
(Superseded to 532193144)

$

$

Not available

9

Electrolux/AYP 12000058

E-RING.7/16.RE.
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 137054

PINION.GEAR
(Superseded to 532137054)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 88080

DUST SHROUD PM
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 151521

WHEEL.ADJ.ASM.LH.
(Superseded to 532151521)

$

$

Not available

14

Electrolux/AYP 151520

WHEEL.ADJ.ASM.RH.
(Superseded to 532151520)

$

$

Not available

16

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

18

Electrolux/AYP 137090

SPRING.TENSION
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 75192

SPRING
(Superseded to 532075192)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 67725

WASHER FLUT
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

22

$

$

Not available

23

Electrolux/AYP 137052

PULLEY.DRIVEN
(Superseded to 532194126)

$

$

Not available

24

Electrolux/AYP 132010

LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 137080

COVER DRIVE BLK

$

$

Not available

28

Electrolux/AYP 146072

SCREWL.SLOT.TORXT
(Superseded to 532146072)

$7.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 149746

SCREW.SLOT.TORTX.
(Superseded to 532149746)

$7.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 146527

SUB= 157769

$

$

Not available

38

Electrolux/AYP 86012

DRV SHAFT TUBE PM

$

$

Not available

39

Electrolux/AYP 88446

BUSHING.HEX

$

$

Not available
