3M402 A - Electrolux/AYP Walk-Behind Mower (1995) GEAR CASE Parts Diagram

Walk-Behind Mower

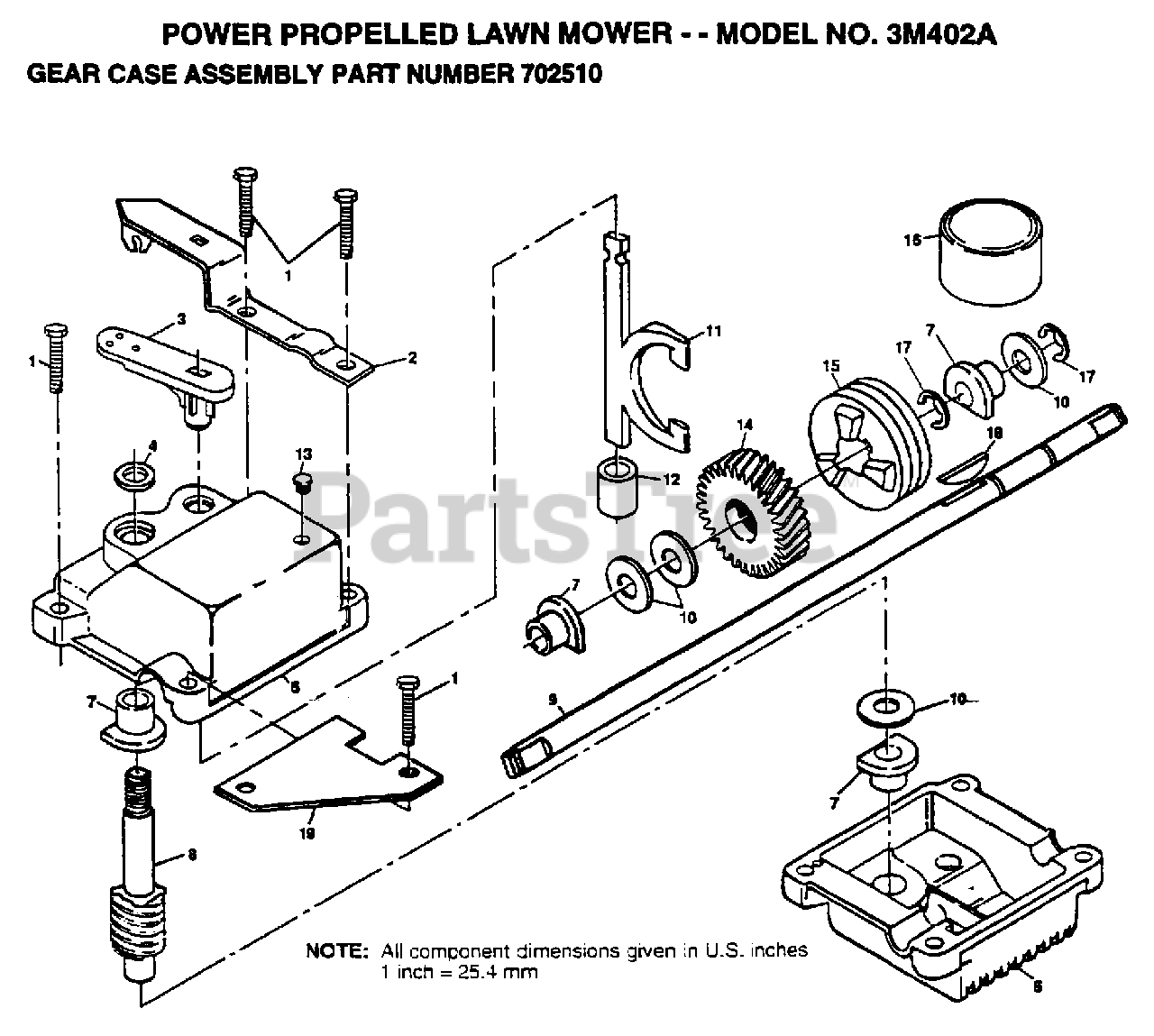

GEAR CASE Parts Diagram

  • Title
1

Electrolux/AYP 17490416

SCREW.1/4-20
(Superseded to 583608301)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 137055X004

BRACKET.GEARCASE
(Superseded to 532137055)

$3.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 137053

SHIFTER
(Superseded to 532137053)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 57072

SEAL
(Superseded to 532057072)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 48373

KIT GEARCASE HALV

$

$

Not available

7

Electrolux/AYP 77881

BEARING
(Superseded to 532077881)

$30.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 137051

SHAFT.WORM
(Superseded to 532183863)

$

$

Not available

9

Electrolux/AYP 137077

SHAFT.DRIVE.SD
(Superseded to 532137077)

$

$

Not available

10

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 12

0

11

Electrolux/AYP 131484

CLUTCH YOKE
(Superseded to 532131484)

$

$

Not available

12

Electrolux/AYP 700343

BUSHING.GEAR BOX
(Superseded to 532700343)

$

$

Not available

13

Electrolux/AYP 86447

PLUG PM
(Superseded to 532086447)

$

$

Not available

14

Electrolux/AYP 137050

GEAR.HELICAL
(Superseded to 532137050)

$46.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 750436X

CLUTCH JAW
(Superseded to 532750436)

$

$

Not available

16

$

$

Not available

17

Electrolux/AYP 12000003

RING T
(Superseded to 812000003)

$

$

Not available

18

Electrolux/AYP 850848

HI PRO KEY
(Superseded to 532850848)

$6.49

$

Usually ships in 3-10 days

0

19

$2.99

$

Usually ships in 3-10 days

0
