3H402 A - Electrolux/AYP Walk-Behind Mower 22" ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

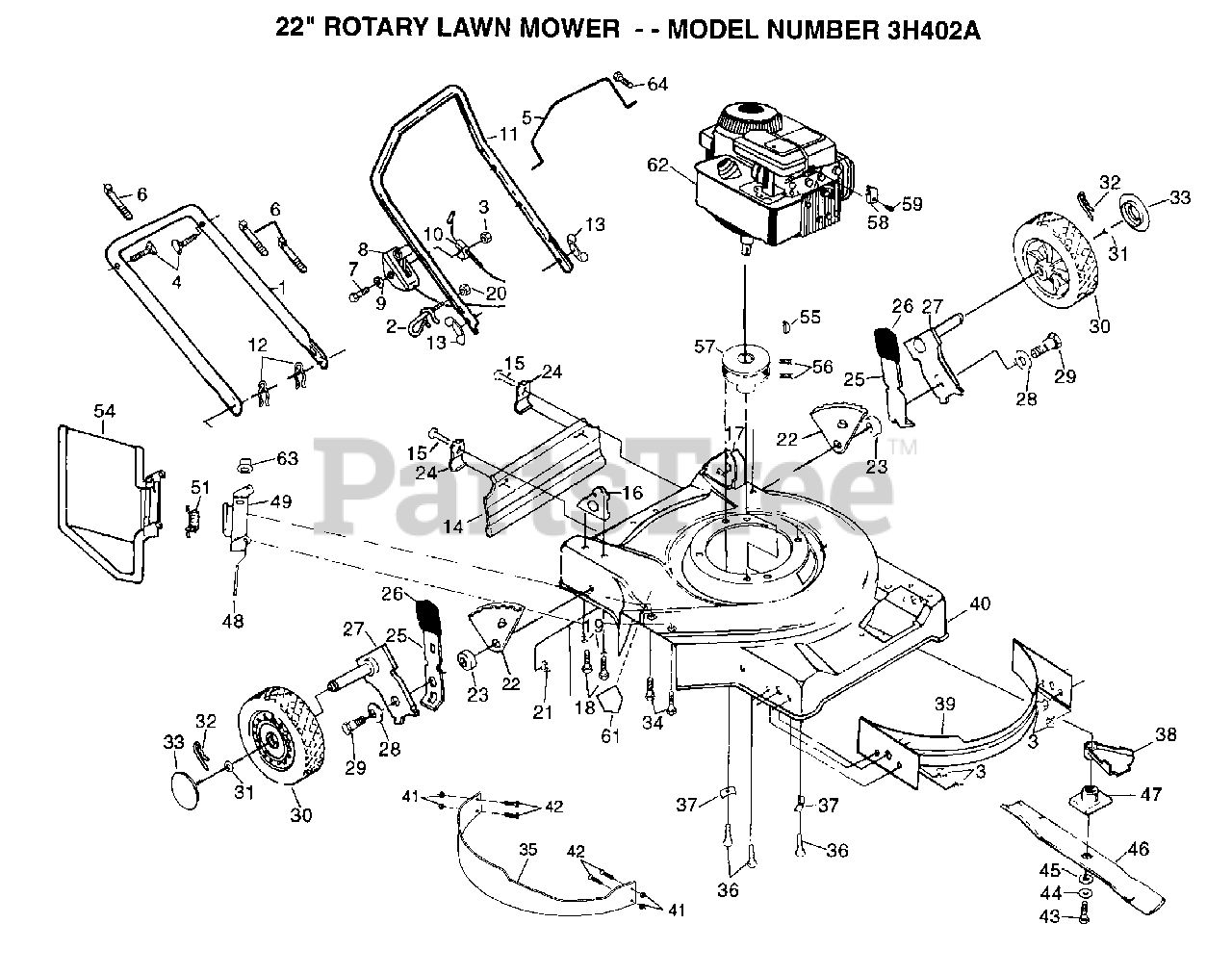

22" ROTARY LAWN MOWER Parts Diagram

  • Title
1

Electrolux/AYP 132813X479

SUB= 151721X479

$

$

Not available

2

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

4

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

5

Electrolux/AYP 132570

CONTROL BAR
(Superseded to 582948101)

$6.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 86055

SUB= 144929

$

$

Not available

8

Electrolux/AYP 700417

"CONTROL, THROTTLE"
(Superseded to 532700417)

$24.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 85723

WASHER PM
(Superseded to 532085723)

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$

$

Not available

11

Electrolux/AYP 132670X479

SUB= 154480X479

$

$

Not available

12

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

14

Electrolux/AYP 128797

SUB= 140540

$

$

Not available

15

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

16

$

$

Not available

17

$

$

Not available

18

Electrolux/AYP 55187

SCREW
(Superseded to 532055187)

$6.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 59289

STEEL WASHER
(Superseded to 532059289)

$4.99

$

In Stock, only 3 left!

0

20

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

21

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 700375

SUB= 700325X007

$

$

Not available

23

Electrolux/AYP 84920

SUB= 146630

$2.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 87584X004

"BRKT,DEFL PM"
(Superseded to 532192301)

$

$

Not available

25

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 85021X004

AXLE ARM
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 84921

SUB= 142748

$

$

Not available

30

Electrolux/AYP 800390

SUB= 146247
(Superseded to 532151155)

$31.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 52160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 85179

RETAINER CLIP PM
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

34

Electrolux/AYP 851856

SCREW
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 82432X479

BAFFLE.MULCH.22SD

$

$

Not available

36

Electrolux/AYP 850998

SCREW
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

$

$

Not available

38

Electrolux/AYP 134912

DEBRIS SHIELD

$

$

Not available

39

Electrolux/AYP 132352X479

BAFFLE FRONT 22SD
(Superseded to 165549)

$

$

Not available

40

Electrolux/AYP 701767

SUB= 702527

$

$

Not available

41

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

43

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

46

Electrolux/AYP 134768

SUB= 141114

$

$

Not available

47

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 851854

"ROD,HINGE "

$1.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 851852X004

"BRKT,HSG"
(Superseded to 532147775)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 851855

"SPRING,TORSION"

$2.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 851750

SUB= 532851750

$

$

Not available

55

Electrolux/AYP 87677

HI PRO KEY PM
(Superseded to 532087677)

$

$

Not available

56

Electrolux/AYP 59708

SCREW
(Superseded to 532059708)

$6.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 84596

ENGINE.PULLEY.FWG
(Superseded to 532084596)

$34.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

59

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 85463

DECAL-DANGER PM
(Superseded to 582940001)

$4.99

$

In Stock, only 1 left!

0

62

REFER TO IMAGE

$

$

Not available

63

Electrolux/AYP 83731

PUSH ON SPEED NUT
(Superseded to 532083731)

$4.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 851552

"SCREW,PAN HD"
(Superseded to 532851552)

$

$

Not available

Electrolux/AYP 83976X479

"BAFFLE,REAR"

$

$

Not available

Electrolux/AYP 700480

"MANUAL,OP"

$2.99

$

Usually ships in 3-10 days

0

$

$
