3D209 A - Electrolux/AYP Walk-Behind Mower 22" ROTARY MOWER Parts Diagram

Walk-Behind Mower

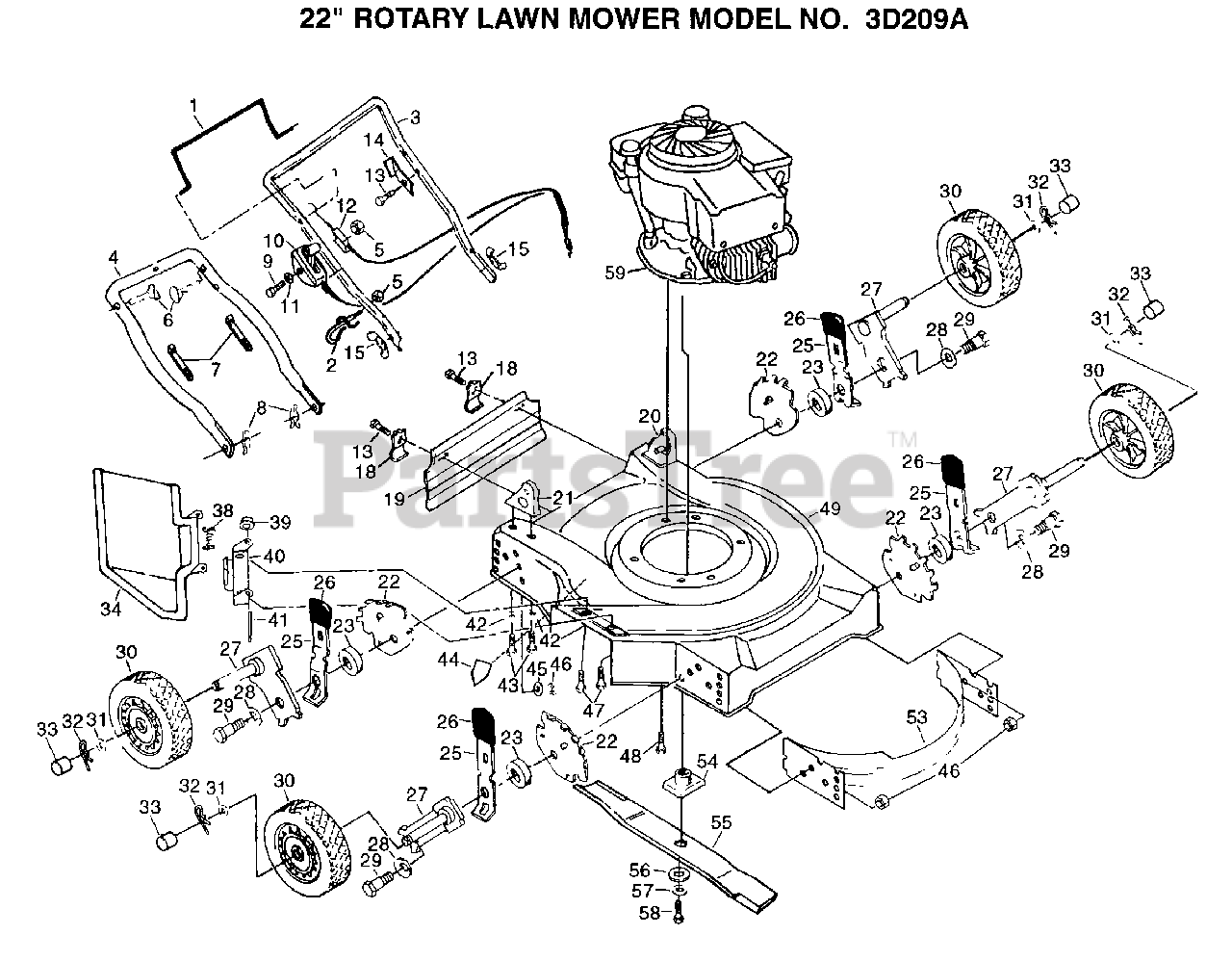

22" ROTARY MOWER Parts Diagram

  • Title
1

Electrolux/AYP 86902

CONTROL BAR PM
(Superseded to 532086902)

$

$

Not available

2

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Electrolux/AYP 132649X479

SUB= 160223X479

$

$

Not available

4

Electrolux/AYP 84676X479

SUB= 151516X479

$

$

Not available

5

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

6

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

7

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 86055

SUB= 144929

$

$

Not available

10

Electrolux/AYP 700583

"CONTROL, THROTTLE"
(Superseded to 532700583)

$14.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 85723

WASHER PM
(Superseded to 532085723)

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$

$

Not available

13

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Electrolux/AYP 850733X004

"BRKT,UPSTOP"
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

18

Electrolux/AYP 87584X004

"BRKT,DEFL PM"
(Superseded to 532192301)

$

$

Not available

19

Electrolux/AYP 128797

SUB= 140540

$

$

Not available

20

$

$

Not available

21

$

$

Not available

22

Electrolux/AYP 700378

SUB= 700328X007

$

$

Not available

23

Electrolux/AYP 84920

SUB= 146630

$2.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 85021X004

AXLE ARM
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 84921

SUB= 142748

$

$

Not available

30

Electrolux/AYP 800220

WHEEL.ASM
(Superseded to 532146248)

$

$

Not available

31

Electrolux/AYP 52160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 85179

RETAINER CLIP PM
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 800090

HUB CAP-PLASTIC
(Superseded to 584458901)

$18.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 851750

SUB= 532851750

$

$

Not available

38

Electrolux/AYP 851855

"SPRING,TORSION"

$2.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 83731

PUSH ON SPEED NUT
(Superseded to 532083731)

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 851852X004

"BRKT,HSG"
(Superseded to 532147775)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 851854

"ROD,HINGE "

$1.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 59289

STEEL WASHER
(Superseded to 532059289)

$4.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 55187

SCREW
(Superseded to 532055187)

$6.49

$

In Stock, Qty 6

0

44

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 61537

SUB= 19132012

$

$

Not available

46

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 851856

SCREW
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 850998

SCREW
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 700808

SUB= 702208

$

$

Not available

53

Electrolux/AYP 132351X479

SUB= 700929X479

$

$

Not available

54

Electrolux/AYP 850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 850973

"BLADE.22"""
(Superseded to 532406713)

$26.99

$

In Stock, Qty 10

0

56

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

57

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

59

REFER TO IMAGE

$

$

Not available

$

$

Not available

Electrolux/AYP 701798

MANUAL.P.3D209A

$2.49

$

Usually ships in 3-10 days

0
