39A70148 (39A70148100) - Cub Cadet Utility Vehicle Winch Kit for M550/M750 General Assembly Parts Diagram

Utility Vehicle Winch Kit for M550/M750

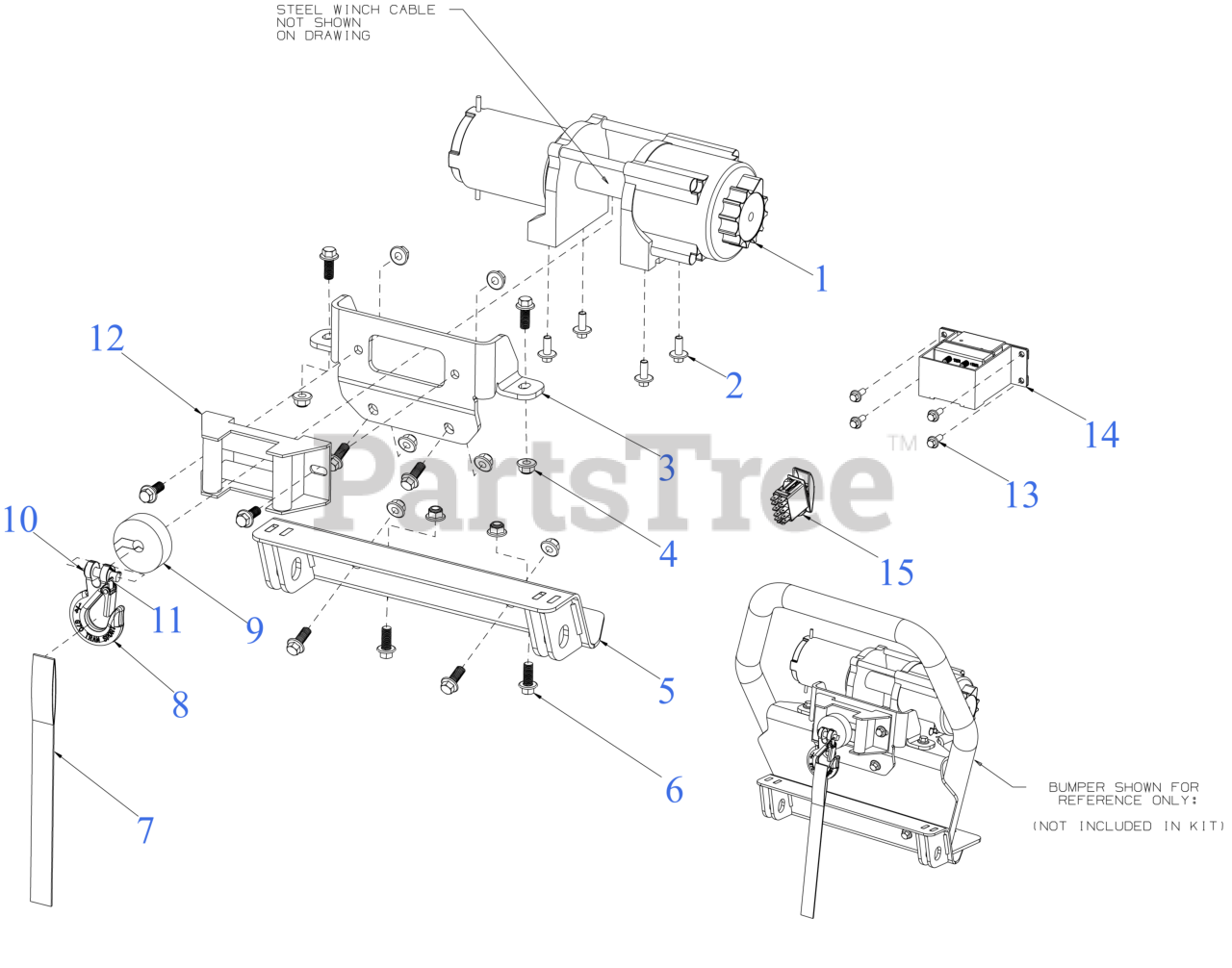

General Assembly Parts Diagram

  • Title

1

Cub Cadet 503-00881

WINCH 3500 LBS

$778.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 503-00042

HEXAGON FLANGE BOLT M8X20

$7.49

$

Usually ships in 3-6 days

0

3

BRKT:RLR

$

$

Not available

4

Cub Cadet 503-01375

LOCK NUT M10X1.25

$6.99

$

Usually ships in 3-6 days

0

5

BRKT:HGR:PLOW

$

$

Not available

6

Cub Cadet 503-00409

HEX FLANGE BOLT M10X1.25X20

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 503-00888

LATCH

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 503-00889A

LOAD HOOK

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 503-00900

PLASTIC CLASP

$30.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 503-00901

PIN 9.5X40

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 503-01882

PIN - COTTER 2X30

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 503-00893

WINCH GUIDE PULLEY

$87.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 503-00011

HEXAGON FLANGE BOLT M6X16

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 503-00890A

WINCH RELAY

$107.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 503-01700

SWITCH - WINCH

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 503-01858

CABLE-WINCH RELAY OUTLET

$129.99

$

Usually ships in 3-6 days

0

CABLE:GROUND LINE

$

$

Not available

Cub Cadet 39A70148100

WINCH KIT (M550/M750)

$658.99

$

Usually ships in 3-6 days

0
