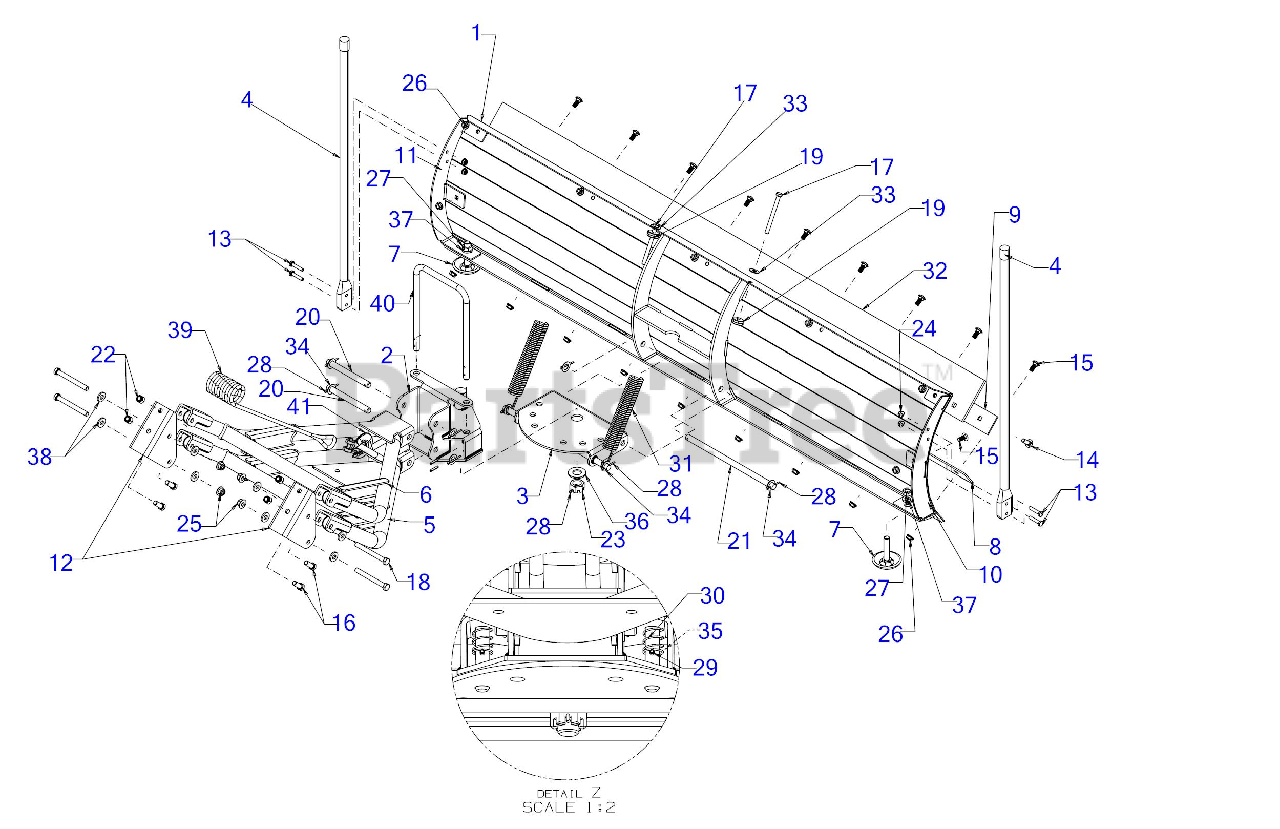

39A70047 (39A70047100) - Cub Cadet Utility Vehicle 58" Snow Blade Kit Replacement Parts Parts Diagram

Utility Vehicle 58" Snow Blade Kit

Replacement Parts Parts Diagram

  • Title

1

Cub Cadet 607-05142

58" BLADE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 607-05142-0637

58" BLADE ASSEMBLY - POWDER BLACK (0637)

$520.99

$

Usually ships in 3-6 days

0

$454.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 912-3048

HEX NUT
(Superseded to 712-3048)

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 689-00398

BLADE LIFT ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 689-00398-0637

BLADE LIFT ASSEMBL - POWDER BLACK (0637)

$197.99

$

Usually ships in 3-6 days

0

$156.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 689-00399

BLADE PIVOT ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 689-00399-0637

BLADE PIVOT ASSEMB - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 689-00503

BLADE GUIDE ROD

$92.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 689-00547

BOTTOM ARM ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 689-00547-0637

BOTTOM ARM ASSEMBL - POWDER BLACK (0637)

$172.99

$

Usually ships in 3-6 days

0

$156.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 689-00548

TOP ARM ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 689-00548-0637

TOP ARM ASSEMBLY - POWDER BLACK (0637)

$166.99

$

Usually ships in 3-6 days

0

$151.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-0650

BLADE SKID SHOE

Variations

Cub Cadet 703-0650-0637

Snow Skid Shoe - POWDER BLACK (0637)

$47.99

$

In Stock, Qty 10

0

$47.99

$

In Stock, Qty 10

0

8

Cub Cadet 703-08523

SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08523-0637

Blade Shave Plate - POWDER BLACK (0637)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-08523-4021

PLATE-BLADE SHAVE - CUB YELLOW 2 (4021)

$122.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-06598

58" BLADE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06598-0637

BLADE PLATE 58" - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 707-06639

BLADE GUIDE BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06639-0637

BLADE GUIDE BRACKE - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 707-06641

BLADE GUIDE BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06641-0637

BLADE GUIDE BRACKE - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 707-06669

MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-06669-0637

MOUNTING BRACKET - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0106

HEX SCREW 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

14

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1207

SCREW 5/16-18 x 3.50 GR5

$6.99

$

In Stock, only 4 left!

0

18

Cub Cadet 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 711-0509

INSERT SPRING

$60.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-06551

PIVOT ROD

$21.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-3402A

ROD .50 x 10.428"

$37.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0130

HEX NUT INS L-3/8-16

$3.99

$

In Stock, Qty 11

0

23

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 912-3048

HEX NUT
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 914-0470

COTTER PIN
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 715-04095

ROLL PIN

$5.49

$

In Stock, Qty 20+

0

30

Cub Cadet 732-04563

COMPRESSION SPRING

$5.49

$

In Stock, Qty 20+

0

31

Cub Cadet 732-3123

EXTENSION SPRING

$28.99

$

In Stock, only 4 left!

0

32

Cub Cadet 735-05172

58" BLADE TRIM

$67.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

34

Cub Cadet 936-0160

FLAT WASHER

$4.49

$

In Stock, Qty 9

0

35

Cub Cadet 936-0272

FLAT WASHER .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0315

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

37

Cub Cadet 936-0921

LOCK WASHER 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

38

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

39

Cub Cadet 946-05368

WINCH CABLE FOR SNOW PLOW 5/16"

$124.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-06597

HANDLE LOCK ROD

$58.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 789-00392

CLEVIS PIN HOOK

$83.99

$

Usually ships in 3-6 days

0
