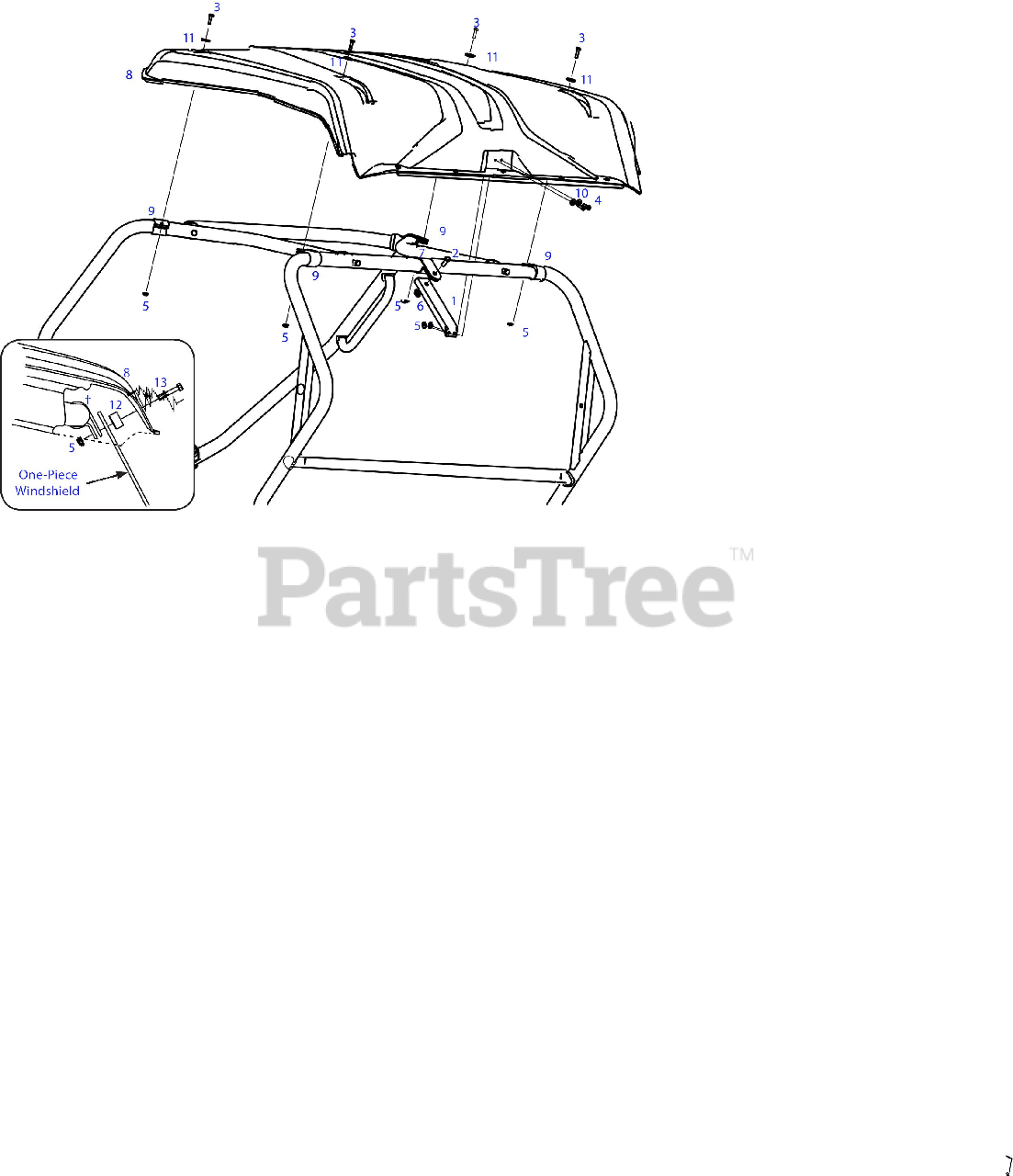

39A70046 (39A70046100) - Cub Cadet Utility Vehicle Canopy General Assembly Parts Diagram

Utility Vehicle Canopy

General Assembly Parts Diagram

  • Title

1

Cub Cadet 707-06662A-0637

Canopy Support Bracket

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0514

Screw 3/8-16 X 1 Gr5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0597

Screw 1/4-20 X1.00 Gr5

$3.99

$

In Stock, Qty 14

0

4

Cub Cadet 710-3015

Screw 1/4-20X.75 Gr5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04064

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04065

Nut

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 726-05095

Clamp

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-11528A

Roof

$603.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-11781

Clamp

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0173

Flat Washer .28 Id X .74 Od X .063

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 736-05192

Flat Washer .275 X 1.00 X .103

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 735-05147

Bumper

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04860C

Hex Flange Bolt 1/4-20 X 1.5

$3.99

$

Usually ships in 3-6 days

0

?

N/A

One-Piece Windshield Clamps

Note: Part of One-Piece Windshield Kit

$

$

Not available
