39A70032 (39A70032100) - Cub Cadet Utility Vehicle Raised Bed Gates att Raised Bed Gates Parts Diagram

Utility Vehicle Raised Bed Gates

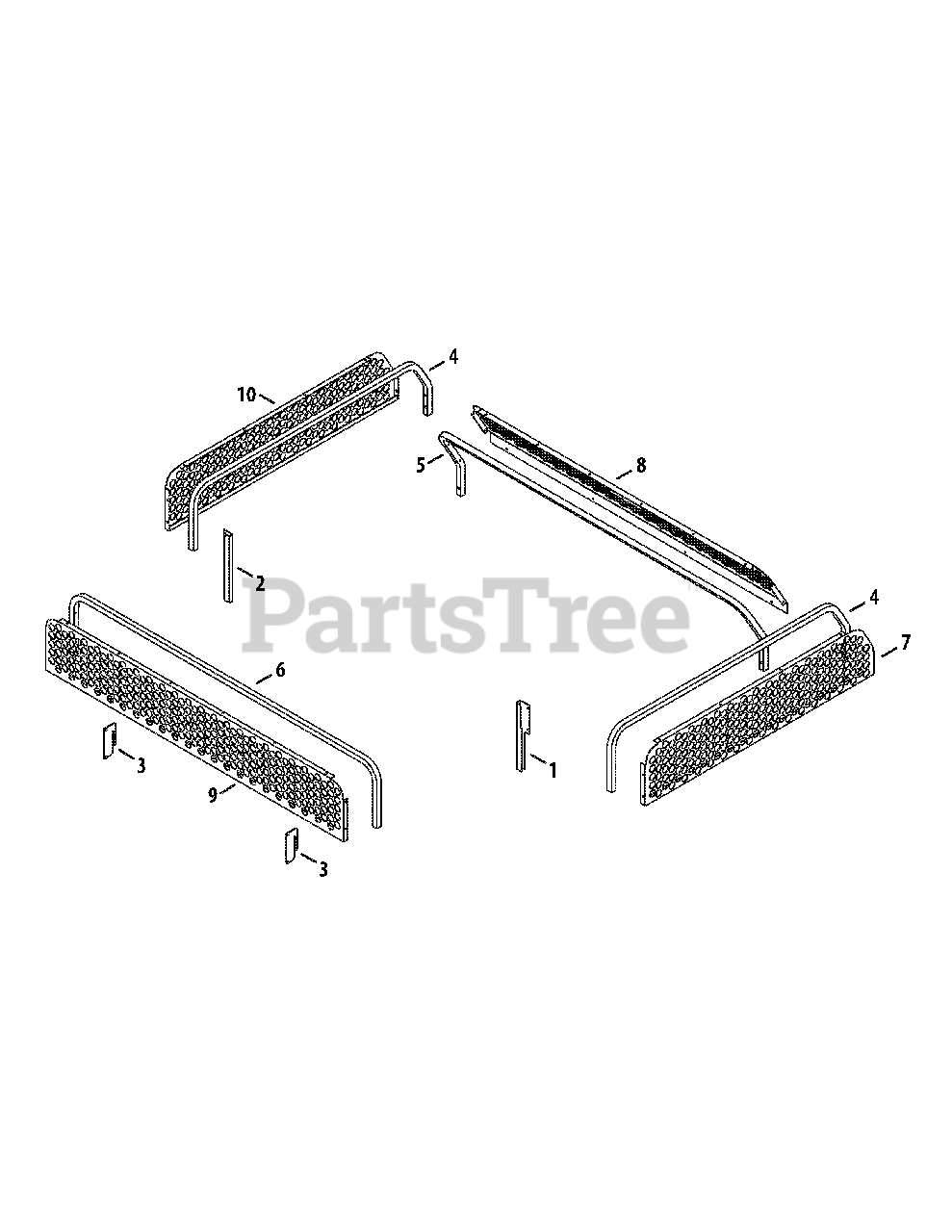

Raised Bed Gates Parts Diagram

  • Title

1

Cub Cadet AF-26670

Brace, Side Extension RH

$

$

Not available

2

Cub Cadet AF-26671

Brace, Side Extension LH

$

$

Not available

3

Cub Cadet AF-26677

Brace, Tailgate

$

$

Not available

4

Cub Cadet N/A

Frame, Upper Side

Note: Part not serviced separately, order whole good.

$

$

Currently unavailable

5

Cub Cadet N/A

Frame, Upper Front

Note: Part not serviced separately, order whole good.

$

$

Currently unavailable

6

Cub Cadet N/A

Frame, Tailgate

Note: Part not serviced separately, order whole good.

$

$

Currently unavailable

7

Cub Cadet AF-66604

Panel, Side RH

$

$

Not available

8

Cub Cadet AF-66605

Panel, Front

$

$

Not available

9

Cub Cadet AF-66610

Panel, Tailgate

$

$

Not available

10

Cub Cadet AF-66637

Panel, Side LH

$

$

Not available

Cub Cadet AF-43175

Hex Bolt, 1/4-20 x 1/2

Note: Not Shown

$

$

Not available

Cub Cadet AF-43648

Hex Bolt, 1/4-20 x 1-1/2

Note: Not Shown

$

$

Not available

Cub Cadet AF-43866

Hex Bolt, 1/4-20 x 5/8

Note: Not Shown

$

$

Not available

Cub Cadet AF-46071

Hex Bolt, 1/4-20 x 3-1/4

Note: Not Shown

$

$

Not available

Cub Cadet AF-46699

Hex Bolt, 1/4-20 x 2
(Superseded to 710-0501)

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet AF-47112

Screw, #10 x 1/2

Note: Not Shown

$

$

Not available

Cub Cadet AF-47189

Nut, 1/4-20, Hex Nylock
(Superseded to 712-0324)

Note: Not Shown

$3.99

$

In Stock, Qty 16

0

Cub Cadet 936-0142

Washer, .281 x .50 x .063
(Superseded to 736-0142)

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

Cub Cadet AF-C9M5732

Pop Rivet, 3/16 SD 66 BS ZY

Note: Not Shown

$5.99

$

Usually ships in 3-6 days

0
