39A70027 (39A70027100) - Cub Cadet Utility Vehicle Hard Door Assembly att2 Right Door Assembly Parts Diagram

Utility Vehicle Hard Door Assembly

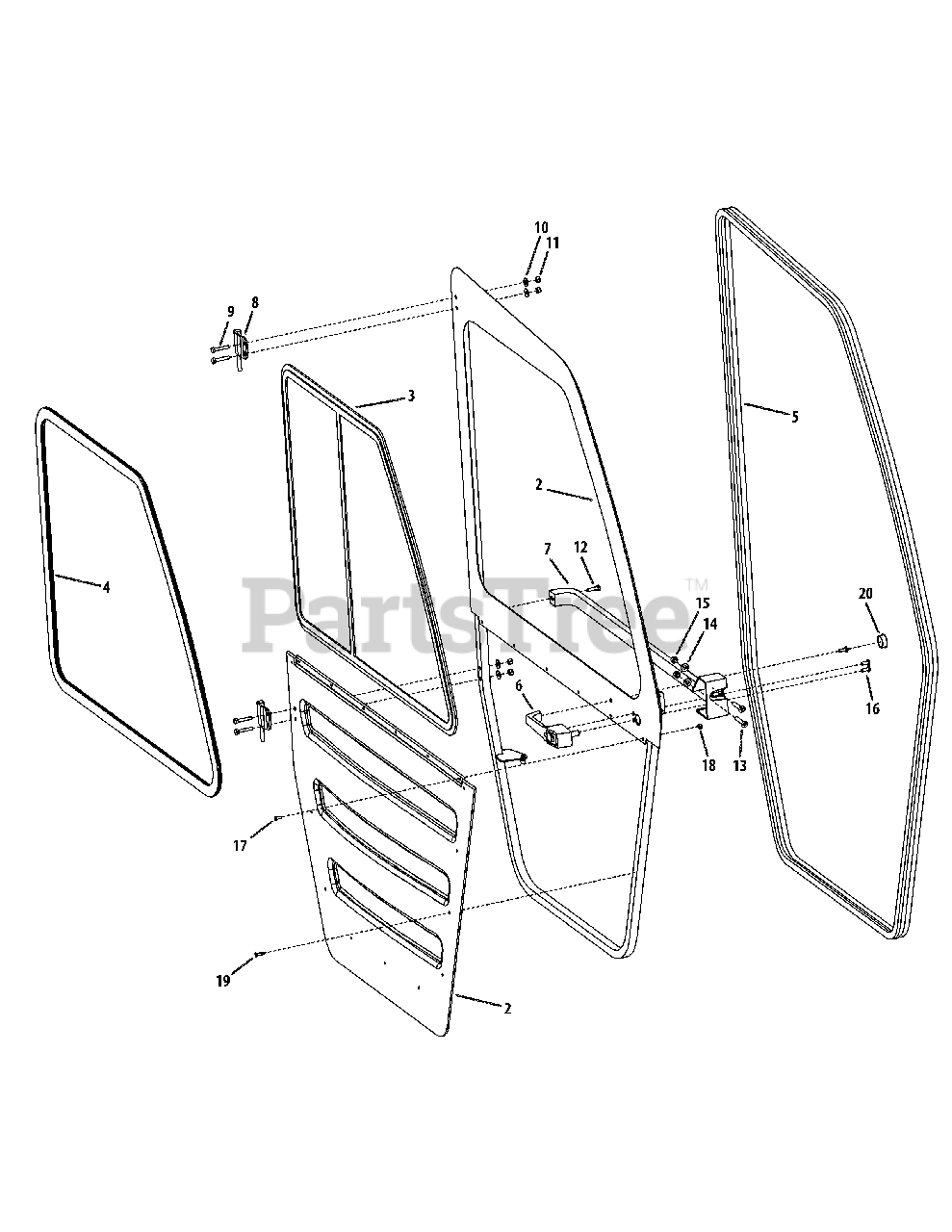

Right Door Assembly Parts Diagram

  • Title

2

Cub Cadet CI-8SV-VL7R-B4

Door Frame with lower Panel, RH

$

$

Not available

3

Cub Cadet CI-9SW-CCVR

Sliding Window, Temp. Glass

$598.99

$

Usually ships in 3-6 days

0

4

Cub Cadet CI-9SV-PR10-10

Window Mounting Rubber - 10'

$

$

Not available

5

Cub Cadet CI-9SV-PR41-15

1-1/2" Side Bulb & 2 Wipers - 15'

$

$

Not available

6

Cub Cadet CI-9SV-OHRL

Outside Handle (Set Of 2)

$

$

Not available

7

Cub Cadet CI-9SV-DL02

Door Latch RH - Non Locking

$262.99

$

Usually ships in 3-6 days

0

8

Cub Cadet CI-9SV-HSLP

Tube Frame Hinge, RH

$77.99

$

Usually ships in 3-6 days

0

9

Hex Bolt, 1/4-20 x 1 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

10

Washer, 1/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

11

Locknut, 1/4-20

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

12

Hex Bolt, 1/4-20 x 3/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

13

Hex Bolt, 5/16-18 x 1 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

14

Washer, 5/16

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

15

Locknut, 5/16-18

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

16

Hex Bolt, M6 x 12mm

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

17

Hex Bolt, 10-32 x 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

18

Locknut, 10-32

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

19

Screw, #10 x 3/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

20

Hole Plug, 1"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

Cub Cadet CI-VL-DRHWK

Hardware Kit

Note: Not Shown Incl. Ref No. 9-20

$

$

Not available
