39A70027 (39A70027100) - Cub Cadet Utility Vehicle Hard Door Assembly att Right Door Assembly Parts Diagram

Utility Vehicle Hard Door Assembly

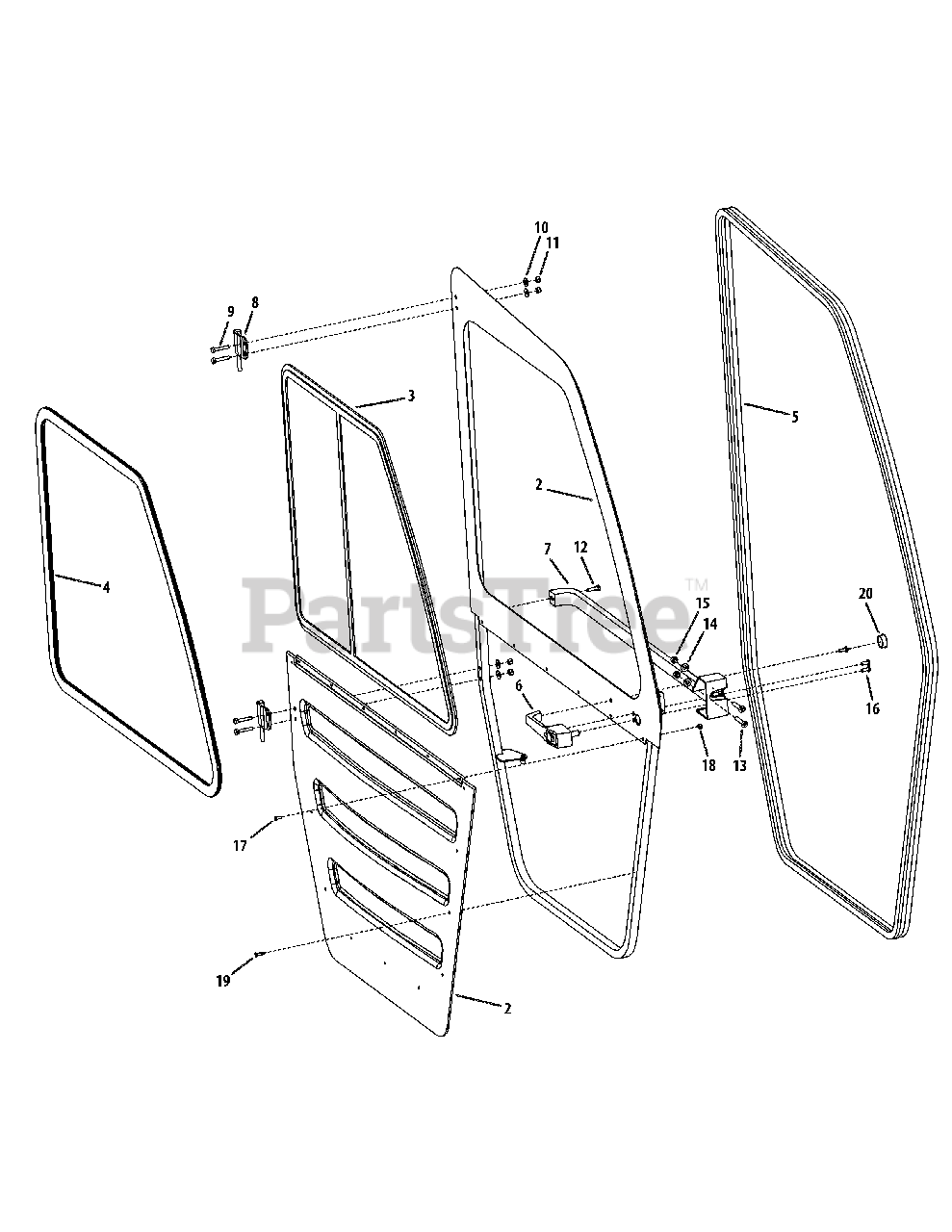

Right Door Assembly Parts Diagram

  • Title

2

Cub Cadet CI-8SV-VL7R-B4

Door Frame with lower Panel, RH

$

$

Not available

3

Cub Cadet CI-9SW-CCVR

Sliding Window, Temp. Glass

$598.99

$

Usually ships in 3-6 days

0

4

Cub Cadet CI-9SV-PR10-10

Window Mounting Rubber - 10’

$

$

Not available

5

Cub Cadet CI-9SV-PR41-15

1-1/2" Side Bulb & 2 Wipers - 15’

$

$

Not available

6

Cub Cadet CI-9SV-OHRL

Outside Handle (Set Of 2)

$

$

Not available

7

Cub Cadet CI-9SV-DL02

Door Latch RH - Non Locking

$262.99

$

Usually ships in 3-6 days

0

8

Cub Cadet CI-9SV-HSLP

Tube Frame Hinge, RH

$77.99

$

Usually ships in 3-6 days

0

9

Cub Cadet N/A

Hex Bolt, 1/4-20 x 1 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

10

Cub Cadet N/A

Washer, 1/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

11

Cub Cadet N/A

Locknut, 1/4-20

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

12

Cub Cadet N/A

Hex Bolt, 1/4-20 x 3/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

13

Cub Cadet N/A

Hex Bolt, 5/16-18 x 1 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

14

Cub Cadet N/A

Washer, 5/16

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

15

Cub Cadet N/A

Locknut, 5/16-18

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

16

Cub Cadet N/A

Hex Bolt, M6 x 12mm

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

17

Cub Cadet N/A

Hex Bolt, 10-32 x 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

18

Cub Cadet N/A

Locknut, 10-32

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

19

Cub Cadet N/A

Screw, #10 x 3/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

20

Cub Cadet N/A

Hole Plug, 1"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

Cub Cadet CI-VL-DRHWK

Hardware Kit

Note: Not Shown Incl. Ref No. 9-20

$

$

Not available
