39A70027 (39A70027100) - Cub Cadet Utility Vehicle Hard Door Assembly att Left Door Components Parts Diagram

Utility Vehicle Hard Door Assembly

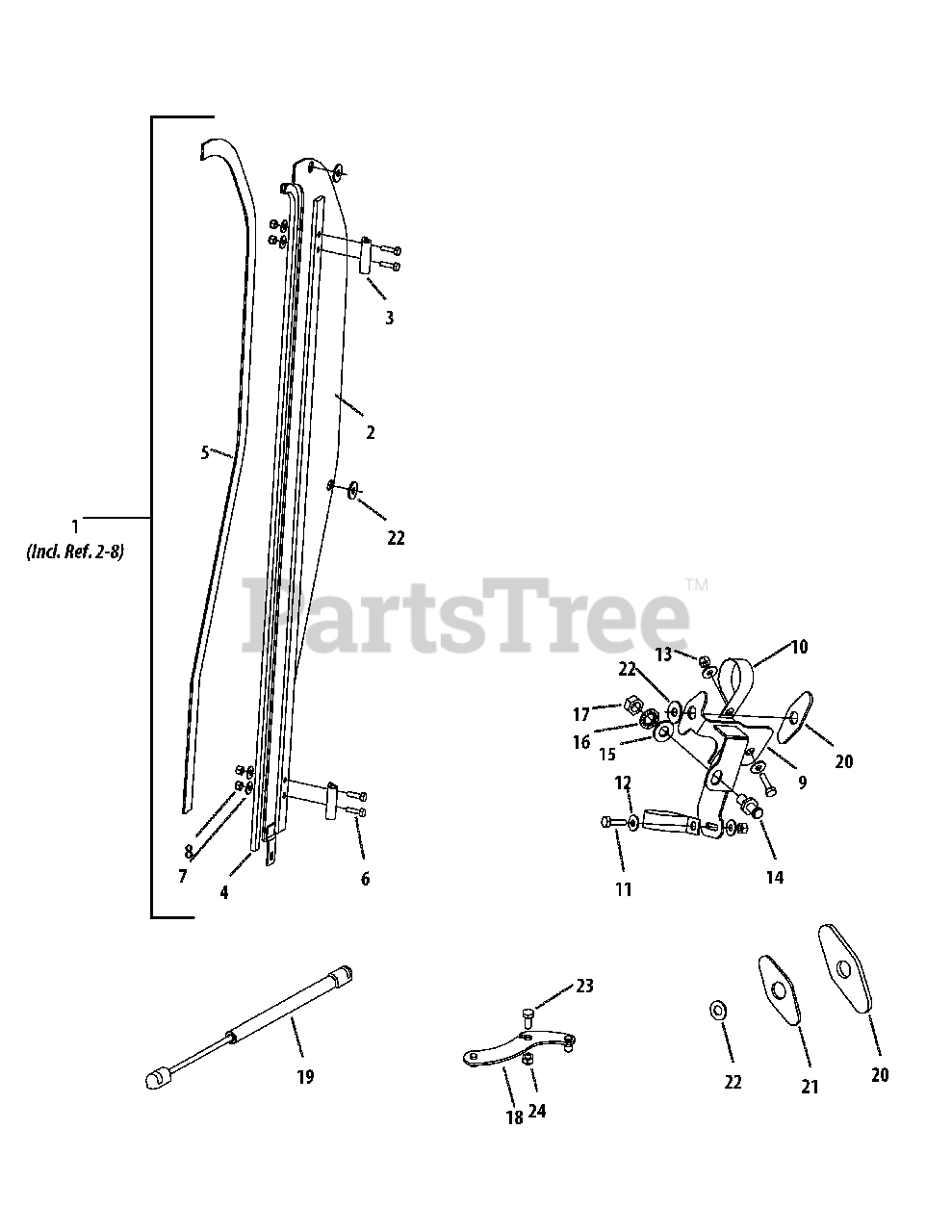

Left Door Components Parts Diagram

  • Title

1

Cub Cadet CI-8SVVLDRHPLB4

Door Hng. Panel-L, (Incl. Ref. 2-8)

$261.99

$

Usually ships in 3-6 days

0

2

Cub Cadet N/A

Hinge Panel

$

$

Currently unavailable

3

Cub Cadet CI-9SV-HSLP

Tube Frame Hinge, 10 Gauge

$77.99

$

Usually ships in 3-6 days

0

4

Cub Cadet CI-9SV-PRO1-10

Standard Trim Lock, 1/8" Grip

$

$

Not available

5

Cub Cadet CI-9SV-PR39-5

Foam Seal, 1" X 1/8

$67.99

$

Usually ships in 3-6 days

0

6

Cub Cadet N/A

Hex Bolt, 1/4-20 x 1"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

7

Cub Cadet N/A

Washer, 1/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

8

Cub Cadet N/A

Lock Nut, 1/4-20

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

9

Cub Cadet CI-8SV-VLDSL-B4

Door Striker - L

$

$

Not available

10

Cub Cadet N/A

P Clamp

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

11

Cub Cadet N/A

Hex Bolt, 1/4-20 x 1"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

12

Cub Cadet N/A

Washer, 1/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

13

Cub Cadet N/A

Lock Nut, 1/4-20

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

14

Cub Cadet CI-9SV-DSTR

Striker Bolt For Rotary Latch

$112.99

$

Usually ships in 3-6 days

0

15

Cub Cadet N/A

Washer, 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

16

Cub Cadet N/A

Lock Washer, 1/2"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

17

Cub Cadet N/A

M10 Nut

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

18

Cub Cadet CI-8SV-VLDSMLB4

Door Frame Spring Mount, LH

$

$

Not available

19

Cub Cadet CI-9SV-GS02Q

Gas Spring (12") W/Quick Release
(Superseded to CI-9SV-GS02QP)

$202.99

$

Usually ships in 3-6 days

0

20

Cub Cadet CI-9FR-CCVDR

Rubber Door Filler, ROPS

$

$

Not available

21

Cub Cadet CI-8SV-VLDRW-B4

S/M 2.75 X 1.25 Door Washer

$

$

Not available

22

Cub Cadet N/A

Washer, 3/8"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

23

Cub Cadet N/A

Hex Bolt, 5/16-18 x 3/4"

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

24

Cub Cadet N/A

Locknut, 5/16-18

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Currently unavailable

Cub Cadet CI-VL-DRHWK

Door Hardware Kit

Note: Not Shown

$

$

Not available

Cub Cadet CI-9SV-DLO1H

Keys-Cab Door (Set Of 2) Curtis

Note: Not Shown

$

$

Not available
