39A70026 (39A70026100) - Cub Cadet Utility Vehicle Roof & Rear Panel Kit att2 Roof & Rear Panel Kit Parts Diagram

Utility Vehicle Roof & Rear Panel Kit

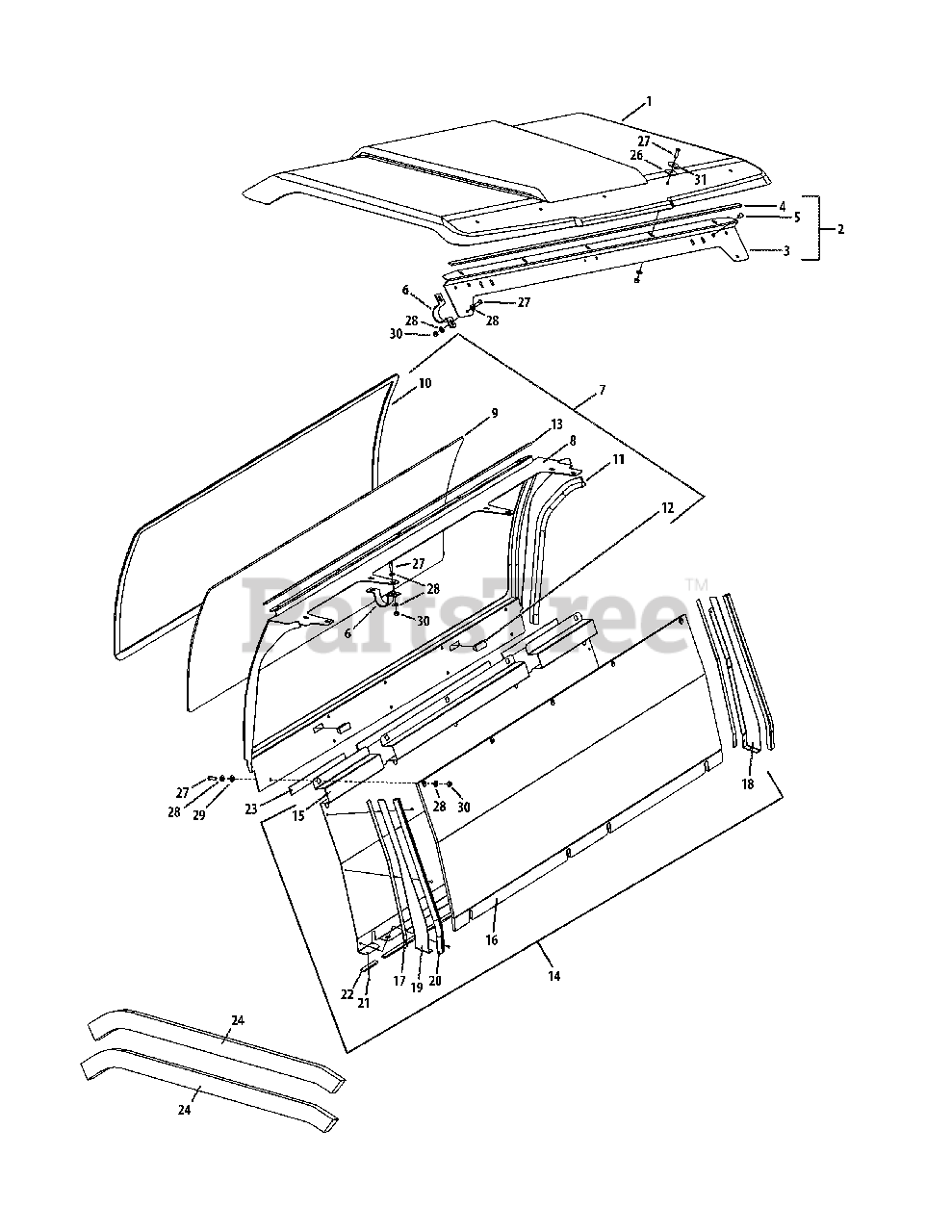

Roof & Rear Panel Kit Parts Diagram

  • Title

1

Cub Cadet CI-8SV-VL01-B4

Roof Assembly Cub Cadet Volunteer

$956.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CI-8SV-VL03-B4

Roof Support Front (Includes Ref. 3-5)

$203.99

$

Usually ships in 3-6 days

0

3

Front Roof Mount

$

$

Not available

4

Cub Cadet CI-9SV-PR20-10

1/2" V-Groove Weatherseal

$121.99

$

Usually ships in 3-6 days

0

5

Cub Cadet CI-9SV-DP01

Dome Plug, 7/16", Heyco #2633 "Small" (Bag - 15)

$

$

Not available

6

Cub Cadet CI-8SV-UMB-B4

Upper Mounting Bracket-Rev C (Set Of 6)

$76.99

$

Usually ships in 3-6 days

0

7

Cub Cadet CI-8SV-VLRP-B4

Rear Panel Assembly - Txtrd. Black (Incl. Ref. 8-13)

$1082.99

$

Usually ships in 3-6 days

0

8

Rear Panel Frame

Note: Order Ref No. 7

$

$

Not available

9

Rear Window

Note: Order Ref No. 7

$

$

Not available

10

Cub Cadet CI-9SV-PR10-20

Window Mounting Rubber, 20'

$

$

Not available

11

Cub Cadet CI-9SV-PRO2-15

Standard Bulb Rubber (5/8")

$

$

Not available

12

2" x 3/4" Hole Plug

Note: Order Ref No. 7

$

$

Not available

13

Cub Cadet CI-9SV-PR20-10

1/2" V-Groove Weatherseal

$121.99

$

Usually ships in 3-6 days

0

14

Cub Cadet CI-8SVVLRPBOTB4

Rear Panel Bottom Assembly (Includes Ref. 15-22)

$560.99

$

Usually ships in 3-6 days

0

15

Rear Panel Bottom

Note: Order Ref No. 14

$

$

Not available

16

Foam Panel

Note: Order Ref No. 14

$

$

Not available

17

1/2" Foam Tape

Note: Order Ref No. 14

$

$

Not available

18

Rear Panel Bottom Left Side

Note: Order Ref No. 14

$

$

Not available

19

Rear Panel Bottom Right Side

Note: Order Ref No. 14

$

$

Not available

20

Cub Cadet CI-9SV-PR17-5

Side Bulb Rubber, 3/4"

$67.99

$

Usually ships in 3-6 days

0

21

Rivet

Note: Order Ref No. 14

$

$

Not available

22

Cub Cadet CI-9SV-PR20-10

1/2" V-Groove Weatherseal

$121.99

$

Usually ships in 3-6 days

0

23

Cub Cadet CI-9SV-PR39-5

Foam Seal, 1" X 1/8

$67.99

$

Usually ships in 3-6 days

0

24

Cub Cadet CI-9SV-PR40-05

Expand-A-Foam, 2"
(Superseded to CI-9SV-PR40-5)

$148.99

$

Usually ships in 3-6 days

0

26

Hardware Kit - 5/16 Foam Rubber Washer

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

27

Hardware Kit - 5/16-18 x 1" Bolt

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

28

Hardware Kit - 5/16" Steel Washer

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

29

Hardware Kit - 5/16" Nylon Washer

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

30

Hardware Kit - 5/16-18 Locknut

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

31

Hardware Kit - Fender Washer

Note: Part Not Serviced Separately, Please purchase Hardware Kit or locally

$

$

Not available

Cub Cadet CI-VL-RFRPHWK

Hardware Kit-Roof & Rear Panel Volunteer

Note: Incl. Ref No. 26-31 Not Shown

$

$

Not available
