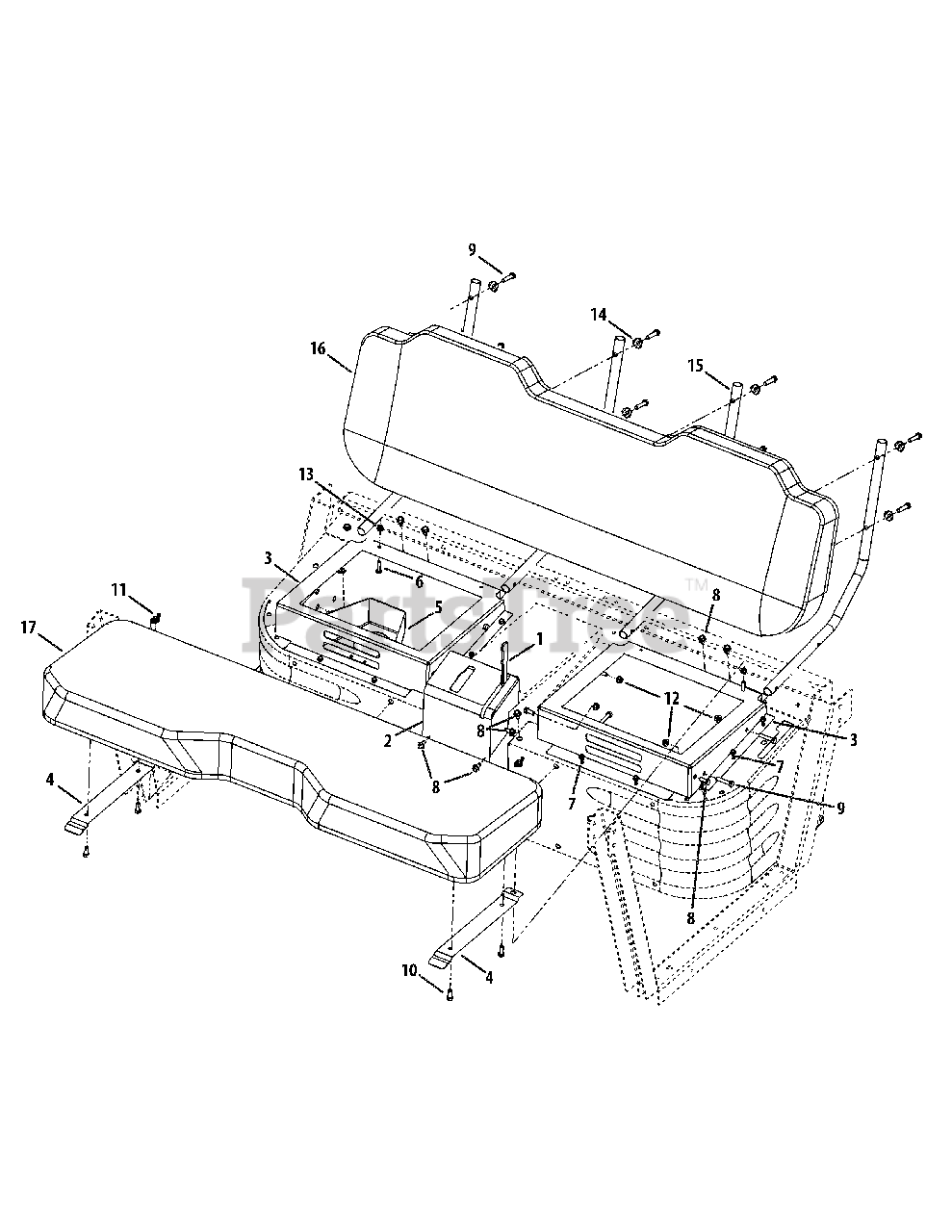

39A70003 (39A70003100) - Cub Cadet Utility Vehicle Bench Seat & Shifter Cover Bench Seat Parts Diagram

Utility Vehicle Bench Seat & Shifter Cover

Bench Seat Parts Diagram

  • Title
1

Cub Cadet 607-04287

Lvr Asm, Diff Lock, Bench Seat
(Superseded to 607-04287-0637)

Variations

Cub Cadet 607-04287-0637

LEVER ASSY-DIFF LOCK - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-05059

Cvr, Shft, Bench
(Superseded to 707-05059A-0637)

Variations

Cub Cadet 707-05059-0637

COVER-SHIFT BENCH - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 707-05089

Plt., Seat, Bench

Variations

Cub Cadet 707-05089-0637

PLATE-SEAT BENCH - POWDER BLACK (0637)

$154.99

$

Usually ships in 3-6 days

0

$143.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-05105

Brkt., Mt., Seat, Bench
(Superseded to 707-05105-0637)

Variations

Cub Cadet 707-05105-0637

BRACKET-MOUNT SEAT - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-05108

Brkt., Shld., Heat, Bench
(Superseded to 707-05108A-0637)

$35.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0597

Hhcs., 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

7

Cub Cadet 710-0599

Scr., TT, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0607

Scr., TT, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0805

Hhcs., 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3008

Hhcs., 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0397

Nut, Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Nut, Flglk., 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

Nut, Flglk., 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0451

Wash., Sdl., .320 x .93 x .060

$4.49

$

In Stock, Qty 7

0

15

Cub Cadet 750-04857

Tube, Mt., Seat, Back

$60.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 757-04067

Seat, Back, Bench

$280.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 757-04068

Seat, Bench, Bottom

$356.99

$

Usually ships in 3-6 days

0
