39988 - Toro 48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 280000001 - 280999999) (2008) PARKING BRAKE ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

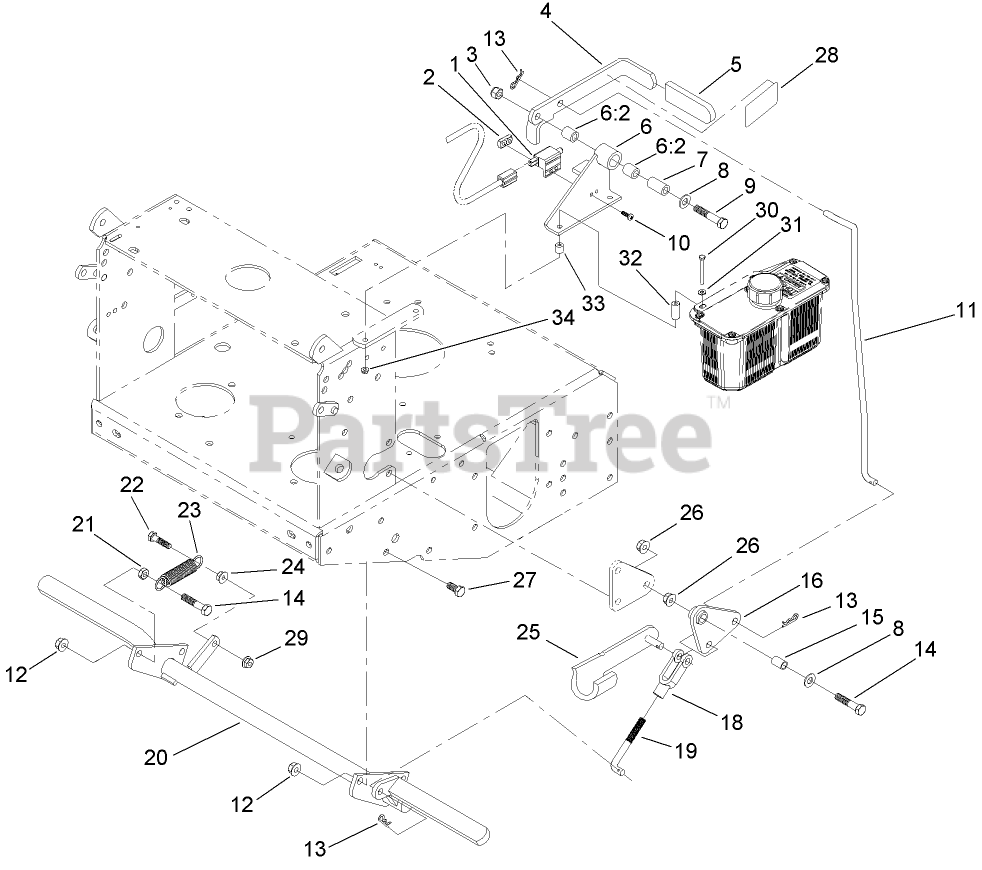

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

2

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

4

Toro 1-412501-03

Lever-Parkbrake
(Superseded to 116-1725-03)

$26.99

$

Usually ships in 3-6 days

0

5

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

6

Toro 1-414504

Bracket ASM

$90.99

$

Usually ships in 3-6 days

0

6:2

Toro 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

7

Toro 1-413344

Bushing-Pivot

$19.99

$

In Stock, only 2 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

9

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 1-413496

Linkage-Upper

$60.99

$

Usually ships in 3-6 days

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

13

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-303548

Bushing-Plastic

$5.49

$

In Stock, only 2 left!

0

16

Toro 1-414508

Bellcrank ASM

$62.99

$

Usually ships in 3-6 days

0

18

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

19

Toro 1-413489

Linkage-Lower

$22.99

$

In Stock, only 1 left!

0

20

Toro 103-2004-03

BRAKE
(Superseded to 116-9964)

$174.99

$

Usually ships in 3-6 days

0

21

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

23

Toro 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 14

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 103-2103

DECAL-BRAKE, PARK

$6.49

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

31

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 103-2191

Spacer

$7.99

$

Usually ships in 3-6 days

0

33

Toro 1-323549

SPACER

$13.99

$

Usually ships in 3-6 days

0

34

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0
