39938 - Toro 48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 314000001 - 314999999) (2014) DECK ENGAGEMENT ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

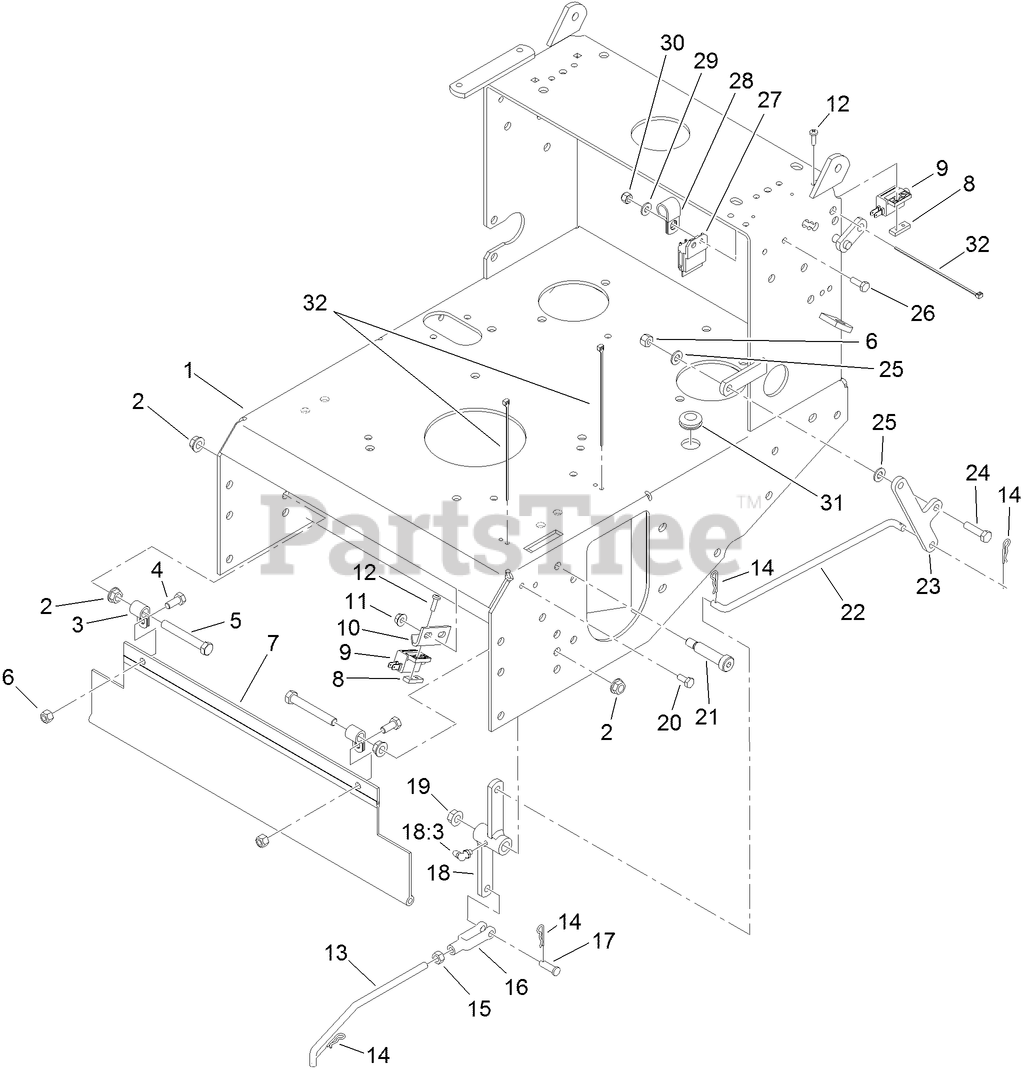

DECK ENGAGEMENT ASSEMBLY Parts Diagram

  • Title

$698.99

$

Usually ships in 3-6 days

0

2

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

3

Toro 1-413510

Clip-Loom

$2.99

$

In Stock, Qty 13

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

7

Toro 103-2056

Shield-Drag

$61.99

$

In Stock, Qty 8

0

8

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

9

Toro 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

10

Toro 1-323213

Bracket-Switch, Blade

$31.99

$

Usually ships in 3-6 days

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

12

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-323174

ARM-LINKAGE, ASSIST

$28.99

$

Usually ships in 3-6 days

0

14

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Toro 3219-2

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

16

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

17

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

18

Toro 1-322108

Bellcrank ASM

$167.99

$

Usually ships in 3-6 days

0

18:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

19

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

$17.99

$

In Stock, only 2 left!

0

22

Toro 1-323172

Linkage-Engage, Blade

$19.99

$

Usually ships in 3-6 days

0

23

Toro 116-1737-01

Bellcrank

$11.99

$

Usually ships in 3-6 days

0

24

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 1-323430

MODULE-INTERLOCK

$135.99

$

In Stock, only 1 left!

0

28

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

29

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

32

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
