39938 - Toro 48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 312000001 - 312999999) (2012) ENGINE AND EXHAUST ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

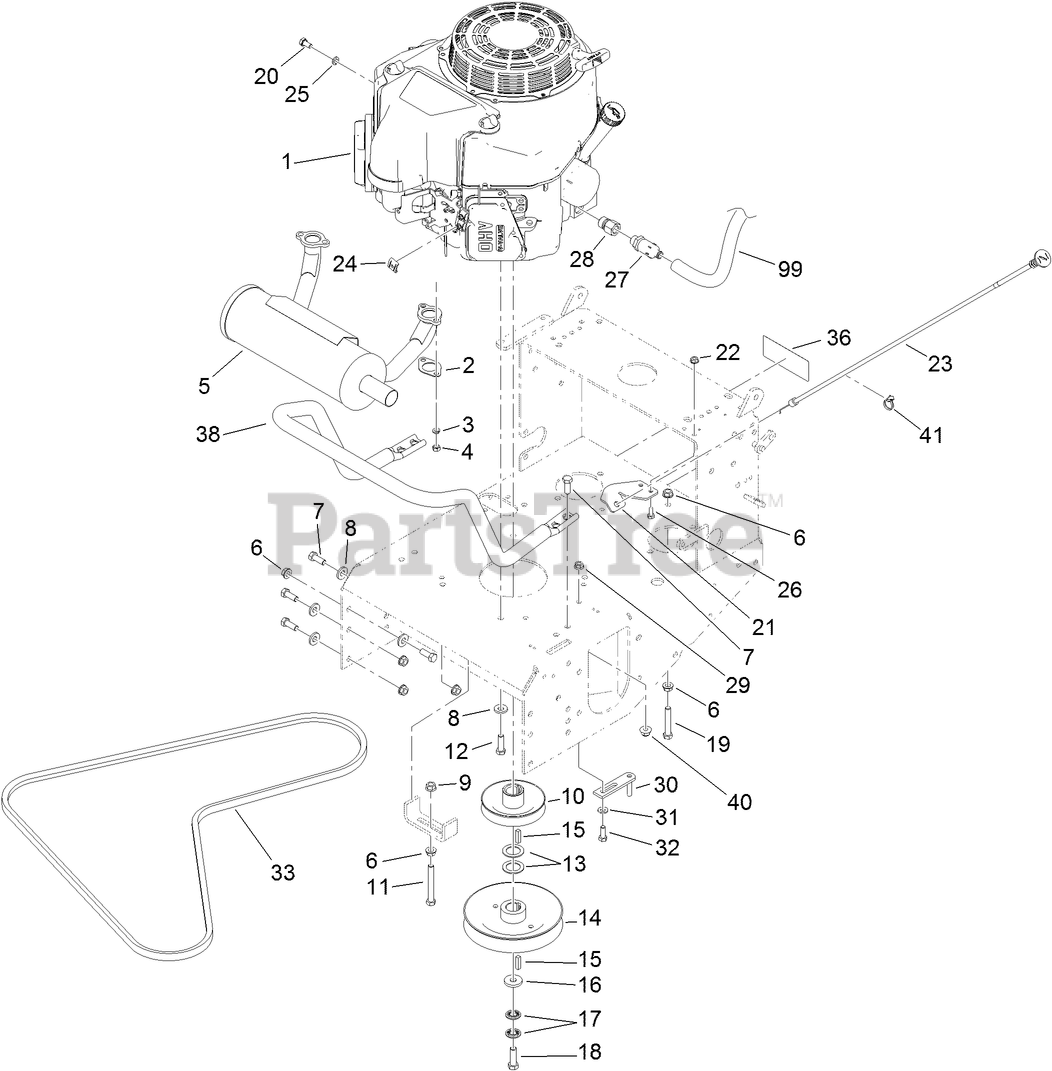

ENGINE AND EXHAUST ASSEMBLY Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FS481V-AS06

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FS481V-AS06

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0

3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

$1.99

$

In Stock, Qty 20+

0

5

Toro 116-3734

MUFFLER-HORIZONTAL, OFFSET

$325.99

$

Usually ships in 3-6 days

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 1-653035

PULLEY

$68.99

$

In Stock, only 1 left!

0

11

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

14

Toro 110-4890

PULLEY ASM

$179.99

$

Usually ships in 3-6 days

0

15

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

17

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

18

Toro 116-3702

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

19

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

21

Toro 103-1797-01

Bracket-Cable, Choke

$9.49

$

Usually ships in 3-6 days

0

22

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

23

Toro 103-1796

Cable-Choke

$44.99

$

In Stock, Qty 6

0

24

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0

28

Toro 103-1966

Adapter

$18.99

$

In Stock, only 3 left!

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

31

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 110-0543

BELT-V

$158.99

$

In Stock, only 2 left!

0

36

Toro 98-0776

DECAL-CAUTION

$18.99

$

Usually ships in 3-6 days

0

38

Toro 116-6278-03

GUARD-MUFFLER

$

$

Not available

40

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

41

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

99

Toro 103-1964

HOSE-DRAIN, OIL

$11.99

$

In Stock, only 2 left!

0
