39938 - Toro 48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 311000001 - 311999999) (2011) PUMP DRIVE AND ENGINE PULLEY ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

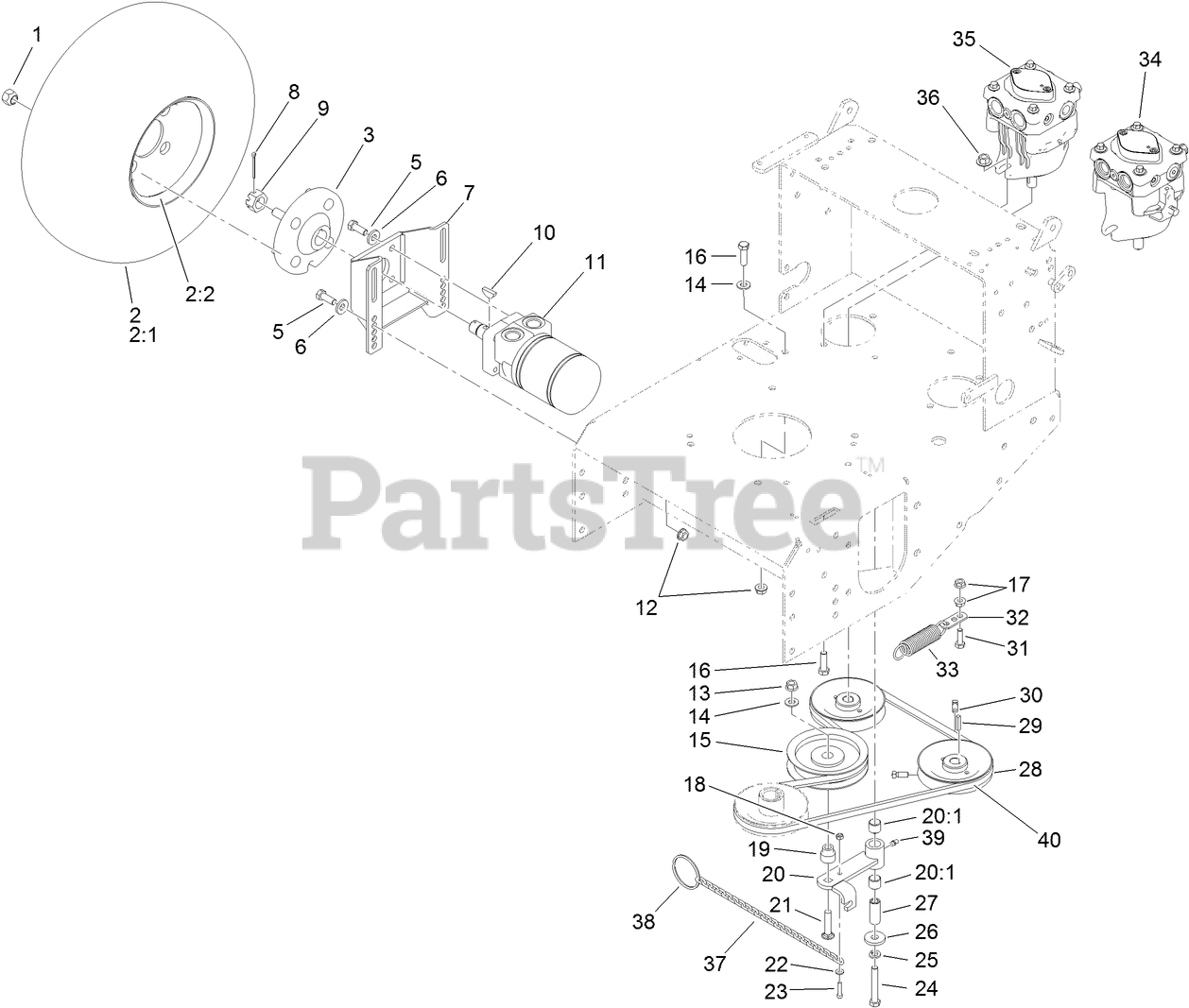

PUMP DRIVE AND ENGINE PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

2

Toro 1-613263

WHEEL AND TIRE ASM

$195.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-613264

TIRE-TURFMASTER

$152.99

$

Usually ships in 3-6 days

0

2:2

Toro 1-603715

Wheel-Rim
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

3

Toro 112-9049

WHEEL HUB ASM

$188.99

$

In Stock, only 1 left!

0

5

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

6

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

7

Toro 1-402062-01

MOUNT-MOTOR

$183.99

$

Usually ships in 3-6 days

0

8

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

9

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

10

Toro 1-807019

Key-Woodruff

$18.99

$

In Stock, only 2 left!

0

11

Toro 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

15

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

20

Toro 1-602521

Idler Arm ASM

$115.99

$

Usually ships in 3-6 days

0

20:1

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

21

Toro 3231-29

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

22

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-809069

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

24

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

25

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

26

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

27

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

28

Toro 1-413010

SHEAVE ASM

$50.99

$

In Stock, only 2 left!

0

29

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

30

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 8

0

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-603801

Anchor-Spring

$21.99

$

Usually ships in 3-6 days

0

33

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

34

Toro 116-0942

LH HYD PUMP ASM

$1115.99

$

Usually ships in 3-6 days

0

35

Toro 116-0943

RH HYD PUMP ASM

$1115.99

$

Usually ships in 3-6 days

0

36

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

37

Toro 1-323365

Chain-Link, Twist

$17.99

$

In Stock, only 1 left!

0

38

Toro 1-323366

Ring-Split

$6.49

$

In Stock, only 2 left!

0

39

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

40

Toro 106-2740

V-BELT

$61.99

$

In Stock, only 1 left!

0
