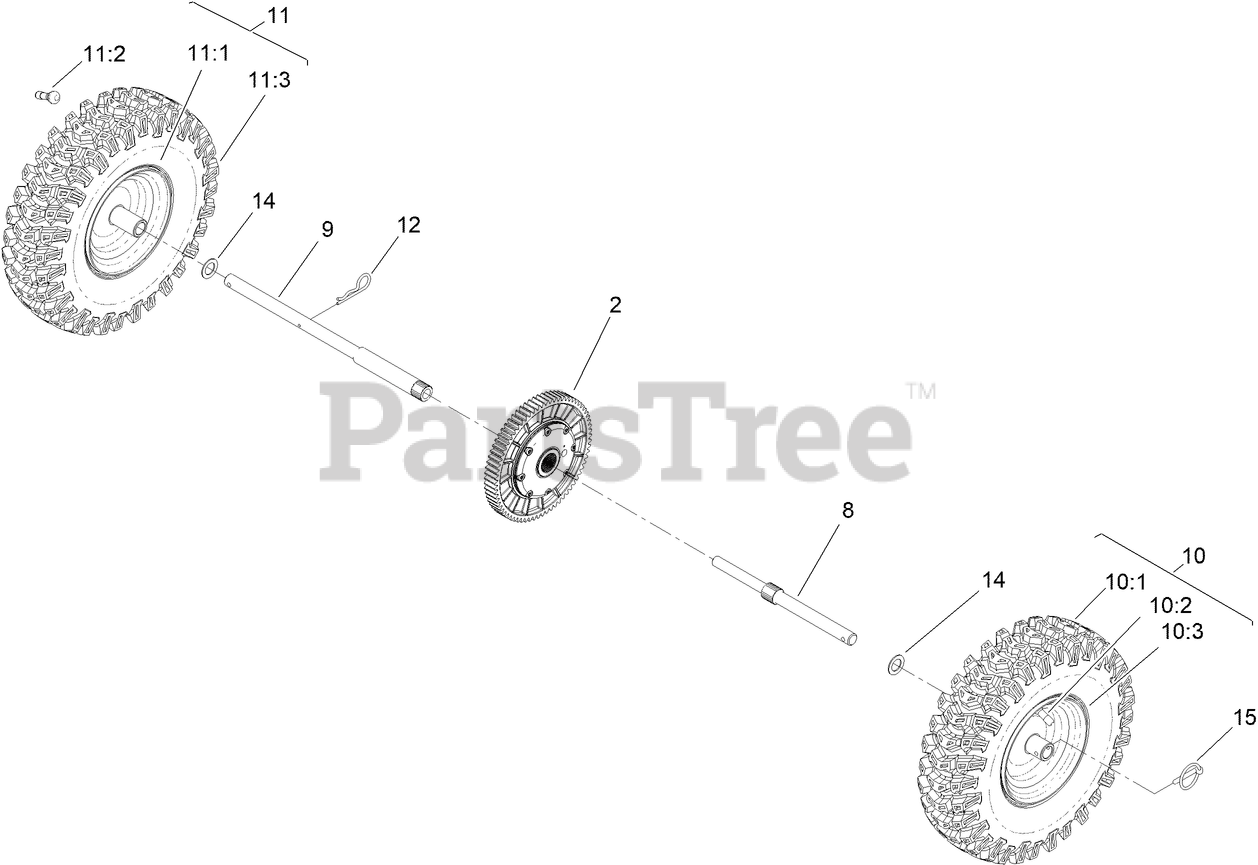

39926 (e 26) - Toro 26" Power Max 60V Snow Thrower (SN: 415000000 - 416422804) Transmission Assembly Parts Diagram

26" Power Max 60V Snow Thrower

Transmission Assembly Parts Diagram

  • Title

2

Toro 140-3747

TRANSMISSION-GT, DI200

$95.98

$

Usually ships in 5-8 days

0

8

Toro 140-3746

AXLE-LT, CTS

$80.99

$

Usually ships in 3-6 days

0

9

Toro 140-3742

AXLE-RT, CTS

$90.99

$

Usually ships in 3-6 days

0

10

Toro 138-3660

LH WHEEL AND TIRE ASM

$116.99

$

Usually ships in 3-6 days

0

10:1

Toro 138-3669

WHEEL (15X4 TIRE)

$43.99

$

Usually ships in 3-6 days

0

10:2

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.49

$

In Stock, Qty 9

0

10:3

Toro 138-3668

TIRE

$84.99

$

Usually ships in 3-6 days

0

11

Toro 138-3659

RH WHEEL AND TIRE ASM

$118.99

$

Usually ships in 3-6 days

0

11:1

Toro 138-3669

WHEEL (15X4 TIRE)

$43.99

$

Usually ships in 3-6 days

0

11:2

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.49

$

In Stock, Qty 9

0

11:3

Toro 138-3668

TIRE

$84.99

$

Usually ships in 3-6 days

0

12

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, Qty 7

0

14

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

15

Toro 107-3039

KLIK PIN ASM

$11.99

$

In Stock, only 2 left!

0
