39915 T (e 24) - Toro 24" SnowMaster 60V Snow Thrower (SN: 400000000 - 999999999) Main Frame Assembly Parts Diagram

24" SnowMaster 60V Snow Thrower

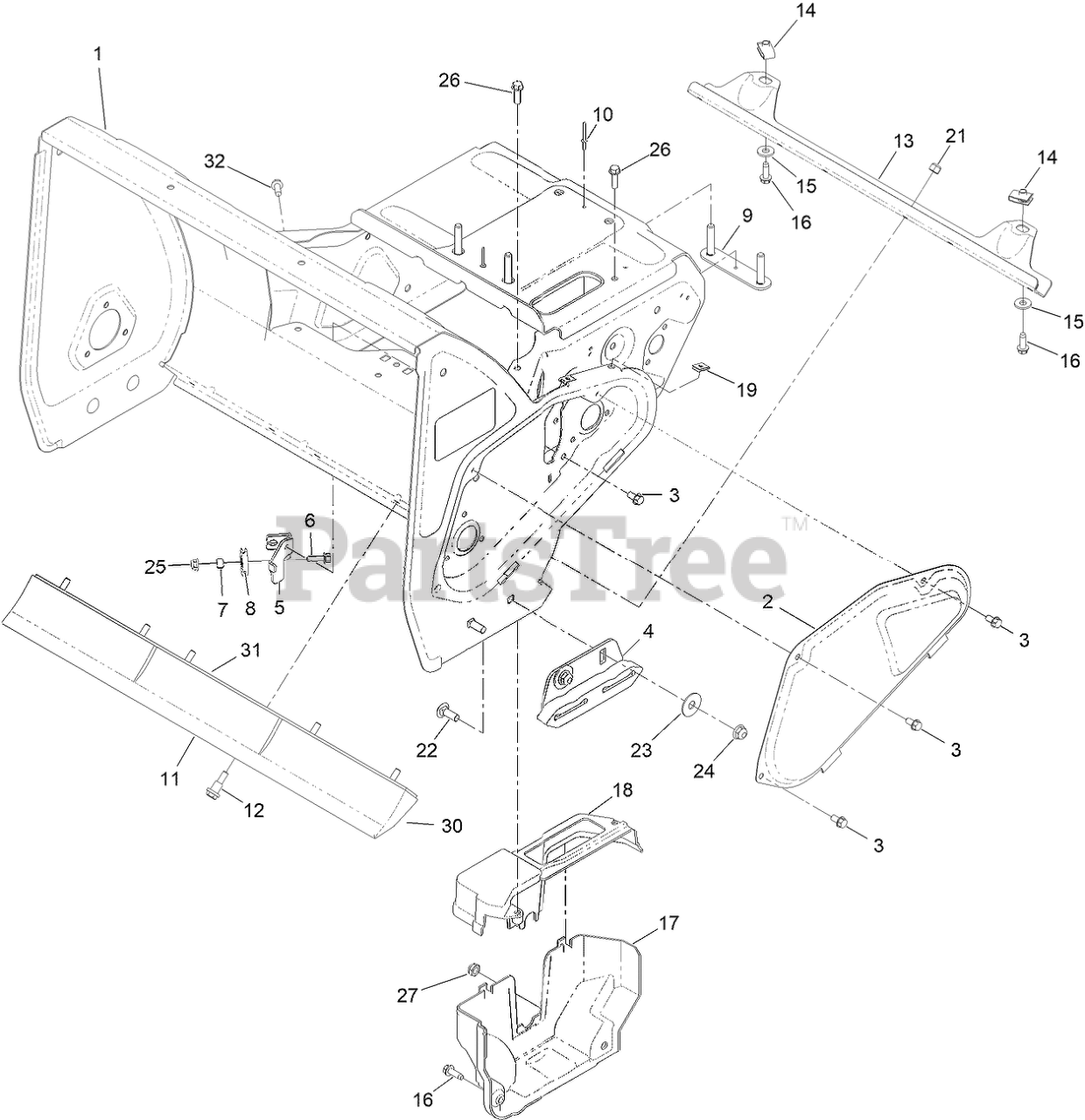

Main Frame Assembly Parts Diagram

  • Title

1

Toro 147-9466

FRAME ASM

$326.99

$

Usually ships in 0 days

0

2

Toro 130-9581-01

COVER-BELT

$14.99

$

Usually ships in 3-6 days

0

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 130-9619

SKID ASM

$23.99

$

In Stock, only 2 left!

0

5

Toro 131-1793-03

BRACKET-CABLE

$5.99

$

Usually ships in 3-6 days

0

6

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

8

Toro 95-7949

CABLE-PULLEY

$13.99

$

Usually ships in 3-6 days

0

9

Toro 136-7177

PLATE-STUD, REAR

$7.99

$

Usually ships in 3-6 days

0

10

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

11

Toro 130-9628

SCRAPER ASM

$46.99

$

In Stock, only 2 left!

0

12

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, Qty 8

0

13

Toro 131-1797-01

SUPPORT-FRAME, LOWER

$18.99

$

Usually ships in 3-6 days

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 120-9646

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

16

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Toro 131-1763

COVER-BELT, LOWER

$10.99

$

Usually ships in 3-6 days

0

18

Toro 131-1764

COVER-BELT, UPPER

$10.99

$

Usually ships in 3-6 days

0

19

Toro 107-1013

NUT-SPEED

$3.49

$

In Stock, only 2 left!

0

21

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

22

Toro 137-3059

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

23

Toro 119-4150

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 137-3005

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

26

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

30

Toro 130-9575

BLADE-SCRAPER

$49.99

$

Usually ships in 3-6 days

0

31

Toro 130-9627

FOAM-SCRAPER

$7.99

$

Usually ships in 3-6 days

0

32

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
