39915 (e 24) - Toro 24" SnowMaster 60V Snow Thrower (SN: 400000000 - 999999999) Chute Assembly Parts Diagram

24" SnowMaster 60V Snow Thrower

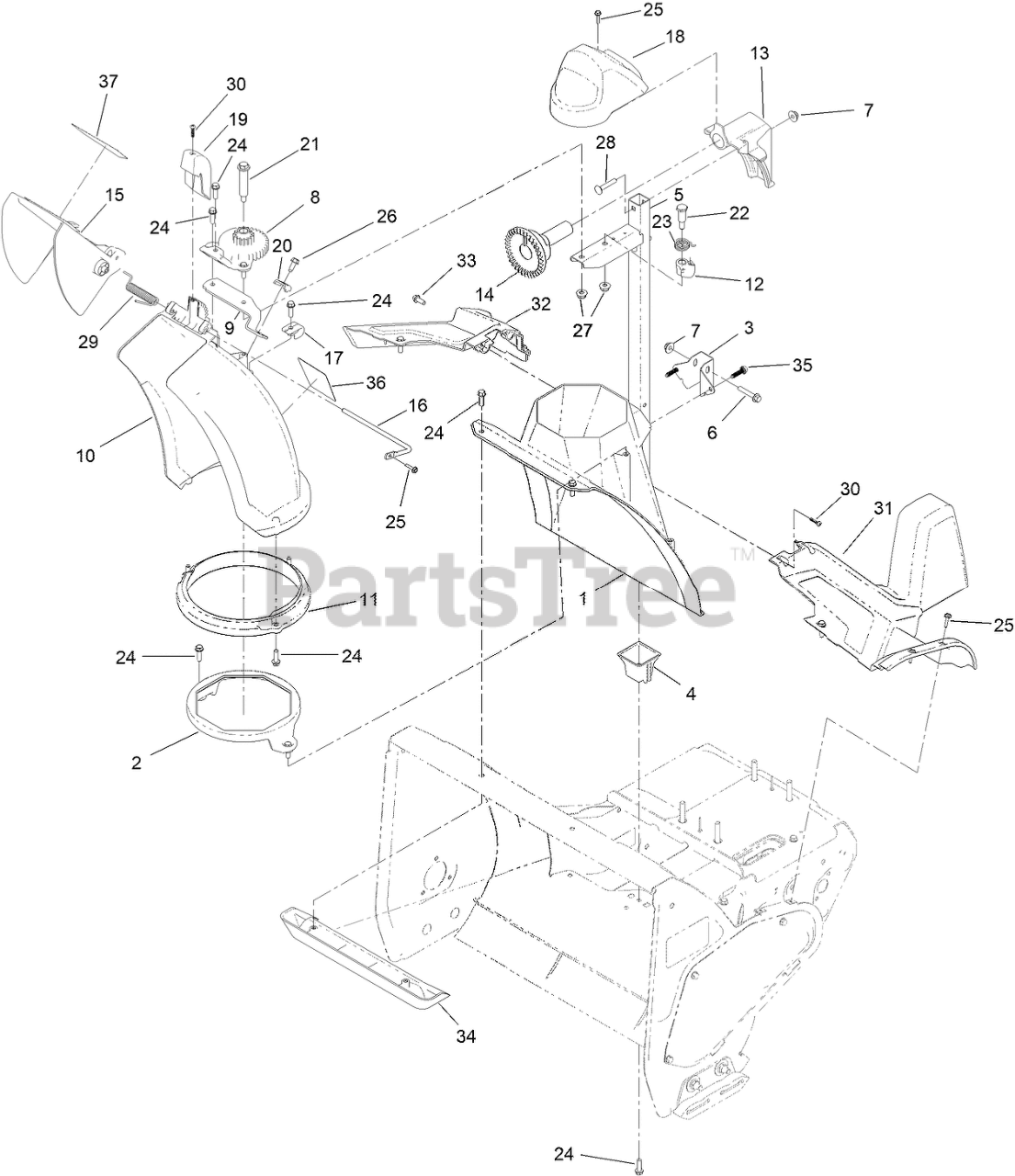

Chute Assembly Parts Diagram

  • Title

1

Toro 130-9587

CHUTE-LOWER

$37.99

$

Usually ships in 3-6 days

0

1

Toro 147-9468

CHUTE-DISCHARGE

$61.99

$

Usually ships in 0 days

0

2

Toro 130-9588

GUIDE-CHUTE

$6.49

$

Usually ships in 3-6 days

0

3

Toro 130-9589-03

BRACKET-POST, SUPPORT (CHUTE)

$21.99

$

Usually ships in 3-6 days

0

4

Toro 130-9590

RETAINER- POST, CHUTE

$2.49

$

Usually ships in 3-6 days

0

5

Toro 130-9603-03

POST-CHUTE

$59.99

$

Usually ships in 3-6 days

0

6

Toro 137-3027

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

7

Toro 137-3016

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 130-9605

GEAR-CHUTE

$12.99

$

In Stock, only 2 left!

0

9

Toro 136-7170

BRACKET-CABLE

$7.49

$

Usually ships in 3-6 days

0

10

Toro 133-5591

CHUTE-DISCHARGE

$39.99

$

In Stock, only 2 left!

0

11

Toro 130-9596

RING-CHUTE

$9.49

$

Usually ships in 3-6 days

0

12

Toro 130-9607

LATCH-CHUTE

$3.49

$

In Stock, only 1 left!

0

13

Toro 130-9608

MOUNT-GEAR, CHUTE

$15.99

$

Usually ships in 3-6 days

0

14

Toro 106-4471

GEAR-FACE

$28.99

$

In Stock, only 2 left!

0

15

Toro 147-9467

DEFLECTOR-CHUTE

$34.99

$

Usually ships in 0 days

0

16

Toro 136-7145

ROD-DEFLECTOR

$7.99

$

In Stock, only 2 left!

0

17

Toro 130-9609

GUIDE-CABLE

$2.49

$

Usually ships in 3-6 days

0

18

Toro 130-9611

COVER-GEAR, CHUTE

$8.99

$

Usually ships in 3-6 days

0

19

Toro 120-9299

CHUTE-COVER

$3.49

$

Usually ships in 3-6 days

0

20

Toro 136-7191

CLAMP-CABLE

$5.49

$

Usually ships in 3-6 days

0

21

Toro 136-7199

BOLT-SHOULDER

$5.49

$

In Stock, only 1 left!

0

22

Toro 137-3103

SCREW-SHOULDER, HH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 130-9616

SPRING-TORSION, LATCH (CHUTE)

$2.49

$

Usually ships in 3-6 days

0

24

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 137-3110

SCREW-PLASTITE, HWH

$2.99

$

In Stock, only 1 left!

0

26

Toro 137-3043

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 15

0

28

Toro 137-3011

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

29

Toro 136-7143

SPRING-TORSION

$4.49

$

In Stock, only 3 left!

0

30

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

31

Toro 131-1754

SHROUD-UPPER, LH

$21.99

$

Usually ships in 3-6 days

0

32

Toro 131-1765

SHROUD-LOWER, RH

$14.99

$

Usually ships in 3-6 days

0

33

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

34

Toro 131-1768

KICKER-HOUSING

$8.99

$

Usually ships in 3-6 days

0

35

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 20+

0

36

Toro 147-9438

DECAL - DANGER

$4.49

$

Usually ships in 0 days

0

37

Toro 147-9420

DECAL-DANGER

$6.99

$

Usually ships in 0 days

0
