39914 (e 24) - Toro 24" SnowMaster 60V Snow Thrower (SN: 400000000 - 999999999) Handles and Control Assembly Parts Diagram

24" SnowMaster 60V Snow Thrower

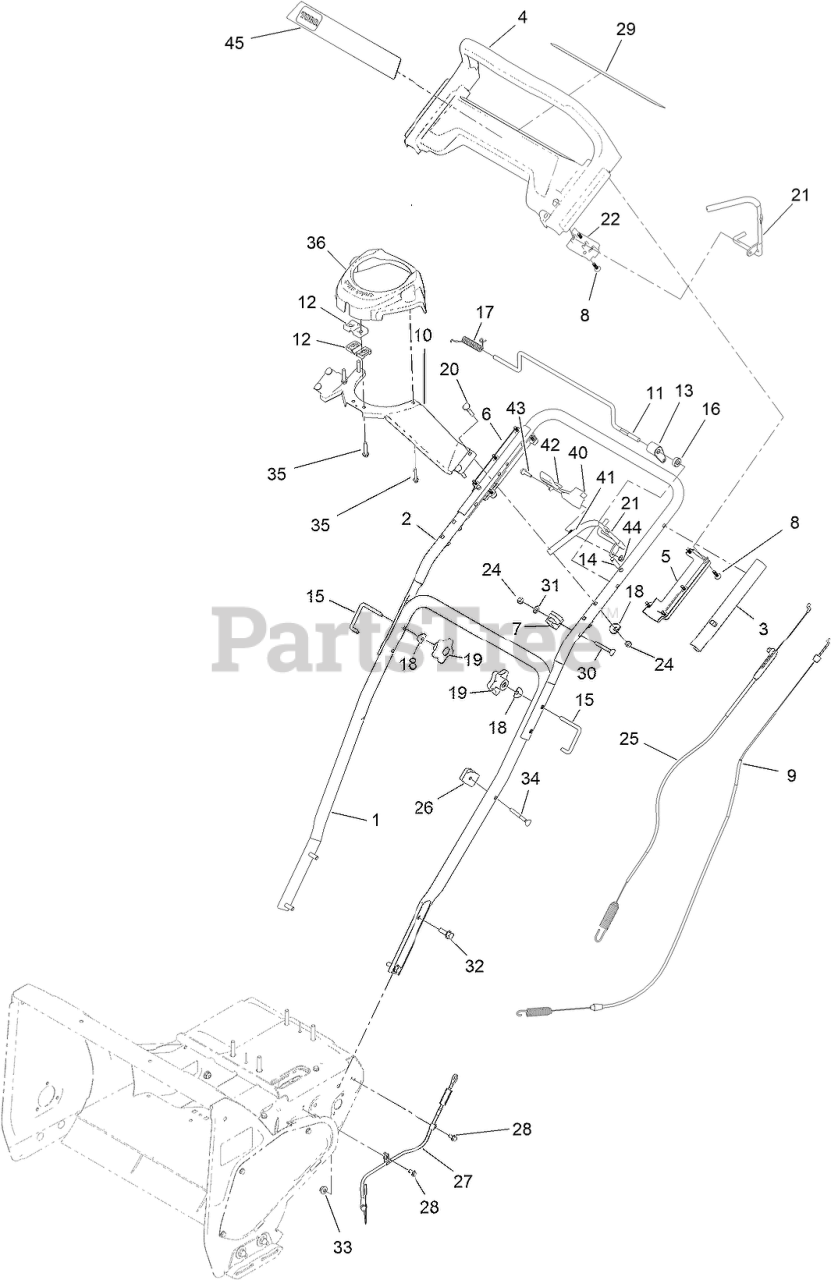

Handles and Control Assembly Parts Diagram

  • Title
1

Toro 120-2334-03

HANDLE-LOWER

$72.99

$

Usually ships in 3-6 days

0

2

Toro 120-2333-03

HANDLE-UPPER

$68.99

$

Usually ships in 3-6 days

0

3

Toro 120-2343

SLEEVE HANDLE

$4.99

$

Usually ships in 3-6 days

0

4

Toro 147-9402

HANDLE PP ASM W/ DECAL

$61.99

$

Usually ships in 0 days

0

5

Toro 120-2336

HANDLE-BOTTOM, LH

$4.99

$

Usually ships in 3-6 days

0

6

Toro 131-1770

HANDLE-BOTTOM, RH

$4.99

$

Usually ships in 3-6 days

0

7

Toro 131-5903

CABLE-GUIDE

$3.99

$

Usually ships in 3-6 days

0

8

$1.49

$

Usually ships in 3-6 days

0

9

Toro 131-5924

CABLE-TRANSMISSION

$21.99

$

In Stock, Qty 10

0

10

Toro 120-2342-03

BRACKET-CHUTE, CONTROL

$30.99

$

Usually ships in 3-6 days

0

11

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

12

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

13

Toro 131-5917

LEVER-TRACTION

$3.99

$

Usually ships in 3-6 days

0

14

Toro 131-1771

PIN-DOWEL

$0.99

$

Usually ships in 3-6 days

0

15

Toro 136-7130

LOCK-HANDLE

$5.49

$

In Stock, Qty 7

0

16

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

0

17

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, Qty 6

0

18

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 10

0

19

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, only 2 left!

0

20

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 11

0

21

Toro 147-7523

ASM-BAIL

$41.99

$

Usually ships in 0 days

0

22

Toro 131-5901

BAIL-MOUNT

$3.99

$

Usually ships in 3-6 days

0

24

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

25

Toro 120-2338

CABLE-ROTOR, UPPER

$25.99

$

In Stock, only 2 left!

0

26

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

27

Toro 131-1753

CABLE-ROTOR, LOWER

$25.99

$

Usually ships in 3-6 days

0

28

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

29

Toro 147-9404

DECAL-CONTROL, PANEL

$4.99

$

Usually ships in 0 days

0

30

Toro 137-3109

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

0

31

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

32

Toro 137-3067

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

33

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 137-3108

SCREW-HANDLE

$4.49

$

Usually ships in 3-6 days

0

35

Toro 137-3101

SCREW-PLASTIC,HWH

$1.49

$

In Stock, Qty 6

0

36

Toro 139-3507

COVER-TOP

$14.99

$

Usually ships in 3-6 days

0

40

$10.99

$

Usually ships in 0 days

0

41

Toro 147-7532

SPRING-TORSION

$1.99

$

Usually ships in 0 days

0

42

$6.49

$

In Stock, Qty 12

0

43

Toro 139-1709

SCREW-SHOULDER

$2.49

$

Usually ships in 3-6 days

0

44

Toro 139-1712

NUT-HEX FLANGE

$0.99

$

Usually ships in 3-6 days

0

45

Toro 147-9403

DECAL-DISPLAY

$6.99

$

Usually ships in 0 days

0
