39902 - Toro Flex-Force Power System 60V MAX Snow Thrower (SN: 319000001 - 319999999) (2019) Drive Belt Assembly Parts Diagram

Flex-Force Power System 60V MAX Snow Thrower

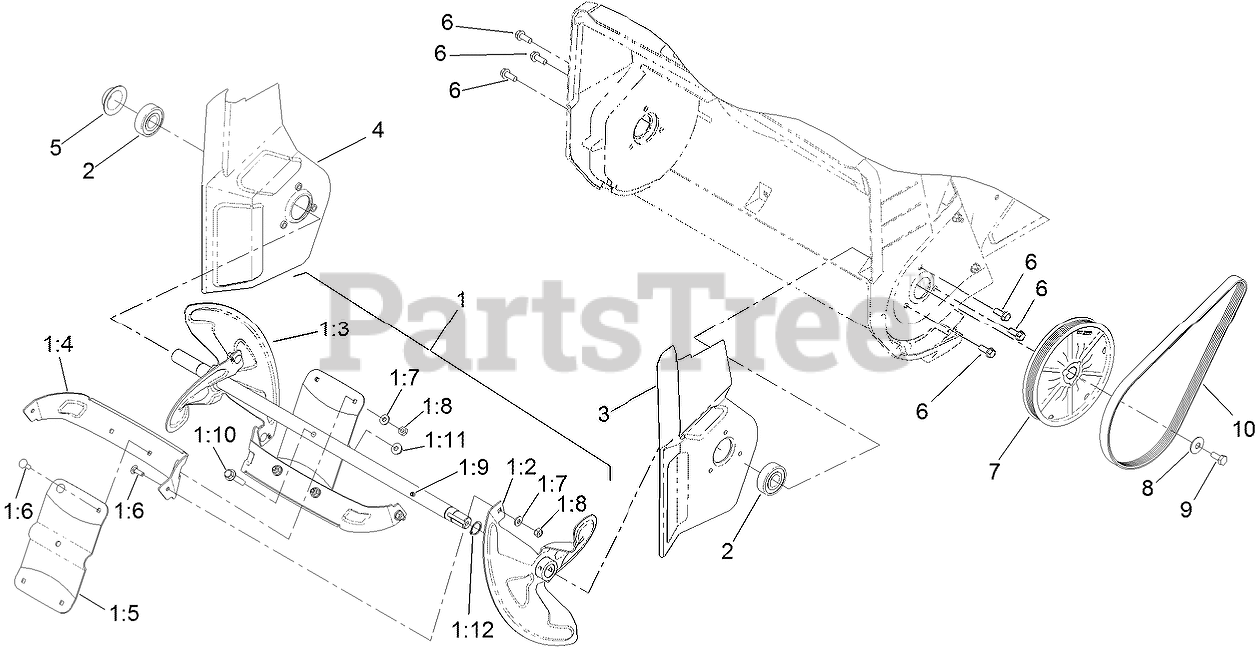

Drive Belt Assembly Parts Diagram

  • Title

1

Toro 137-9385

ROTOR ASM

$217.99

$

In Stock, only 1 left!

0

1:2

Toro 132-9161

BLADE-ROTOR, LH

$45.99

$

Usually ships in 3-6 days

0

1:3

Toro 132-9162

BLADE-ROTOR, RH

$45.99

$

Usually ships in 3-6 days

0

1:4

Toro 137-9386

ROTOR-CENTER

$27.99

$

Usually ships in 3-6 days

0

1:5

Toro 137-9387

PADDLE-CENTER

$27.99

$

Usually ships in 3-6 days

0

1:6

Toro 3229-34

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

1:7

Toro 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

1:8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

1:9

Toro 132-9169

PIN-SPIRAL

$2.49

$

Usually ships in 3-6 days

0

1:10

Toro 127-8639

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

1:11

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

1:12

Toro 137-9468

RING-SNAP, EXTERNAL

$1.99

$

Usually ships in 3-6 days

0

2

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

3

Toro 137-9389

EXTENSION-LH

$55.99

$

Usually ships in 3-6 days

0

4

Toro 137-9388

EXTENSION-RH

$55.99

$

Usually ships in 3-6 days

0

5

Toro 117-7720

CAP-SIDEPLATE, RH

$2.99

$

In Stock, only 2 left!

0

6

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

7

Toro 137-2320

ROTOR PULLEY ASM (6 GROOVE)

$20.99

$

In Stock, only 3 left!

0

8

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

9

Toro 110-9381

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

10

Toro 137-9427

BELT-V, RIBBED

$28.99

$

Usually ships in 3-6 days

0
