39901 - Toro Flex-Force Power System 60V MAX Snow Thrower (SN: 319000001 - 319999999) (2019) Handle Assembly Parts Diagram

Flex-Force Power System 60V MAX Snow Thrower

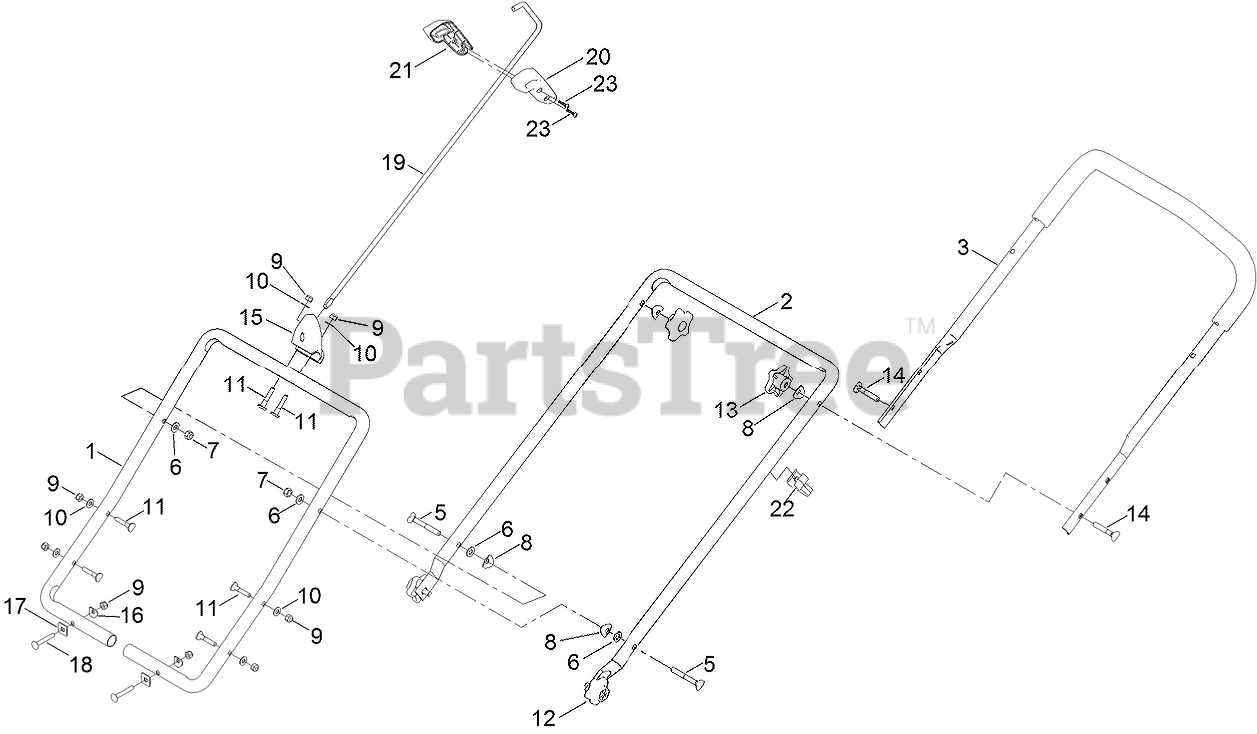

Handle Assembly Parts Diagram

  • Title

1

Toro 132-9183

HANDLE-LOWER

$62.99

$

Usually ships in 3-6 days

0

2

Toro 132-9184

HANDLE-MIDDLE

$67.99

$

Usually ships in 3-6 days

0

3

Toro 137-2326

UPPER HANDLE ASM

$60.99

$

Usually ships in 3-6 days

0

5

Toro 125-8408

SCREW-HANDLE

$2.49

$

Usually ships in 3-6 days

0

6

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

7

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 16

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

10

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 11

0

12

Toro 137-9390

KNOB-HANDLE

$4.49

$

Usually ships in 3-6 days

0

13

Toro 139-5226

KNOB-LOCKING, HANDLE

$3.99

$

Usually ships in 3-6 days

0

14

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, only 2 left!

0

15

Toro 137-9303

GUIDE-ROD, CHUTE

$5.49

$

In Stock, Qty 15

0

16

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

17

Toro 75-9040

WASHER-SQUARE

$1.49

$

In Stock, Qty 10

0

18

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

19

Toro 137-2294

ROD-CONTROL, CHUTE

$

$

Currently unavailable

20

Toro 137-2316

GRIP-LH

$

$

Currently unavailable

21

Toro 137-2317

GRIP-RH

$

$

Not available

22

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

23

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0
