39696 - Toro 40" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) STARTER ASSEMBLY KAWASAKI FH430V-CS25 Parts Diagram

40" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

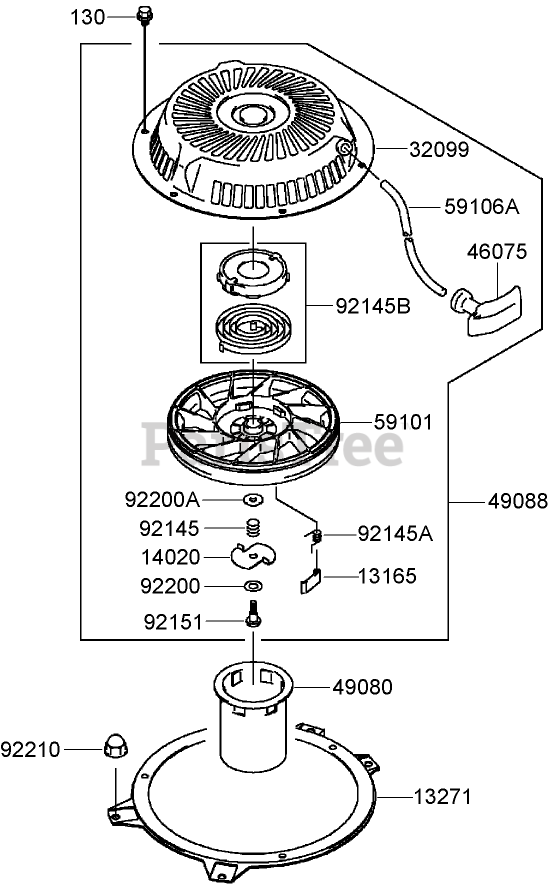

STARTER ASSEMBLY KAWASAKI FH430V-CS25 Parts Diagram

  • Title
13165

Kawasaki 13165-7001

PAWL-STARTER, RECOIL

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 16

0

13271

Kawasaki 13271-7003-9H

Plate

Note: Obtain parts from www.kawpowerepc.com

$40.99

$

Usually ships in 2-5 days

0

14020

Kawasaki 14020-7001

Retainer

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, only 4 left!

0

32099

Kawasaki 32099-7002

CASE-STARTER, RECOIL

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

46075

Kawasaki 46075-7001

GRIP-STARTER, RECOIL

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 20+

0

49080

Kawasaki 49080-7001

Pulley-Starting
(Superseded to 49080-0006)

Note: Obtain parts from www.kawpowerepc.com

$14.99

$

In Stock, Qty 6

0

49088

Kawasaki 49088-7013

STARTER-RECOIL
(Superseded to 49088-0015)

Note: Obtain parts from www.kawpowerepc.com

$151.99

$

In Stock, only 3 left!

0

59101

Kawasaki 59101-7001

REEL-STARTER, RECOIL

Note: Obtain parts from www.kawpowerepc.com

$26.99

$

In Stock, only 1 left!

0

59106A

Kawasaki 59106-7005

ROPE
(Superseded to 59106-7001)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 4 left!

0

92145

Kawasaki 92145-7006

Spring

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 5

0

92145A

Kawasaki 92145-7007

Spring

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 18

0

92145B

Kawasaki 92145-7008

Spring

Note: Obtain parts from www.kawpowerepc.com

$20.99

$

In Stock, Qty 8

0

92151

Kawasaki 92151-7008

Bolt

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 7

0

92200

Kawasaki 92200-7004

Washer

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 13

0

92200A

Kawasaki 92200-7005

Washer

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, only 3 left!

0

92210

Kawasaki 92210-0003

Nut

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130

Toro 130B0608

BOLT-FLANGED (6X8)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
