39696 - Toro 40" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) SHEAVE, SPINDLE AND BLADE ASSEMBLY Parts Diagram

40" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

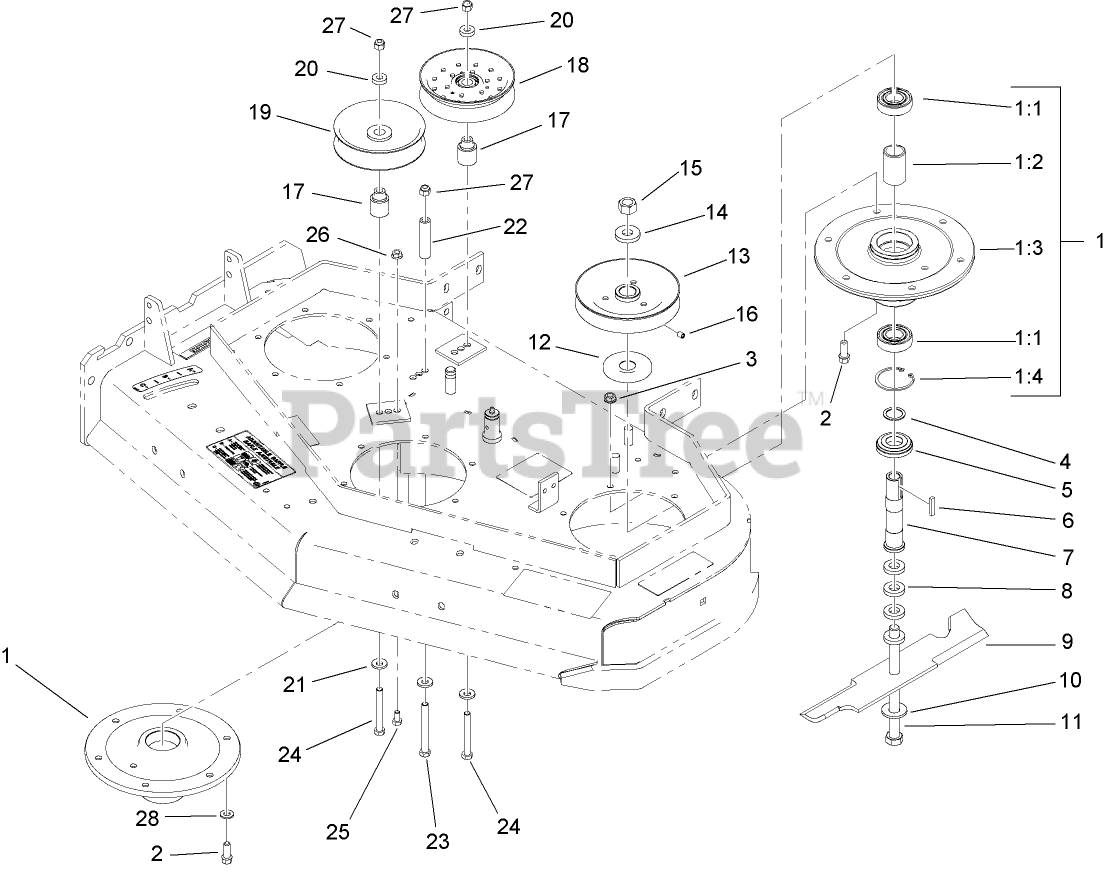

SHEAVE, SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 108-6697

SPINDLE HOUSING ASM

$315.99

$

Usually ships in 3-6 days

0

1:1

Toro 110-2118

BEARING
(Superseded to 119-7857)

$17.99

$

In Stock, only 4 left!

0

1:2

Toro 110-2116

SPACER-BEARING

$18.99

$

Usually ships in 3-6 days

0

1:3

Toro 108-6694

HOUSING-SPINDLE

$233.99

$

Usually ships in 3-6 days

0

1:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

2

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 110-4888

WASHER-SPACER

$3.99

$

In Stock, only 1 left!

0

5

Toro 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

$2.99

$

In Stock, only 2 left!

0

7

Toro 1-323529

TUBE-SPINDLE, SHORT

$88.99

$

In Stock, only 2 left!

0

8

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

9

Toro 108-4081-03

BLADE-14 INCH (HIGH SAIL)

$34.99

$

In Stock, only 3 left!

0

10

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

11

Toro 1-800861

SCREW-CAP, HH

$19.99

$

In Stock, only 2 left!

0

12

Toro 103-1330

Guard-Bearing, Top

$5.49

$

In Stock, only 2 left!

0

13

Toro 1-403183

SHEAVE

$69.99

$

In Stock, only 1 left!

0

14

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

15

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

16

Toro 1-803310

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

17

Toro 1-403184

BUSHING-IDLER
(Superseded to 1-413113)

$5.99

$

In Stock, only 1 left!

0

18

Toro 1-403186

IDLER-PULLEY, FLAT
(Superseded to 136-5405)

$48.99

$

In Stock, only 1 left!

0

19

Toro 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

20

Toro 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

21

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

22

Toro 1-403188

SPACER

$14.99

$

Usually ships in 3-6 days

0

23

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

24

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 7

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0
