39682 - Toro 32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive (SN: 280000001 - 280999999) (2008) TRANSMISSION DRIVE ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive

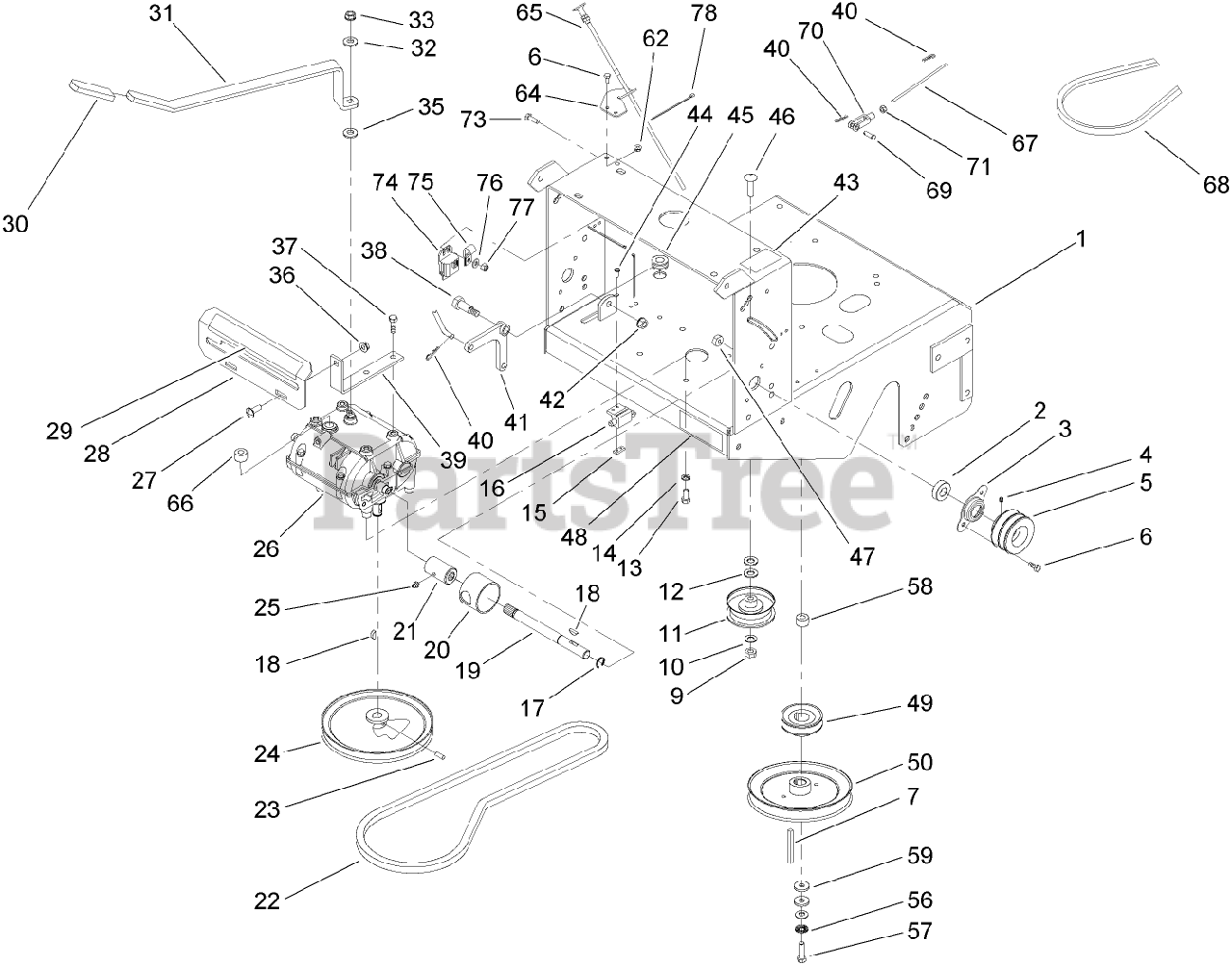

TRANSMISSION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 103-9897-01

DECK-ENGINE

$881.99

$

Usually ships in 3-6 days

0

2

Toro 1-323252

BEARING-SHAFT

$19.99

$

In Stock, Qty 13

0

3

Toro 1-323254

FLANGE-OUTPUT

$11.99

$

In Stock, Qty 11

0

4

Toro 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

5

Toro 103-6512

SHEAVE-TRANSMISSION

$126.99

$

Usually ships in 3-6 days

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 103-4177

KEY

$5.49

$

In Stock, only 2 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 1-323285

PULLEY-IDLER, FLAT
(Superseded to 130-8362)

$39.99

$

In Stock, Qty 7

0

12

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 8

0

16

Toro 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

17

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

18

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 19

0

19

Toro 1-323502

SHAFT-TRANSMISSION

$31.99

$

In Stock, Qty 13

0

20

Toro 51-4220

GUARD-COUPLER

$20.99

$

In Stock, only 1 left!

0

21

Toro 1-323680

COUPLER

$43.99

$

In Stock, only 1 left!

0

22

Toro 1-323630

V-BELT

$36.99

$

In Stock, Qty 5

0

23

Toro 3245-41

SCREW-HSH

$2.99

$

In Stock, Qty 8

0

24

Toro 1-323278

SHEAVE-TRANSMISSION

$85.99

$

In Stock, Qty 8

0

25

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

26

Toro 1-323500

TRANSMISSION
(Superseded to 137-4105)

Note: Obtain parts from Peerless Transmissions (model 700-070A)

$620.99

$

In Stock, Qty 15

0

27

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 1-323387-03

PLATE-SHIFT

$71.99

$

Usually ships in 3-6 days

0

29

Toro 105-4104

DECAL-SPEED, GROUND

$19.99

$

Usually ships in 3-6 days

0

30

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

31

Toro 98-3274-03

LEVER-SHIFT

$56.99

$

In Stock, only 1 left!

0

32

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

33

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

35

Toro 1-323379

WASHER

$3.49

$

In Stock, only 2 left!

0

36

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Toro 9264964

SCREW-HWH, THREAD CUT

$1.99

$

Usually ships in 3-6 days

0

38

Toro 1-603403

BOLT-SHOULDER

$18.99

$

In Stock, only 2 left!

0

39

Toro 1-323389-03

BRACKET-PLATE, SHIFT

$33.99

$

Usually ships in 3-6 days

0

40

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

41

Toro 1-303186

BELLCRANK

$61.99

$

In Stock, only 1 left!

0

42

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

43

Toro 95-2814

DECAL-SHUT OFF, FUEL

$

$

Not available

44

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

45

Toro 1-543296

GROMMET

$8.99

$

In Stock, only 4 left!

0

46

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 17

0

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 98-0776

DECAL-CAUTION

$

$

Not available

49

Toro 103-1666

Sheave-Transmission

$44.99

$

In Stock, only 1 left!

0

50

Toro 103-1667

Sheave

$89.99

$

Usually ships in 3-6 days

0

56

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

57

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, Qty 9

0

58

Toro 1-633453

SPACER-CLUTCH

$20.99

$

In Stock, only 2 left!

0

59

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

62

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

64

Toro 103-1797-01

Bracket-Cable, Choke

$9.99

$

Usually ships in 3-6 days

0

65

Toro 103-1796

Cable-Choke

$46.99

$

In Stock, only 1 left!

0

66

Toro 1-303282

Switch-Start, Neutral

$53.99

$

In Stock, Qty 5

0

67

Toro 1-323303

ARM-ASSIST, LINKAGE

$26.99

$

In Stock, only 2 left!

0

68

Toro 1-323745

BELT-V

$90.99

$

In Stock, only 3 left!

0

69

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 19

0

70

Toro 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 4 left!

0

71

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

73

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

74

Toro 1-323430

MODULE-INTERLOCK

$148.99

$

In Stock, only 3 left!

0

75

Toro 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

0

76

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

77

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

78

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0
