39674 - Toro 36" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 315000001 - 315999999) (2015) FUEL SYSTEM ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

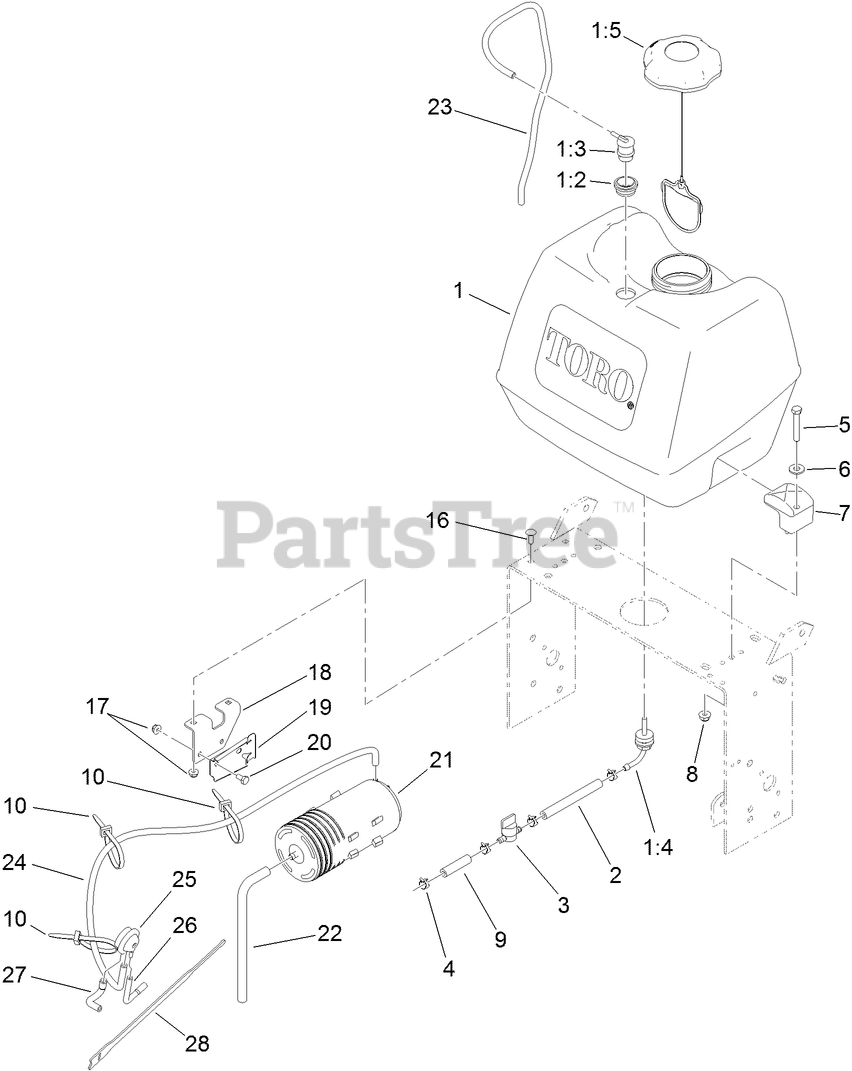

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 126-1526

FUEL TANK ASM

$

$

Not available

1:2

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

1:3

Toro 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

1:4

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

1:5

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

2

Toro 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

3

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

4

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

$14.99

$

Usually ships in 3-6 days

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

10

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

17

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Toro 115-4486-01

BRACKET-CANISTER, CARBON

$14.99

$

Usually ships in 3-6 days

0

19

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

20

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

21

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

22

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

23

Toro 114-0286

HOSE-VENT

$8.49

$

Usually ships in 3-6 days

0

24

Toro 116-2231

HOSE-VENT, FORMED

$35.99

$

Usually ships in 3-6 days

0

25

Toro 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

26

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

27

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

28

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0
