39638 - Toro 48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive (SN: 404325000 - 405699999) Drive Wheel and Brake Assembly Parts Diagram

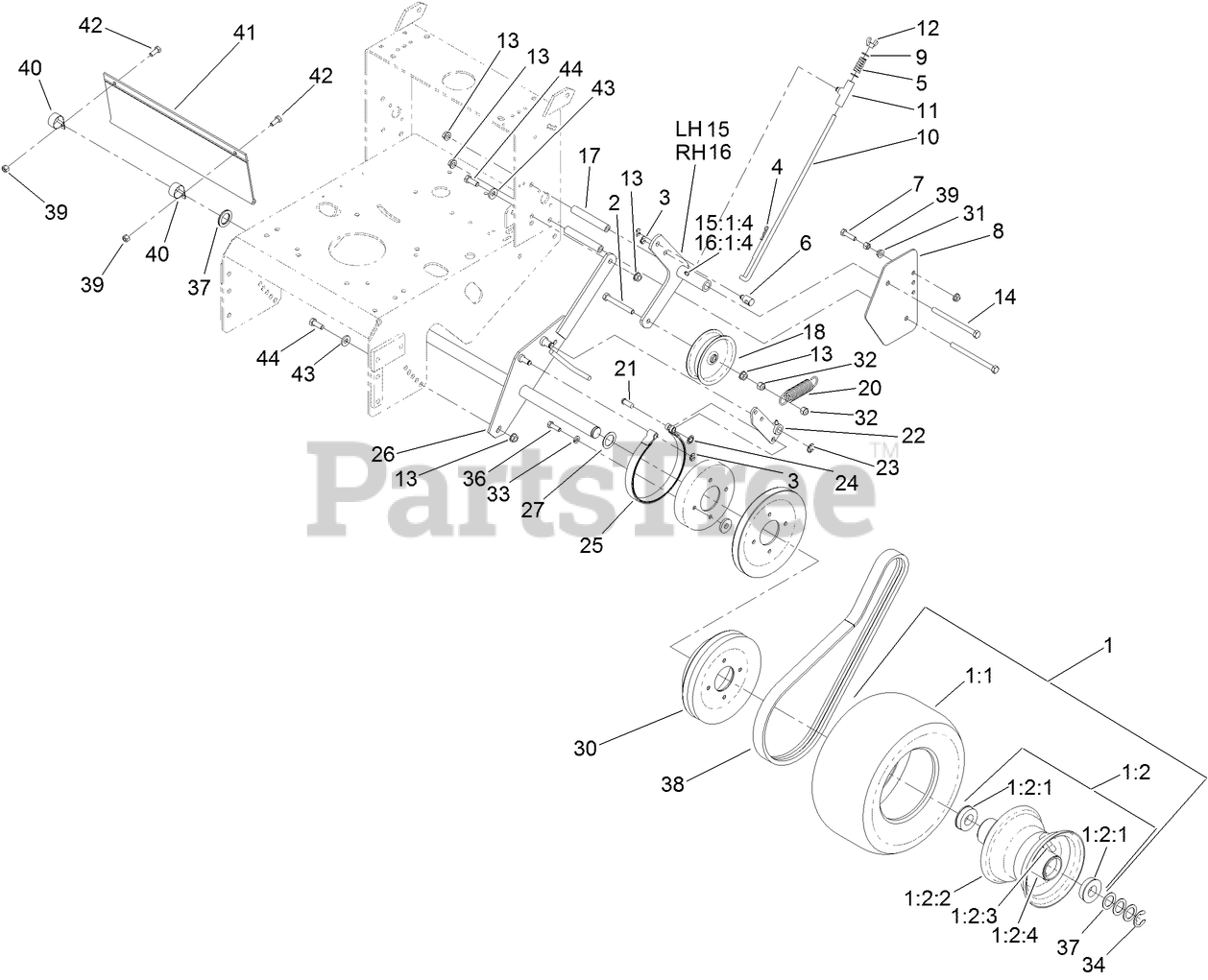

48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive

Drive Wheel and Brake Assembly Parts Diagram

  • Title

1

Toro 130-8363

WHEEL AND TIRE ASM

$243.99

$

Usually ships in 3-6 days

0

1:1

Toro 130-8367

TIRE
(Superseded to 126-1509)

$79.99

$

In Stock, only 2 left!

0

1:2

Toro 130-4565

WHEEL AND HUB ASM

$128.99

$

Usually ships in 3-6 days

0

1:2:1

Toro 1-323329

BEARING-FLANGED

$62.99

$

In Stock, only 1 left!

0

1:2:2

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:2:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:2:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2

Toro 99-8664

SCREW-HH

$2.99

$

In Stock, Qty 5

0

3

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

4

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

5

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

6

Toro 103-1864

SWIVEL-LEVER, DRIVE

$11.99

$

Usually ships in 3-6 days

0

7

Toro 116-3515

SCREW-HH, SPECIAL

$1.49

$

Usually ships in 3-6 days

0

8

Toro 1-323287-01

SHIELD-WHEEL, DRIVE

$47.99

$

Usually ships in 3-6 days

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 132-4723

LINKAGE-BRAKE

$26.99

$

Usually ships in 3-6 days

0

11

Toro 110-5866

SWIVEL-BRAKE

$25.99

$

Usually ships in 3-6 days

0

12

Toro 1-513959

WINGNUT-NYLOCK

$6.49

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

15

Toro 116-7542-03

ARM-IDLER, LH

$84.99

$

Usually ships in 3-6 days

0

15:1:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

16

Toro 116-7543-03

ARM-IDLER, RH

$84.99

$

Usually ships in 3-6 days

0

16:1:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

17

Toro 1-323283

SPACER-SHIELD

$9.49

$

In Stock, Qty 9

0

18

Toro 119-7887

PULLEY-IDLER

$45.99

$

Usually ships in 3-6 days

0

20

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

21

Toro 1-323307

PIN-CLEVIS

$5.49

$

In Stock, Qty 15

0

22

Toro 103-1611-03

ARM-BRAKE

$74.99

$

Usually ships in 3-6 days

0

23

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

24

Toro 1-803051

RING-RETAIN,PUSH,EXT,FLAT

$2.99

$

In Stock, Qty 20+

0

25

Toro 1-323262

BAND-BRAKE

$87.99

$

In Stock, only 2 left!

0

26

Toro 1-322117-03

AXLE

$361.99

$

Usually ships in 3-6 days

0

27

Toro 1-543436

WASHER-SPACER

$1.49

$

In Stock, Qty 9

0

30

Toro 109-4359

DRUM AND SHEAVE ASM

$81.99

$

In Stock, only 3 left!

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

34

Toro 1-808519

RING-SNAP

$2.99

$

In Stock, only 4 left!

0

36

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

38

Toro 1-323631

V-BELT

$80.99

$

In Stock, Qty 8

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

40

Toro 2412-104

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

41

Toro 98-3259

SHIELD-TRAILING

$70.99

$

In Stock, only 2 left!

0

42

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

44

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
