39517 - Toro 24" Stand-On Aerator (SN: 400000000 - 999999999) FRAME ASSEMBLY Parts Diagram

24" Stand-On Aerator

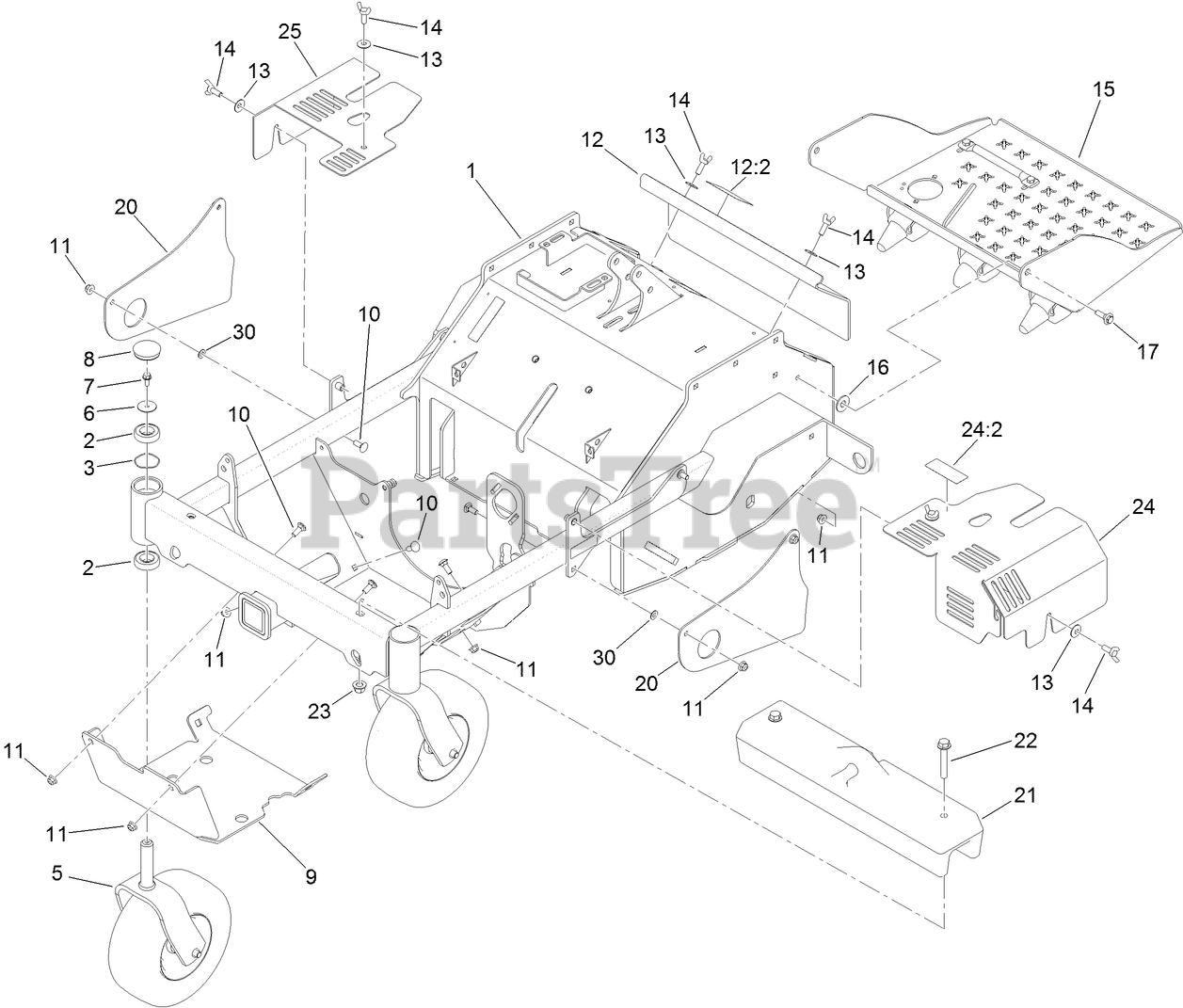

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 126-8700

MAIN FRAME ASM

$1876.99

$

Usually ships in 3-6 days

0

2

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

3

Toro 126-5897

SPRING

$1.49

$

In Stock, Qty 18

0

5

FRONT CASTER ASM

Note: Not serviced separately

$

$

Not available

6

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

7

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

8

Toro 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 16

0

9

Toro 126-8726-03

GUARD-ENGINE

$81.99

$

Usually ships in 3-6 days

0

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 18

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 126-8801

ACCESS COVER ASM

$85.99

$

Usually ships in 3-6 days

0

12:2

Toro 121-6163

DECAL-OPERATION, TINE GROUND (CE)

$7.99

$

Usually ships in 3-6 days

0

13

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

14

Toro 126-6752

SCREW-THUMB

$7.49

$

In Stock, only 1 left!

0

15

Toro 126-9883

PLATFORM ASM

$489.99

$

Usually ships in 3-6 days

0

16

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0

20

Toro 126-9819-01

GUARD-CHAIN

$23.99

$

Usually ships in 3-6 days

0

21

Toro 135-2017

WEIGHT-FRONT

$500.99

$

Usually ships in 3-6 days

0

22

Toro 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

23

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

24

Toro 135-3270

HYDRO-COVER

$86.99

$

Usually ships in 3-6 days

0

24:2

Toro 135-3183

DECAL-RELEASE, DRIVE

$6.49

$

Usually ships in 3-6 days

0

25

Toro 135-0822-03

COVER-HYDRO

$42.99

$

Usually ships in 3-6 days

0

30

Toro 131-8667

WASHER-THRUST

$1.49

$

In Stock, Qty 12

0
