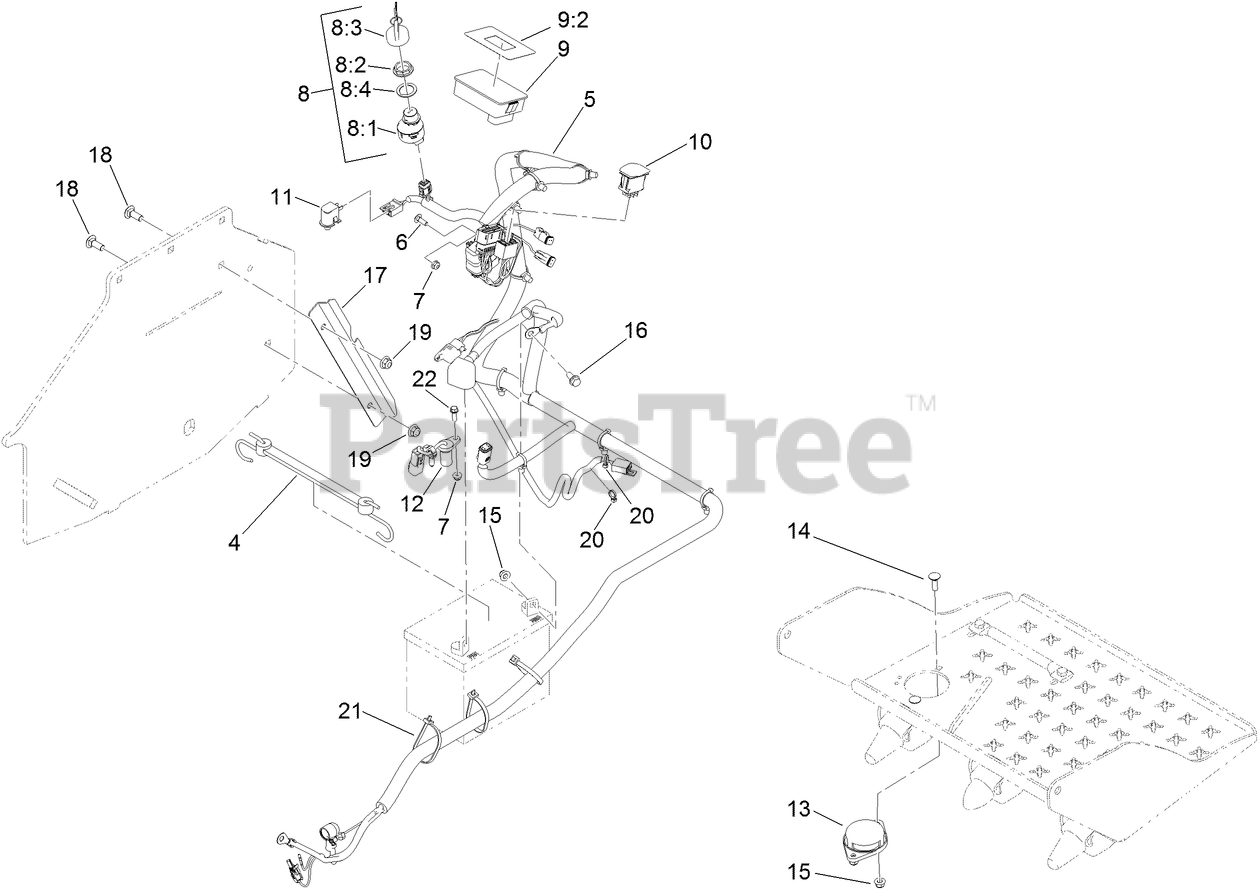

39514 - Toro 24" Stand-On Aerator (SN: 406000000 - 409036652) Electrical Assembly Parts Diagram

24" Stand-On Aerator

Electrical Assembly Parts Diagram

  • Title

4

Toro 104-2466

HOLDDOWN-BATTERY

$25.99

$

In Stock, Qty 5

0

5

Toro 126-9535

HARNESS-WIRE

$458.99

$

Usually ships in 3-6 days

0

6

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 126-6285

IGNITION SWITCH ASM

$58.99

$

In Stock, Qty 20+

0

8:1

SWITCH-IGNITION

Note: Not serviced separately

$

$

Not available

8:2

Toro 108-8660

NUT-MOUNTING

$37.99

$

In Stock, only 3 left!

0

8:3

Toro 106-5270

IGNITION KEY SET

$23.99

$

In Stock, Qty 20+

0

8:4

Toro 108-8659

WASHER-BACKUP

$15.99

$

In Stock, only 1 left!

0

9

Toro 135-2500

HOUR METER ASM

$289.99

$

Usually ships in 3-6 days

0

9:2

Toro 135-1854

DECAL-METER, HOUR

$13.99

$

Usually ships in 3-6 days

0

10

Toro 100-1535

SWITCH

$95.99

$

In Stock, Qty 14

0

11

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

12

Toro 135-0101

SENSOR-QUADRATURE

$226.99

$

Usually ships in 3-6 days

0

13

Toro 92-6282

SWITCH-SEAT

$36.99

$

In Stock, Qty 5

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

17

Toro 126-9701-03

GUARD-HARNESS

$16.99

$

Usually ships in 3-6 days

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

22

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0
