39514 - Toro 24" Stand-On Aerator (SN: 406000000 - 409036652) Control Tower and Brake Assembly Parts Diagram

24" Stand-On Aerator

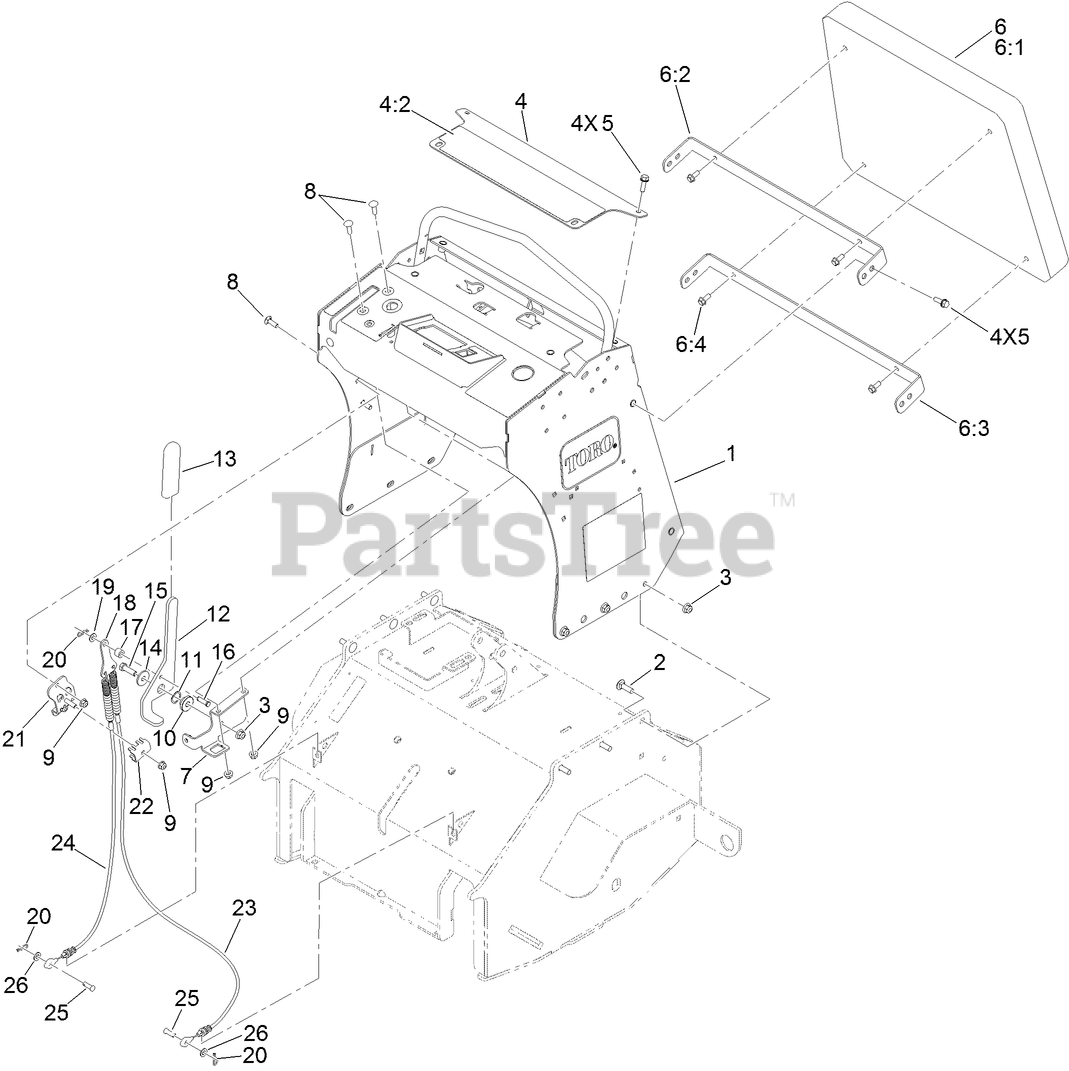

Control Tower and Brake Assembly Parts Diagram

  • Title

1

Toro 135-1701

CONTROL TOWER ASM

$580.99

$

Usually ships in 3-6 days

0

2

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 135-1696

CONTROL PANEL ASM

$85.99

$

Usually ships in 3-6 days

0

4:2

Toro 135-2014

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

5

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

6

CUSHION ASM

Note: Not serviced separately

$

$

Not available

6:1

Toro 135-1694

CUSHION-BLACK

$271.99

$

Usually ships in 3-6 days

0

6:2

Toro 135-1712-03

BRACKET-PAD, UPPER

$22.99

$

Usually ships in 3-6 days

0

6:3

Toro 135-1713-03

BRACKET-PAD, LOWER

$22.99

$

Usually ships in 3-6 days

0

6:4

Toro 98-9940

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

7

Toro 135-1714-03

BRACKET-PIVOT, BRAKE

$22.99

$

Usually ships in 3-6 days

0

8

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 126-5989

PIVOT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

11

Toro 119-4164

WASHER-WAVE

$3.49

$

In Stock, only 3 left!

0

12

Toro 135-1715

HANDLE-BRAKE

$28.99

$

Usually ships in 3-6 days

0

13

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 11

0

14

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

15

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 283-61

PIN-YOKE

$2.49

$

In Stock, only 2 left!

0

17

Toro 114-8549

BUSHING

$3.99

$

In Stock, Qty 20+

0

18

Toro 132-1188

YOKE-CABLE

$5.49

$

Usually ships in 3-6 days

0

19

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

20

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

21

Toro 132-7582

MOUNT-CABLE, BRAKE

$36.99

$

Usually ships in 3-6 days

0

22

Toro 132-1187

CLAMP-CABLE

$10.99

$

Usually ships in 3-6 days

0

23

Toro 135-0081

CABLE-BRAKE, LH

$46.99

$

Usually ships in 3-6 days

0

24

Toro 135-0082

CABLE-BRAKE, RH

$46.99

$

Usually ships in 3-6 days

0

25

Toro 283-75

PIN-CLEVIS

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
