39514 - Toro 24" Stand-On Aerator (SN: 400000000 - 404324199) Tine Assembly Parts Diagram

24" Stand-On Aerator

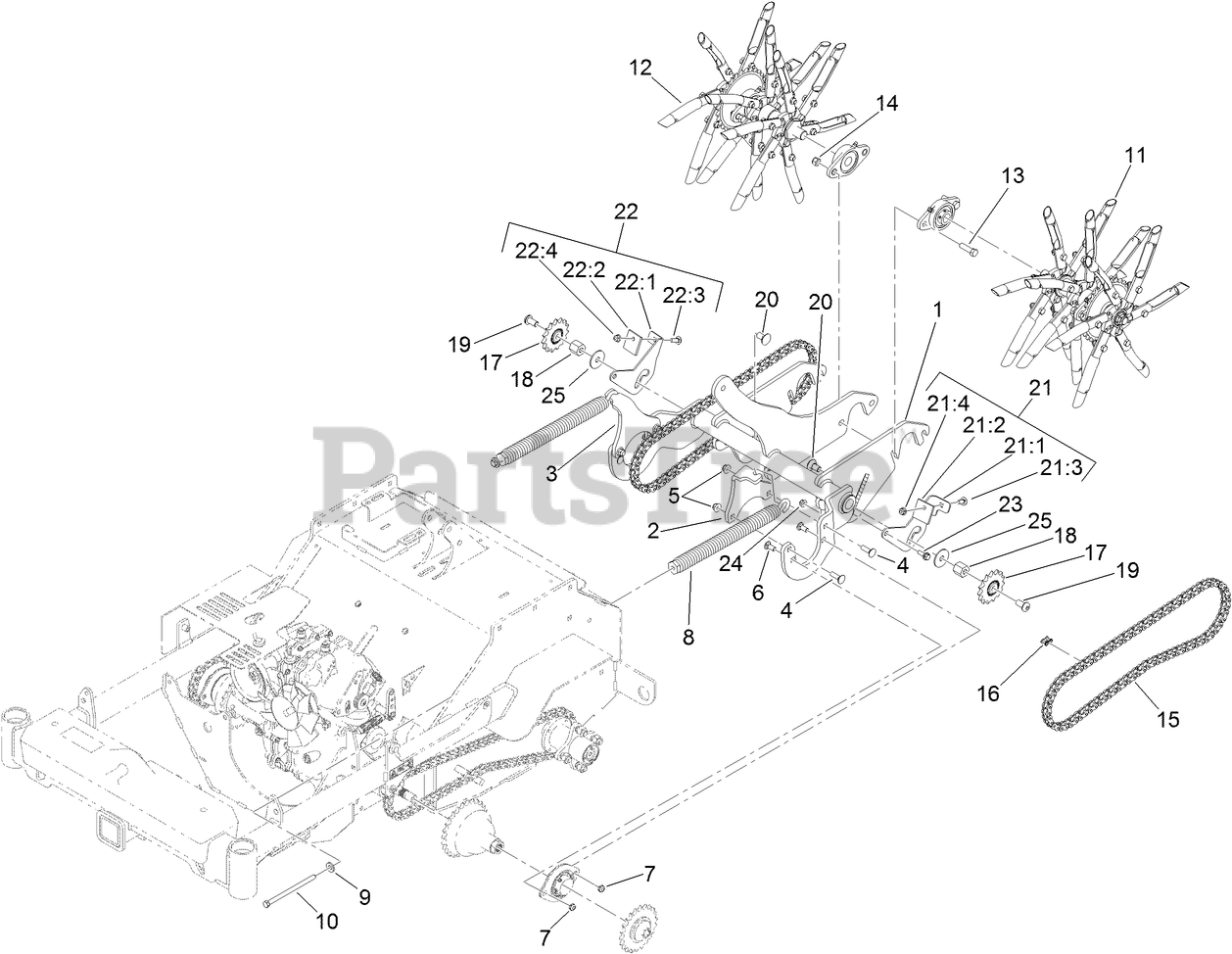

Tine Assembly Parts Diagram

  • Title
1

Toro 135-0810-03

LIFT-TINE

$448.99

$

In Stock, only 1 left!

0

2

Toro 135-1060-03

ARM-SPRING, LH

$30.99

$

Usually ships in 3-6 days

0

3

Toro 135-1061-03

ARM-SPRING, RH

$30.99

$

Usually ships in 3-6 days

0

4

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

7

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

8

Toro 116-0000

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

11

Toro 126-9550

LH TINE WHEEL ASM

$661.99

$

Usually ships in 3-6 days

0

12

Toro 126-9551

RH TINE WHEEL ASM

$661.99

$

Usually ships in 3-6 days

0

13

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 3296-76

NUT-LOCK, NI

$4.99

$

Usually ships in 3-6 days

0

15

Toro 135-1100

CHAIN-ROLLER

$235.99

$

Usually ships in 3-6 days

0

16

Toro 116-6897

LINK-CONNECTING

$7.99

$

In Stock, Qty 14

0

17

Toro 126-9108

SPROCKET-IDLER, 15T

$114.99

$

In Stock, only 2 left!

0

18

Toro 135-2242

SPACER

$14.99

$

Usually ships in 3-6 days

0

19

Toro 99-8446

SCREW- PAN SOCKET HEAD

$12.99

$

Usually ships in 3-6 days

0

20

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

21

Toro 135-2405

LH DEBRIS DEFLECTOR ASM

$34.99

$

Usually ships in 3-6 days

0

21:1

Toro 135-2325

BRACKET-DEFLECTOR, DEBRIS (LH)

$28.99

$

Usually ships in 3-6 days

0

21:2

Toro 135-2403

DEFLECTOR-DEBRIS

$1.49

$

Usually ships in 3-6 days

0

21:3

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

21:4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 135-2404

RH DEBRIS DEFLECTOR ASM

$34.99

$

Usually ships in 3-6 days

0

22:1

Toro 135-2406

BRACKET-DEFLECTOR, DEBRIS (RH)

$28.99

$

Usually ships in 3-6 days

0

22:2

Toro 135-2403

DEFLECTOR-DEBRIS

$1.49

$

Usually ships in 3-6 days

0

22:3

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

22:4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

24

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 120-3856

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0
