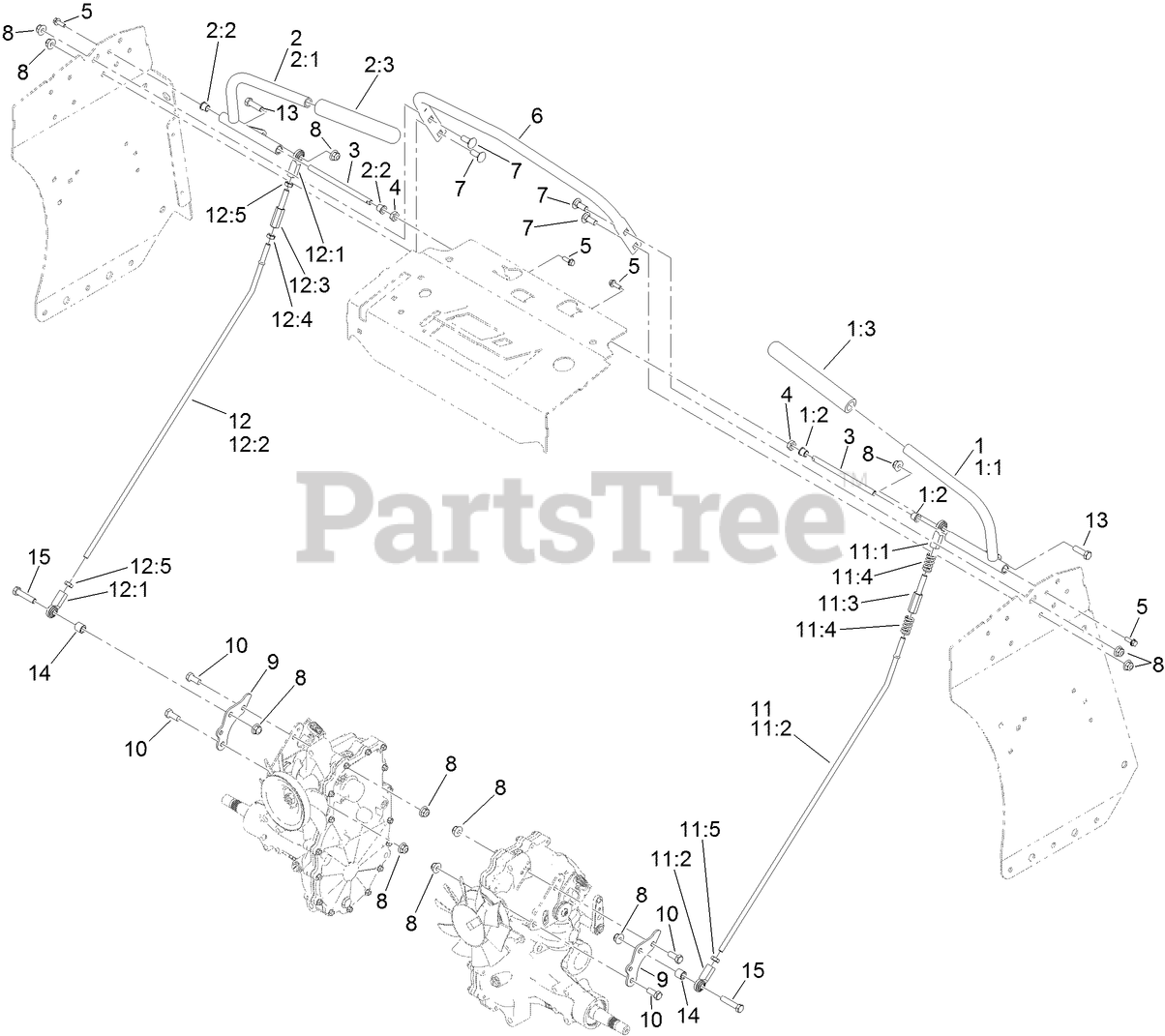

39514 - Toro 24" Stand-On Aerator (SN: 400000000 - 404324199) Motion Control Assembly Parts Diagram

24" Stand-On Aerator

Motion Control Assembly Parts Diagram

  • Title

1

LH MOTION HANDLE ASM

Note: Not serviced separately

$

$

Not available

1:1

Toro 135-1575-03

HANDLE-CONTROL, LH

$71.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

1:3

Toro 103-8153

GRIP-LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

2

RH MOTION HANDLE ASM

Note: Not serviced separately

$

$

Not available

2:1

Toro 135-1576-03

HANDLE-CONTROL, RH

$71.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

2:3

Toro 103-8153

GRIP-LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

3

Toro 116-4978

SHAFT-PIVOT, MOTION CONTROL

$26.99

$

In Stock, only 1 left!

0

4

Toro 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.49

$

Usually ships in 3-6 days

0

5

Toro 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

6

Toro 135-1557-01

BAR-REFERENCE

$47.99

$

Usually ships in 3-6 days

0

7

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 135-0305

ARM-MOTION

$6.49

$

Usually ships in 3-6 days

0

10

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

LH MOTION LINKAGE ASM

Note: Not serviced separately

$

$

Not available

11:1

Toro 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

11:2

Toro 135-1579

LINKAGE-MOTION

$50.99

$

Usually ships in 3-6 days

0

11:3

Toro 116-4755

ROD-ADJUSTMENT

$50.99

$

Usually ships in 3-6 days

0

11:4

Toro 116-7560

Spring-Compression

$6.99

$

Usually ships in 3-6 days

0

11:5

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

12

RH MOTION LINKAGE ASM

Note: Not serviced separately

$

$

Not available

12:1

Toro 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

12:2

Toro 135-1579

LINKAGE-MOTION

$50.99

$

Usually ships in 3-6 days

0

12:3

Toro 116-4755

ROD-ADJUSTMENT

$50.99

$

Usually ships in 3-6 days

0

12:4

Toro 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

12:5

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 126-9682

SPACER

$5.49

$

Usually ships in 3-6 days

0

15

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
