395 (190-395-701) - Cub Cadet Snow Shield (1985) Snow Shield Cab Parts Diagram

Snow Shield

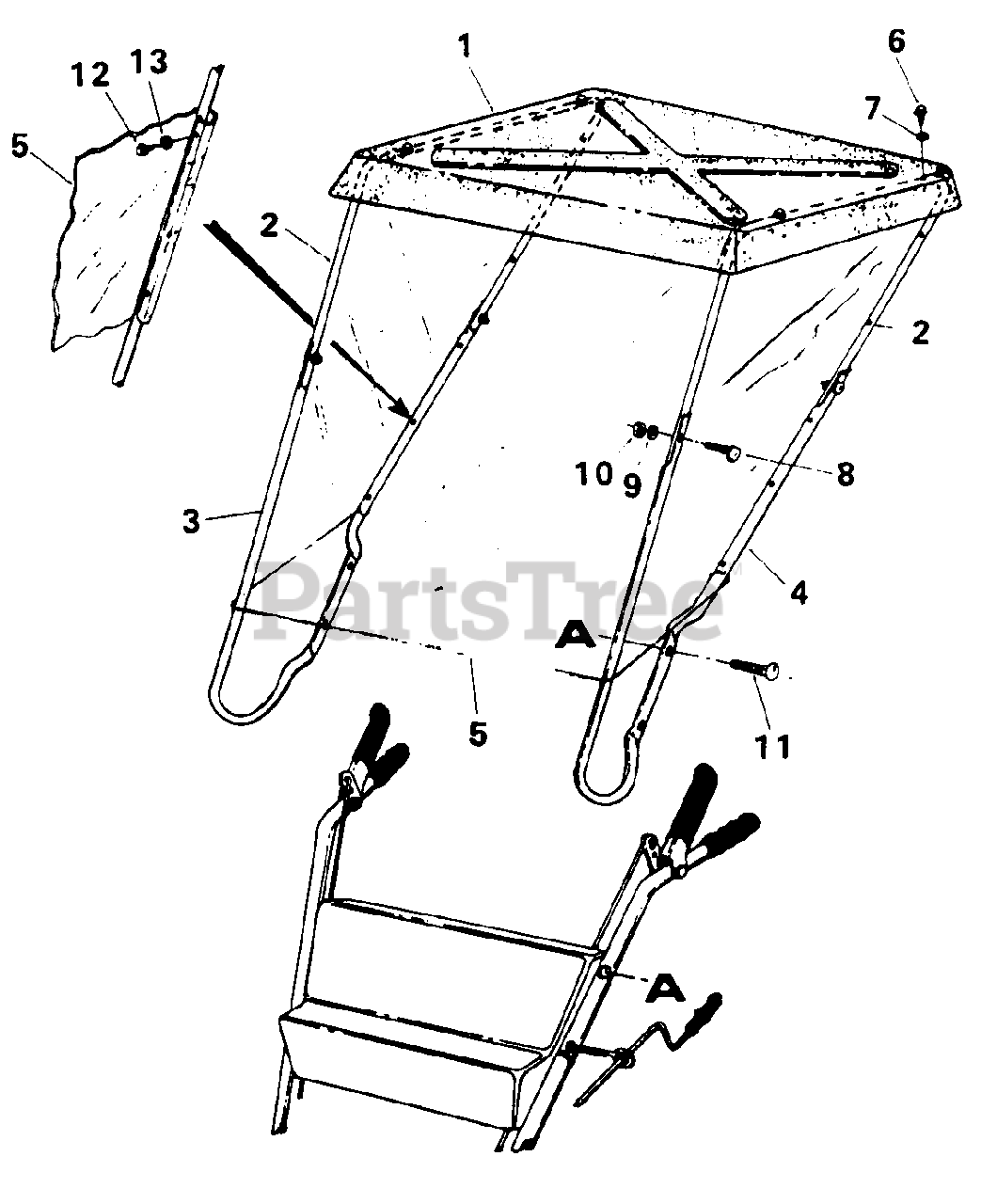

Snow Shield Cab Parts Diagram

  • Title
1

Cub Cadet 731-0696

Enclosure Roof

$

$

Currently unavailable

2

Cub Cadet 749-0589

Upper Frame

$

$

Currently unavailable

3

Cub Cadet 749-0590

Lower Frame-R.H.

$

$

Currently unavailable

4

Cub Cadet 749-0591

Lower Frame-L.H.

$

$

Currently unavailable

5

Cub Cadet 731-0697

Clear Plastic Windshield

$

$

Currently unavailable

6

Cub Cadet 710-0776

Hex "AB" Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0173

Fl.-Wash. .281 " I.D. x.73" O.D.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0671

Curved Hd. Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

9

Cub Cadet 736-0119

Lock Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0449

Curved Hd. Carr. Bolt 5/16- 1 8 x 2. 25" Lg
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0224

Hex Wash. Hd. "AB" Tapp Scr. #10 x .50"
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 735-0640

RubberWash..18" I.D. x.50 O.D.

$

$

Not available
