395 (190-395-100) - Cub Cadet Rear Bagger att Rear Bagger Part 1 Parts Diagram

Rear Bagger

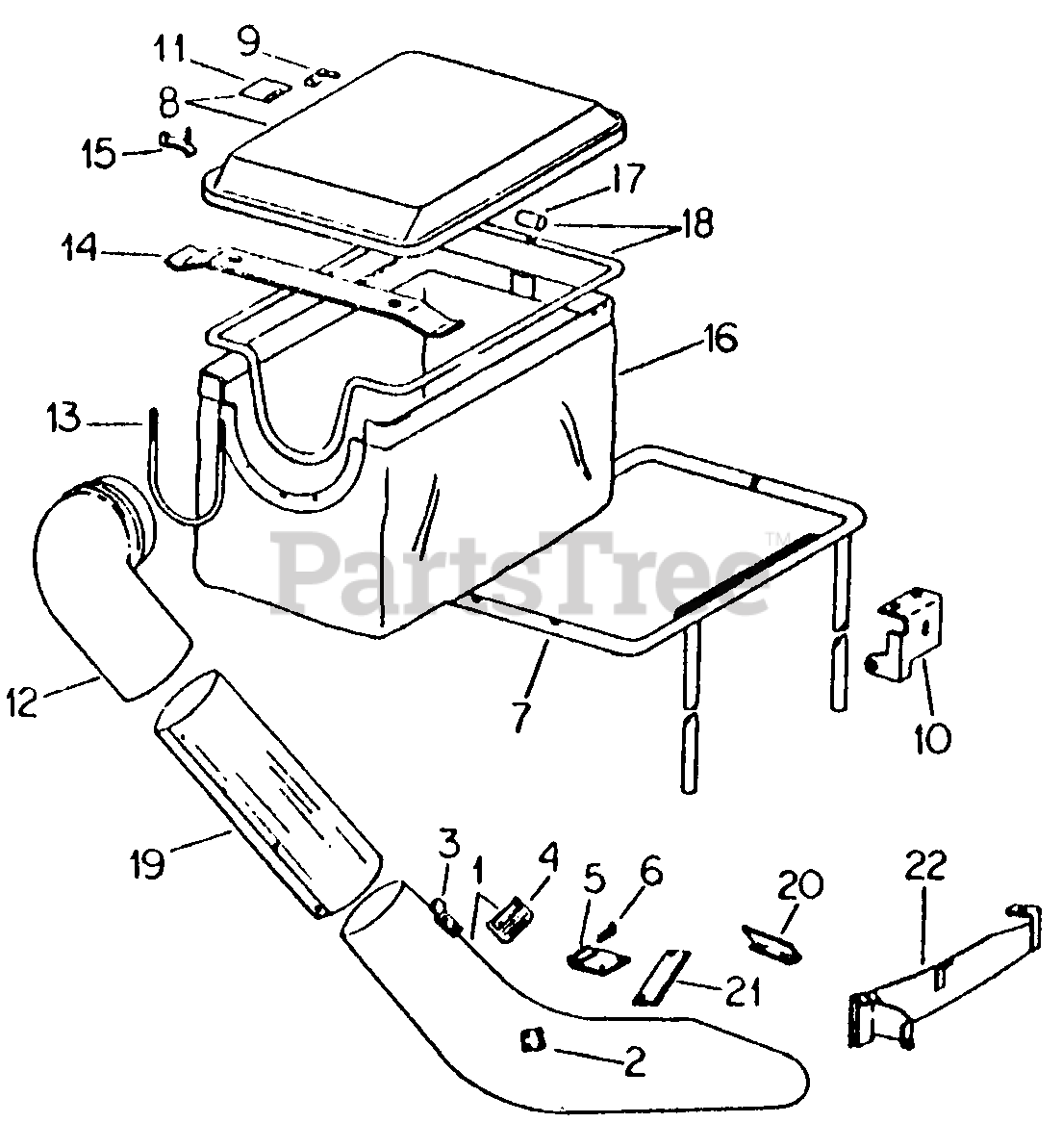

Rear Bagger Part 1 Parts Diagram

  • Title
1

Cub Cadet 703-0926

CHUTE ASSY, DISCHARGE

$

$

Not available

2

Cub Cadet 723-3031

HINGE, CHUTE

$

$

Not available

3

Cub Cadet 703-0633

RETAINER, TUBE

$

$

Not available

4

Cub Cadet 779-3172

PRODUCT GRAPHIC, CAUTION

$

$

Currently unavailable

5

Cub Cadet 710-3098

SCREW, 1/4 X 1/2 ZNP P/HSD MACH

$

$

Not available

Cub Cadet 736-0329

WASHER, 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 712-3006

NUT 1/4 TYPE 5

$4.99

$

In Stock, Qty 17

0

Cub Cadet 703-0573

HINGE ASSY. CHUTE

$

$

Not available

6

Cub Cadet 714-3020

PIN, INTERNAL COT.

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 703-0636

FRAME ASSY, BAGGER

$

$

Not available

8

Cub Cadet 703-0637

COVER ASSY, GRASS BAG

$

$

Not available

9

Cub Cadet 703-0638

CLIP, COVER

$

$

Not available

Cub Cadet 728-0141

RIVET, .156 X .25

$

$

Not available

10

Cub Cadet 703-0639

SUPPORT, COVER FURNISHED AS PART OF 703-0637

$

$

Not available

$

$

Not available

Cub Cadet 728-3007

RIVET, 5/32 X .379 POP

$

$

Not available

11

Cub Cadet 779-3173

PRODUCT GRAPHIC, CAUTION-MOWER INSTRTNS FURNISHED AS PART OF 703-0637

$

$

Currently unavailable

Cub Cadet 710-3073

BOLT, 5/16 X 2-1/4 TYPE 5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet 750-3025

SPACER, 1/4 X .438 STD PIPE

$

$

Currently unavailable

Cub Cadet 712-3009

NUT, 5/16 CAD P/T LOCK TYPE

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

WASHER, .34 X .68 X .062

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-3031

ELBOW, CHUTE

$

$

Not available

13

Cub Cadet 747-3078

BRACKET, ELBOW

$

$

Not available

14

Cub Cadet 732-3034

SPRING, BAG RETAINER

$

$

Not available

Cub Cadet 712-3010

NUT 5/16 TYPE 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0275

WASHER, .34 X .68 X .062

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-0634

CATCH ASSY

$

$

Not available

Cub Cadet 715-3019

PIN, 1/8 X 3/4 PLN SLT-SPR

$

$

Currently unavailable

Cub Cadet 736-0185

WASHER, .406 X .812 X .051

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-3066

WASHER, CURVED SPRING

$

$

Not available

16

Cub Cadet 703-0641

BAG ASSY, GRASS

$

$

Currently unavailable

17

SLEEVE, BAG FRAME ORDER 703-0641

$

$

Not available

18

BAG FRAME ORDER 703-0641

$

$

Not available

19

Cub Cadet 731-3062

SHEET, CONNECTING TUBE

$

$

Not available

Cub Cadet 710-3099

SCREW. NO. 8 X 3/8 ZNP P/HDS MACH

$

$

Currently unavailable

Cub Cadet 736-3067

WASHER, .188 X .438 X .036 CAD

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-0142

NUT, NO. 8 CAD MACH SCREW TYPE 1

$4.49

$

In Stock, Qty 10

0

20

Cub Cadet 703-0576

IMPELLER, 36 IN. MOWER BLADE

$

$

Not available

Cub Cadet 710-3100

BOLT, 5/16 X 3/4 PHC TYPE 8

$

$

Not available

Cub Cadet 712-3046

NUT, 5/16 PHC P/T LOCK TYPE 8

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 703-0642

FLANGE, LOCATOR

$

$

Not available

Cub Cadet 736-3008

WASHER, .344 X .750 X .105
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0751

BOLT, 1/4 X 1/2 TYPE 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

WASHER 1/4 LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 712-3006

NUT, 1/4 TYPE 5

$4.99

$

In Stock, Qty 17

0

Cub Cadet 710-3008

BOLT 5/16 X 3/4 TYPE 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3000

WASHER .281 X .750 X .105
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

Cub Cadet 736-0119

WASHER 5/16 LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

NUT, 5/16 TYPE 5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 703-0586

SHROUD ASSY, 36 IN. MOWER

Variations

Cub Cadet 703-0586-0637

SHROUD - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 710-3008

BOLT 5/16 X 3/4 TYPE 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

WASHER 5/16 LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

NUT, 5/16 TYPE 5

$4.49

$

In Stock, Qty 20+

0
