394 XP - Husqvarna Chainsaw (SN: 19980900001 & Above) FUEL TANK Parts Diagram

Chainsaw

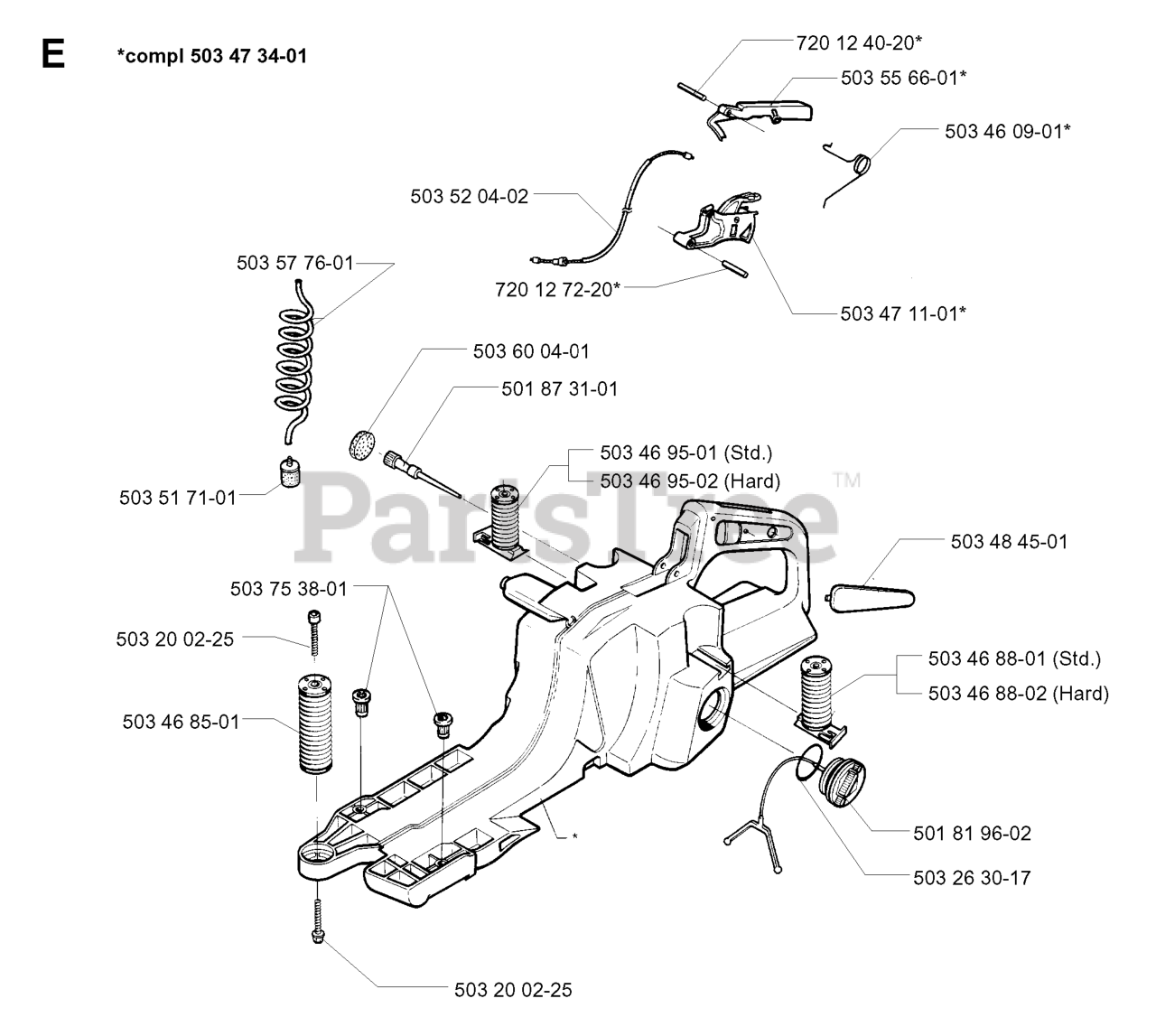

FUEL TANK Parts Diagram

  • Title

501 87 31-01

Husqvarna 501873101

FUEL TANK VENT

$13.99

$

In Stock, Qty 5

0

503 46 85-01

Husqvarna 503468501

SPRING FRONT

$30.99

$

Usually ships in 3-10 days

0

503 51 71-01

Husqvarna 503517101

FUEL FILTER

$13.99

$

In Stock, only 1 left!

0

503 60 04-01

Husqvarna 503600401

FILTER PLUG

$7.49

$

In Stock, only 1 left!

0

503 46 88-02

Husqvarna 503468802

ANTIVIBE ELEMENT

Note: HARD

$20.99

$

Usually ships in 3-10 days

0

503 46 95-01

Husqvarna 503469501

SPRING

Note: STD.

$17.99

$

Usually ships in 3-10 days

0

720 12 72-20

Husqvarna 720127220

PIN CPH8 4X20

$4.99

$

In Stock, only 1 left!

0

503 75 38-01

Husqvarna 503753801

THREAD INSERT

$6.99

$

Usually ships in 3-10 days

0

503 46 09-01

Husqvarna 503460901

SPRING

$

$

Not available

503 46 95-02

Husqvarna 503469502

ANTIVIBE ELEMENT HARD

Note: HARD

$22.99

$

Usually ships in 3-10 days

0

503 55 66-01

Husqvarna 503556601

THROTTLE CATCH

$7.99

$

Usually ships in 3-10 days

0

503 46 88-01

Husqvarna 503468801

SPRING L

Note: STD.

$20.99

$

Usually ships in 3-10 days

0

503 48 45-01

Husqvarna 503484501

HANDLE FILLER
(Superseded to 537033401)

$9.49

$

In Stock, Qty 7

0

720 12 40-20

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

503 20 02-25

Husqvarna 503200225

SCREW

$4.99

$

In Stock, Qty 7

0

503 47 11-01

Husqvarna 503471101

LEVER

$

$

Not available

503 52 04-02

Husqvarna 503520402

THROTTLE WIRE

$

$

Not available

503 26 30-17

Husqvarna 503263017

O-RING

$8.99

$

In Stock, Qty 18

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$11.99

$

In Stock, only 4 left!

0

503 57 76-01

Husqvarna 503577601

FUEL HOSE
(Superseded to 544325001)

$9.99

$

Usually ships in 3-10 days

0

503 47 34-01

Husqvarna 503473401

TANK
(Superseded to 503473404)

$241.99

$

In Stock, only 1 left!

0
