394 XP - Husqvarna Chainsaw (SN: 19980900001 & Above) CYLINDER PISTON Parts Diagram

Chainsaw

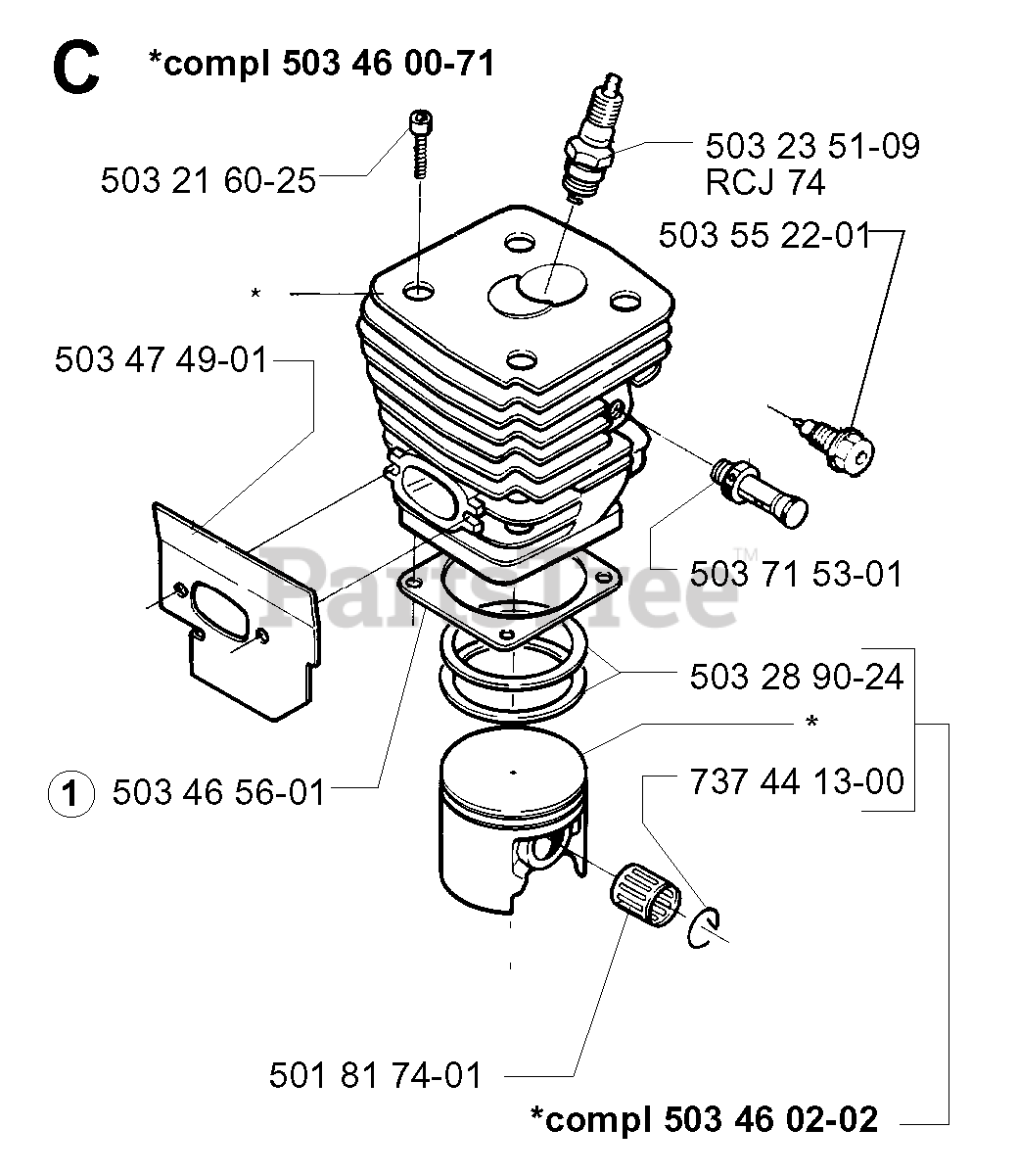

CYLINDER PISTON Parts Diagram

  • Title

503 28 90-24

Husqvarna 503289024

PISTON RING

$31.99

$

In Stock, only 1 left!

0

503 46 56-01

Husqvarna 503465601

GASKET

$6.99

$

In Stock, only 1 left!

0

501 81 74-01

Husqvarna 501817401

NEEDLE BEARING
(Superseded to 503256101)

$28.99

$

In Stock, only 1 left!

0

503 47 49-01

Husqvarna 503474901

EXHAUST GASKET

$10.99

$

In Stock, only 1 left!

0

503 46 00-71

Husqvarna 503460071

Cylinder

$

$

Not available

503 21 60-25

Husqvarna 503216025

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 23 51-09

Husqvarna 503235109

SPARK PLUG RCJ6Y NLA
(Superseded to 530030179)

Note: RCJ 74

$7.49

$

In Stock, only 1 left!

0

737 44 13-00

Husqvarna 737441300

CLIP

$2.99

$

In Stock, only 2 left!

0

503 71 53-01

Husqvarna 503715301

DECOMPRESSION VALVE

$34.99

$

Usually ships in 3-10 days

0

503 46 02-02

Husqvarna 503460202

PISTON
(Superseded to 506155602)

$171.93

$

Usually ships in 3-10 days

0

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0
