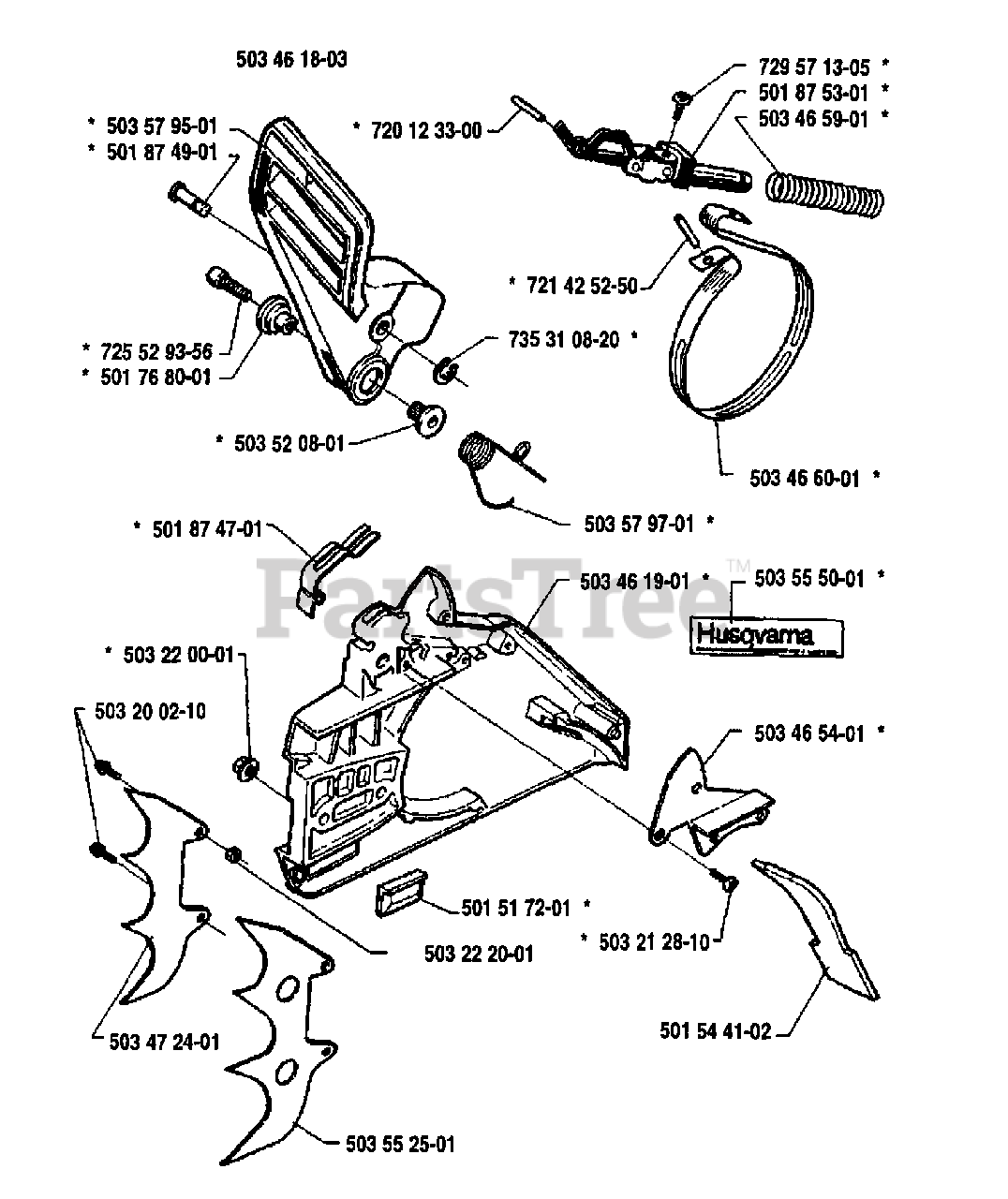

394 - Husqvarna Chainsaw (1992-01) Chain Brake Assembly Parts Diagram

Chainsaw

Chain Brake Assembly Parts Diagram

  • Title
503461803

Husqvarna 503461803

CHAIN BRAKE CPL 394
(Superseded to 503731506)

$159.99

$

Usually ships in 3-10 days

0

503579501

Husqvarna 503579501

HAND GUARD CPL
(Superseded to 503760801)

$34.99

$

In Stock, only 2 left!

0

501874901

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

Usually ships in 3-10 days

0

720123300

$3.49

$

In Stock, only 4 left!

0

725529356

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 2 left!

0

501768001

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 6

0

503520801

Husqvarna 503520801

PIVOT SLEEVE L

$11.99

$

Usually ships in 3-10 days

0

501874701

$4.99

$

In Stock, only 3 left!

0

735310820

$4.99

$

In Stock, Qty 20+

0

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

$

$

Currently unavailable

503579701

$5.99

$

Usually ships in 3-10 days

0

503461901

Husqvarna 503461901

COVER
(Superseded to 503731506)

$159.99

$

Usually ships in 3-10 days

0

503555001

Husqvarna 503555001

STICKER
(Superseded to 537329501)

$4.99

$

In Stock, only 4 left!

0

729571305

Husqvarna 729571305

SCREW
(Superseded to 503212810)

$3.99

$

In Stock, Qty 12

0

501875301

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 1 left!

0

503465901

$8.99

$

In Stock, only 1 left!

0

503465401

$

$

Not available

503212810

$3.99

$

In Stock, Qty 12

0

501544102

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 2 left!

0

501517201

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, only 4 left!

0

503222001

Husqvarna 503222001

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available

503472401

Husqvarna 503472401

SPIKE OUTER EUROPE 394
(Superseded to 503712401)

$20.99

$

In Stock, only 1 left!

0

503552501

Husqvarna 503552501

SPIKE
(Superseded to 503690201)

$30.99

$

Usually ships in 3-10 days

0

503200210

Husqvarna 503200210

SCREW
(Superseded to 503200710)

$6.49

$

In Stock, Qty 20+

0

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0
