394 (190-394-100) - Cub Cadet 50" Mower Deck Deck Drive 50 inch Parts Diagram

50" Mower Deck

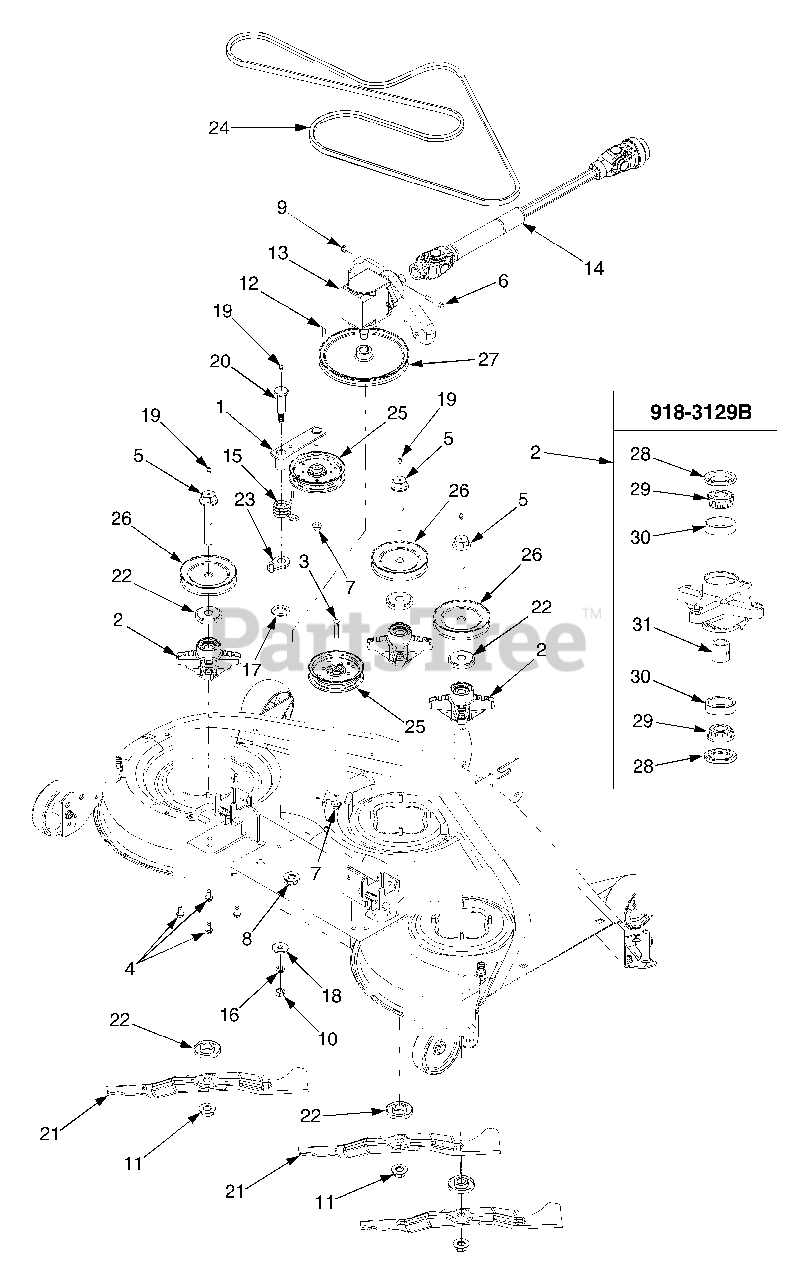

Deck Drive 50 inch Parts Diagram

  • Title

1

Cub Cadet 603-0741-0716

Arm, Idler

$107.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-3129B

Spindle Assembly
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

4

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .7

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1336A

Bolt, Spindle, 3/4-16 x 4.25

$24.99

$

In Stock, Qty 8

0

6

Cub Cadet 710-3251

Screw, Socket Hd. 5/16-18 x 1.75 GR5

$5.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-04065

Nut, Hex Insert Lock, 3/8-16 GRF

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0417A

Nut, Flange, 58-18

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR2

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 13

0

13

Cub Cadet 717-3447

Drive, Right Angle
(Superseded to 917-3447)

$1003.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3453

Shaft, Drive

$1114.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3488

Half Shaft, Front Only

Note: Not shown

$628.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3489

Half Shaft, Rear Only

Note: Not shown

$

$

Not available

14

Cub Cadet 759-04219

Repair Kit, Yoke Lock

Note: Works with Weasler brand Drive shaft only. Weasler name on yoke. Not shown

$97.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-3067

Spring, Torsion

$23.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 736-0277

Washer, Flat, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0319

Washer, Flat, .45 x 1.38 x .134
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-3172

Bolt, Shoulder, .68 x 2.11:7/ 16-14

$20.99

$

In Stock, only 1 left!

0

21

Cub Cadet 759-04047

Blade, 2 in 1, 17.9"
(Superseded to 742P04068C)

Note: Round hole

$31.99

$

In Stock, Qty 20+

0

21

Cub Cadet 742-04067C

Blade 17.9", High Lift, Bagging blade
(Superseded to 759-04046)

Note: not shown, Round Hole

$

$

Not available

22

Cub Cadet 748-3065

Spacer, Deck Spindle
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

23

Cub Cadet 748-3100

Retainer, Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

24

Cub Cadet 754-0295

Belt, V 1/2 x 111.5"
(Superseded to 954-0295)

$90.99

$

In Stock, only 1 left!

0

25

Cub Cadet 756-04129

Pulley, Flat Idler, 4.25 OD
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

26

Cub Cadet 756-3089

V-Pulley, 4.0"

$36.99

$

In Stock, only 3 left!

0

27

Cub Cadet 756-3098

Pulley, Drive

$109.99

$

In Stock, only 1 left!

0

28

Cub Cadet 721-3018A

Seal, Oil, 1.25 x 1.874 x .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

29

Cub Cadet 741-04089

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

30

Cub Cadet 741-04091

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet 750-04409

Spacer, Bearing

$20.99

$

In Stock, only 1 left!

0
