391 (190-391-100) - Cub Cadet 36" Mower Deck att Deck Assembly Parts Diagram

36" Mower Deck

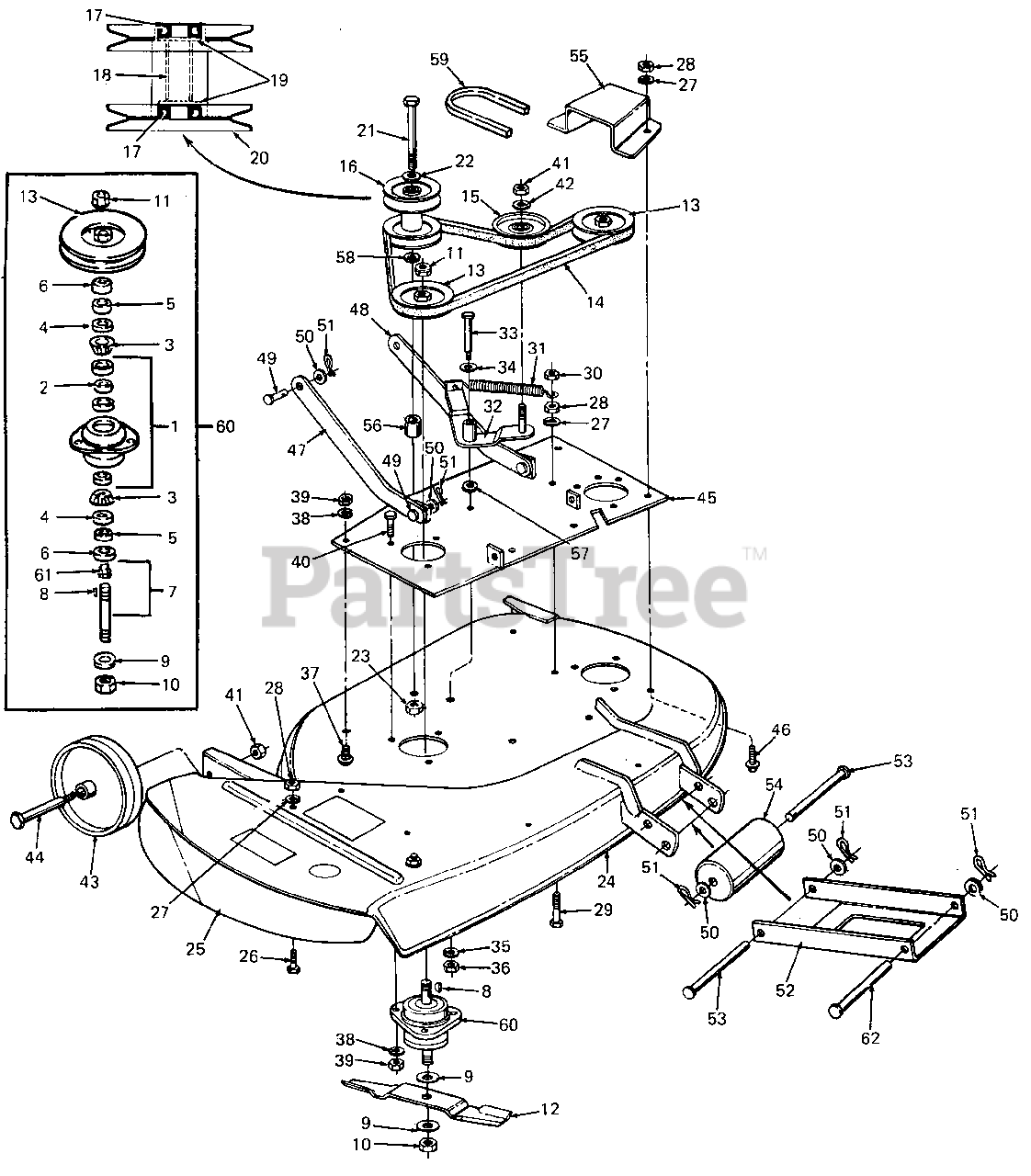

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 759-3226

Housing Assy, Spindle w/Cups
(Superseded to 959-3226)

$

$

Not available

2

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$12.99

$

In Stock, only 3 left!

0

3

Cub Cadet 741-3028

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

4

Cub Cadet 721-3018

Seal, Oil, 1.25 ID X 1.87 OD X .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-3171

Spacer, .755 X 1.25 X .44
(Superseded to 911-3171)

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-1387

Cup, Spindle
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

7

Cub Cadet 759-3370

Shaft, Spindle w/Fitting
(Superseded to 959-3370)

$93.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 X 3/4

$4.99

$

In Stock, only 2 left!

0

9

Cub Cadet 736-3014

Washer, .781 X 2.0 X .105

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 712-3018

Nut, 3/4-16 GR8

$8.99

$

In Stock, Qty 6

0

11

Cub Cadet 712-3021

Nut, Hex Insert Top Lock Jam, 3/4-16
(Superseded to 912-3021)

$

$

Not available

12

Cub Cadet 742-3007

Blade, Mower
(Superseded to 759-3815)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-3403

Blade, Mower - Hard Coated

$

$

Not available

13

Cub Cadet 756-3008

V-Pulley, 4L

$53.99

$

In Stock, Qty 6

0

14

Cub Cadet 754-3026

Belt, Full "V", 1/2 X 60" Lg
(Superseded to 954-3026A)

$45.99

$

In Stock, only 4 left!

0

15

Cub Cadet 756-3005

Pulley, Flat Idler, 3.88 X .38

$45.99

$

In Stock, Qty 20+

0

16

Cub Cadet 703-1298

Pulley Assy, Double
(Superseded to 759-3651)

Note: [Order 759-3651 which includes Ref No. 17 (Qty 2), 18, 19 (Qty 2) & 20]

$259.99

$

In Stock, only 4 left!

0

17

Cub Cadet 741-0155

Bearing, Ball, .62 ID X 1.38 OD X .44 Thk
(Superseded to 941-0155)

Note: (Used in 703-1298 Pulley Assy)

$23.99

$

In Stock, Qty 15

0

Cub Cadet 741-0524

Bearing, Ball, .62 ID X 1.57 OD X .44 Thk
(Superseded to 941-0524A)

Note: (Used in 759-3651 Pulley Assy)

$23.99

$

In Stock, Qty 20+

0

18

Cub Cadet 750-3043

Spacer, Pulley, .64 ID X .81 OD X 2.25 Lg

Note: (Used in 703-1298 Pulley Assy)

$

$

Not available

Cub Cadet 750-3070

Spacer, Pulley, .64 ID X .88 OD X 2.15 Lg

Note: (Used in 759-3651 Pulley Assy)

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

Note: (Used in 759-3651 Pulley Assy)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 756-3051

Pulley, Double
(Superseded to 956-3051)

Note: (Used in 759-3651 Pulley Assy)

$150.99

$

In Stock, Qty 7

0

21

Cub Cadet 710-3151

Bolt, 5/8-18 X 4.25 GR5

$20.99

$

In Stock, Qty 12

0

22

Cub Cadet 736-0290

Washer, .625 X 1.0 X .06 HDN

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0923

Nut, Lock, 5/8-18

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 759-3232

Deck w/Graphics, Mower
(Superseded to 759-3232-0716)

Variations

Cub Cadet 759-3232-0498

HOUSING-MOW - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 759-3232-0716

HOUSING-MOWER 36LT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

25

Cub Cadet 703-0393

Deflector, Mower

$

$

Not available

26

Cub Cadet 710-3008

Bolt, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-3010

Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0805

Bolt, 3/8-16 X 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3009

Nut, Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-0480

Spring, Extension, .81 OD X 4.75

$

$

Not available

32

Cub Cadet 703-1291

Arm, Idler

$

$

Not available

33

Cub Cadet 738-3005

Bolt, Shoulder, .68 X 1.56 X 7/16-14
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

34

Cub Cadet 736-0287

Washer, .793 X 1.25 X .06 HDN

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

36

Cub Cadet 712-3019

Nut, 7/16-14

$6.99

$

In Stock, only 1 left!

0

37

Cub Cadet 710-0389

Bolt, 3/8-16 X .75 CRG

$4.49

$

In Stock, Qty 10

0

38

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-3017

Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0514

Bolt, 3/8-16 X 1.0

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-3000

Nut, Lock, 3/8-16
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

42

Cub Cadet 736-0185

Washer, .406 X .75 X .063

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 734-0973

Wheel, Deck, 5.0 Dia

$12.99

$

In Stock, Qty 20+

0

44

Cub Cadet 738-0373

Bolt, Shoulder, .498 X 1.53 X 3.8-16
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

45

Cub Cadet 759-3364

Plate, Spindle Mounting

$

$

Not available

46

Cub Cadet 710-3058

Screw, Hex Hd Dog Pt Tapp, 5/16-18 X .75

$

$

Not available

47

Cub Cadet 703-1276

Link, Deck

$

$

Not available

48

Cub Cadet 703-1290

Link Assy, Deck

$

$

Not available

49

Cub Cadet 711-0332

Pin, Clevis, .499 X .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

50

Cub Cadet 736-0272

Washer, .510 X 1.0 X .06

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available

52

Cub Cadet 703-1293

Bracket, Deck Front Support
(Superseded to 703-1999-0498)

$88.99

$

In Stock, only 1 left!

0

53

Cub Cadet 711-3068

Pin, Clevis, 1/2 Dia X 7.68

$21.99

$

In Stock, only 2 left!

0

54

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

55

Cub Cadet 703-1308

Cover, Pulley

$

$

Not available

56

Cub Cadet 759-3235

Spacer, .631 X 1.25 X .33

$

$

Not available

57

Cub Cadet 736-0226

Washer, .469 X .88 X .063
(Superseded to 936-0226)

$3.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 711-3214

Bushing, .63 X 1.25 X .33

$

$

Not available

59

Cub Cadet 754-3029

V-Belt, 4L X 59" Lg
(Superseded to 954-3029)

$32.99

$

In Stock, Qty 5

0

60

Cub Cadet 759-3293

Spindle Service Kit
(Superseded to 959-3293)

$

$

Not available

61

Cub Cadet 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 703-1297

Rod, Deck Support

$57.99

$

In Stock, only 1 left!

0
