39094 - Toro 36" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) Transmission Drive Assembly Parts Diagram

36" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

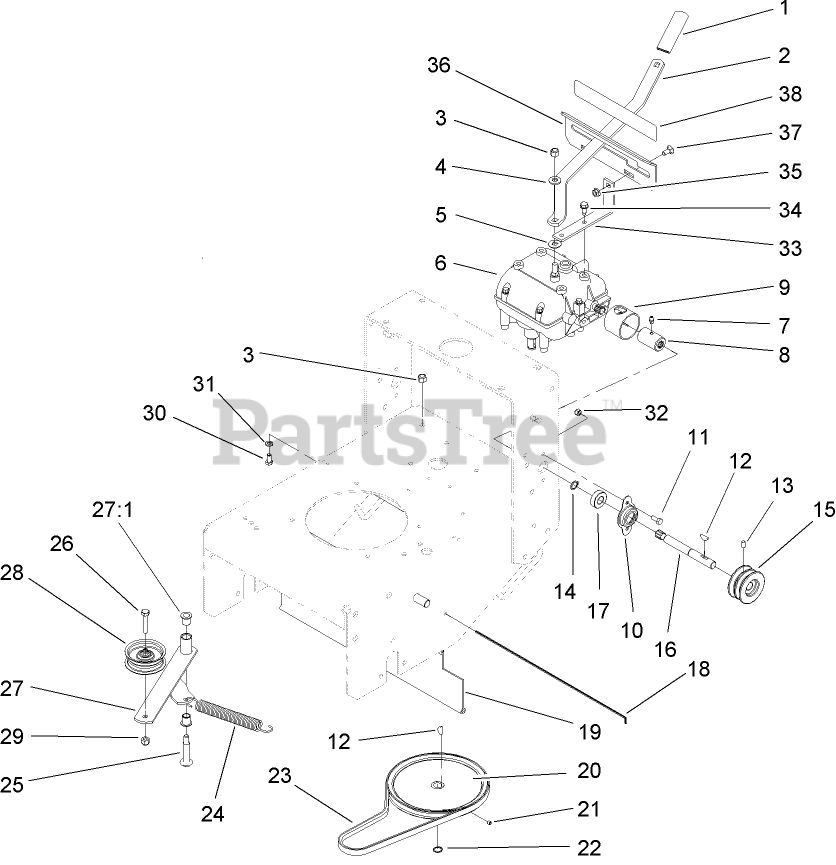

Transmission Drive Assembly Parts Diagram

  • Title
1

$15.99

$

Usually ships in 3-6 days

0

2

Toro 98-3274-03

LEVER-SHIFT

$53.99

$

In Stock, only 1 left!

0

3

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

4

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 1-323379

WASHER

$3.49

$

In Stock, only 2 left!

0

6

Toro 1-323500

See Supercession: 137-4105
(Superseded to 137-4105)

$620.99

$

In Stock, only 1 left!

0

7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

8

Toro 1-323680

COUPLER

$41.99

$

In Stock, only 2 left!

0

9

Toro 51-4220

GUARD-COUPLER

$19.99

$

In Stock, only 1 left!

0

10

Toro 1-323254

FLANGE-OUTPUT

$10.99

$

In Stock, Qty 11

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

13

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 20+

0

14

Toro 32151-62

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

15

Toro 105-2698

PULLEY-TRANSMISSION

$55.99

$

In Stock, Qty 5

0

16

Toro 104-1102

SHAFT-OUTPUT

$84.99

$

In Stock, Qty 6

0

17

Toro 1-323252

BEARING-SHAFT

$18.99

$

In Stock, Qty 9

0

18

Toro 95-1529

ROD-SHIELD

$5.49

$

Usually ships in 3-6 days

0

19

Toro 95-1526

SHIELD-TRAILING

$80.99

$

Usually ships in 3-6 days

0

20

Toro 105-5646

PULLEY-DRIVEN

$131.99

$

Usually ships in 3-6 days

0

21

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

22

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

23

Toro 105-5668

V-BELT

$37.99

$

In Stock, only 4 left!

0

24

Toro 80-6610

SPRING-EXTENSION

$26.99

$

In Stock, only 2 left!

0

25

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

26

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 16-7509

LEVER-IDLER

$186.99

$

Usually ships in 3-6 days

0

27:1

Toro 256-155

BUSHING-FLANGE

$2.49

$

In Stock, only 2 left!

0

28

Toro 62-4540

PULLEY

$92.99

$

In Stock, only 2 left!

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

31

Toro 325-34

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 1-323389-03

BRACKET-PLATE, SHIFT

$30.99

$

Usually ships in 3-6 days

0

34

Toro 9264964

SCREW-HWH, THREAD CUT

$1.49

$

Usually ships in 3-6 days

0

35

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

36

Toro 1-323387-03

PLATE-SHIFT

$67.99

$

Usually ships in 3-6 days

0

37

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

38

Toro 98-3256

DECAL-SPEED, GROUND

$18.99

$

Usually ships in 3-6 days

0
