39092 - Toro 32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH430V-AS35 Parts Diagram

32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

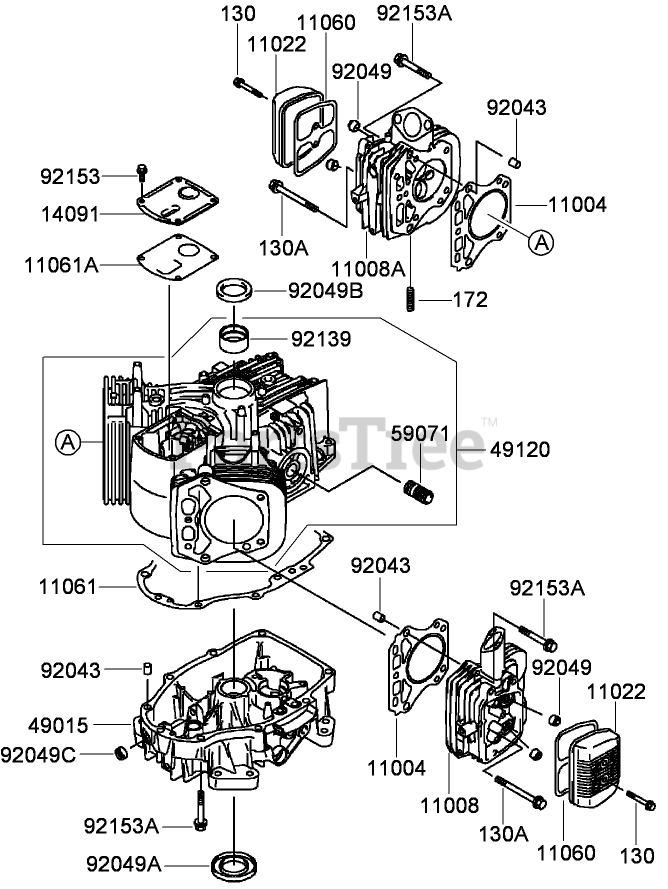

CYLINDER AND CRANKCASE ASSEMBLY KAWASAKI FH430V-AS35 Parts Diagram

  • Title

11004

Kawasaki 11004-7018

GASKET-HEAD

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, Qty 16

0

11008

Kawasaki 11008-7021

HEAD-CYLINDER, No. 2
(Superseded to 11008-7011)

Note: Obtain parts from www.kawpowerepc.com

$234.99

$

In Stock, only 1 left!

0

11008A

Kawasaki 11008-7022

HEAD-CYLINDER, No. 1
(Superseded to 11008-7010)

Note: Obtain parts from www.kawpowerepc.com

$233.99

$

In Stock, Qty 5

0

11022

Toro 11022-7003

Case-Rocker

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

11060

Kawasaki 11060-7001

GASKET-CASE, ROCKER

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7007

GASKET-COVER, CRANKCASE

Note: Obtain parts from www.kawpowerepc.com

$13.99

$

In Stock, Qty 13

0

11061A

Kawasaki 11061-7008

GASKET-BREATHER
(Superseded to 99996-6099)

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, Qty 8

0

14091

Kawasaki 14091-7007

COVER

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

49015

Kawasaki 49015-7032

COVER-CRANKCASE
(Superseded to 49015-7080)

Note: Obtain parts from www.kawpowerepc.com

$173.99

$

Usually ships in 2-5 days

0

49120

Kawasaki 49120-7015

CRANKCASE

Note: Obtain parts from www.kawpowerepc.com

$549.99

$

In Stock, only 1 left!

0

59071

Kawasaki 59071-2079

Joint

Note: Obtain parts from www.kawpowerepc.com

$6.49

$

In Stock, Qty 8

0

92043

Kawasaki 92043-7001

Pin

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92049

Kawasaki 92049-7001

SEAL-OIL, R V C2 (6X11X10.2)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

Usually ships in 2-5 days

0

92049A

Kawasaki 92049-7015

SEAL-OIL, S D (35X62X8 L HSH)

Note: Obtain parts from www.kawpowerepc.com

$8.49

$

In Stock, Qty 20+

0

92049B

Kawasaki 92049-7016

SEAL-OIL, S D (35X48X8 R HSH)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92049C

Kawasaki 92049-7019

SEAL-OIL, S O (8X14X5 HSH)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92139

Kawasaki 92139-7008

BUSHING

Note: Obtain parts from www.kawpowerepc.com

$13.99

$

In Stock, Qty 12

0

92153

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153A

Kawasaki 92153-7054

BOLT (8X50)

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

130

Kawasaki 130B0640

Bolt-Flanged (6X40)
(Superseded to 130AA0640)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130CA0875

BOLT-FLANGED (8X75)
(Superseded to 130T0875)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 9

0

172

Toro 172G0818

Bolt-Stud (8X18)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
