39092 - Toro 32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) CARRIER ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

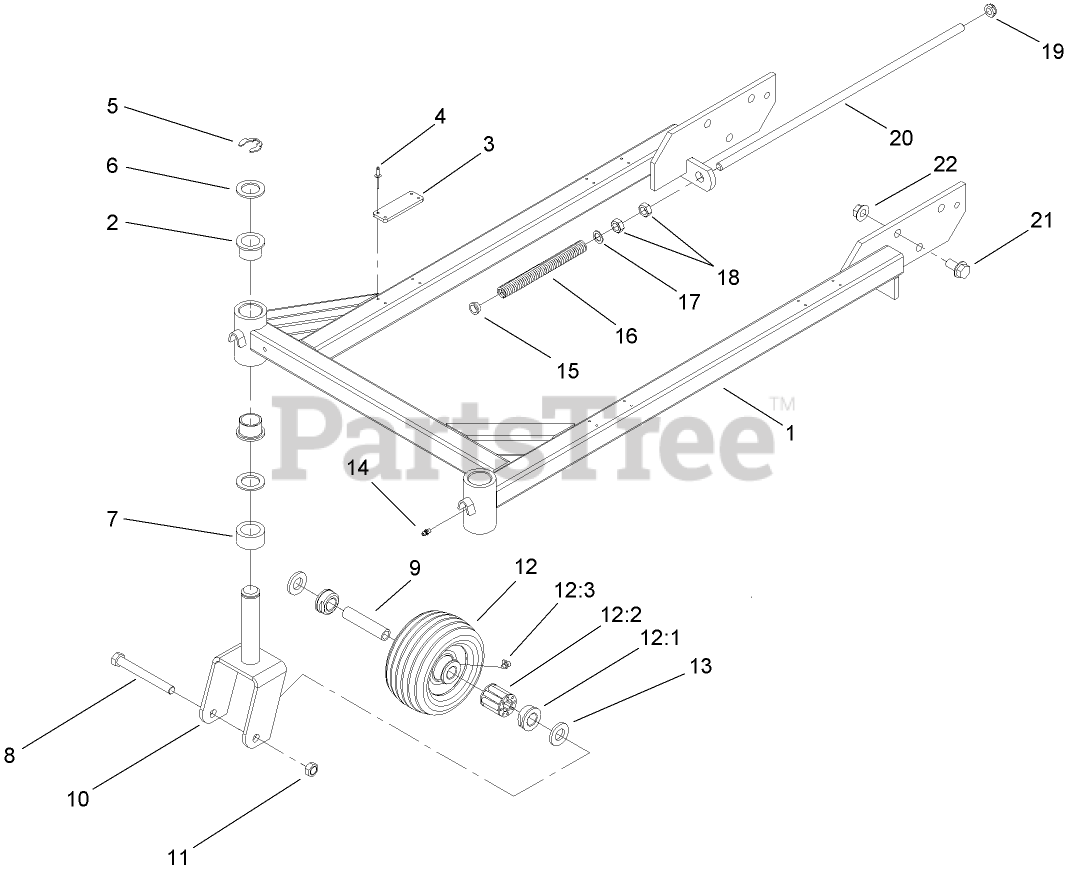

CARRIER ASSEMBLY Parts Diagram

  • Title

1

Toro 74-0080

CARRIER FRAME ASM

Note: Not serviced separately

$

$

Not available

2

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 10

0

3

Toro 74-0330

PAD-RUBBER

$12.99

$

Usually ships in 3-6 days

0

4

Toro 3269-24

RIVET

$2.99

$

In Stock, Qty 12

0

5

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

6

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

7

Toro 93-1166

SPACER-CASTOR

$38.99

$

Usually ships in 3-6 days

0

8

Toro 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

9

Toro 67-6220

SPANNER

$28.99

$

In Stock, only 1 left!

0

10

Toro 93-1164-01

FORK-CASTER ASM

$236.99

$

Usually ships in 3-6 days

0

11

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

12

Toro 63-8400

CASTER WHEEL ASM

$91.99

$

In Stock, only 4 left!

0

12:1

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, only 2 left!

0

12:2

Toro 63-8580

BEARING-ROLLER

$15.99

$

Usually ships in 3-6 days

0

12:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

13

Toro 67-6570

SPACER-WHEEL

$19.99

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

16

Toro 74-0290

SPRING

$27.99

$

Usually ships in 3-6 days

0

17

Toro 41-8440

WASHER

$1.99

$

In Stock, only 4 left!

0

18

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

19

Toro 74-0310

SHAFT-ADJUSTING

$64.99

$

In Stock, only 2 left!

0

20

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

21

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

22

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0
