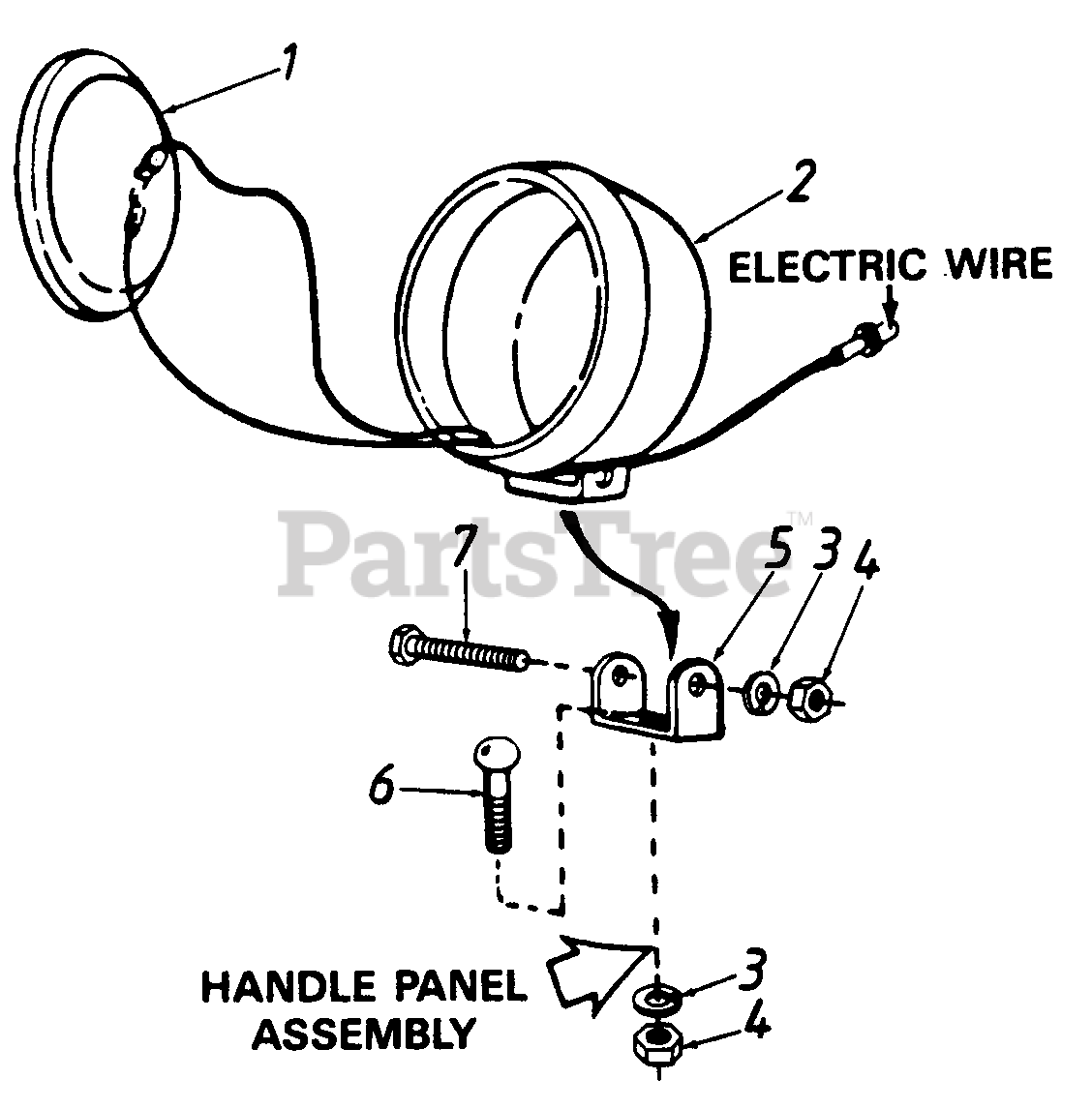

390255 - MTD Headlamp Kit (1990) 18 Parts Diagram

Headlamp Kit

18 Parts Diagram

  • Title
1

MTD 725-1300

Sealed Beam Headlight
(Superseded to 925-1300)

$

$

Not available

2

MTD 725-1301

Lamp Assembly

$

$

Not available

3

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

MTD 13359

Lamp Mounting Bracket

$

$

Not available

6

MTD 710-0276

Carriage Bolt 5/16-18 x 1" Lg

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0116

Hex Bolt 5/16-18 x 2" 4.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

MTD 725-1302

Adapter

Note: (Not Shown)

$

$

Not available
