3900 (5901281) - Massey Ferguson 61" Zero-Turn Mower, 27hp Briggs & Stratton 61" Mower Deck - Housings, Covers & Spindles Parts Diagram

61" Zero-Turn Mower, 27hp Briggs & Stratton

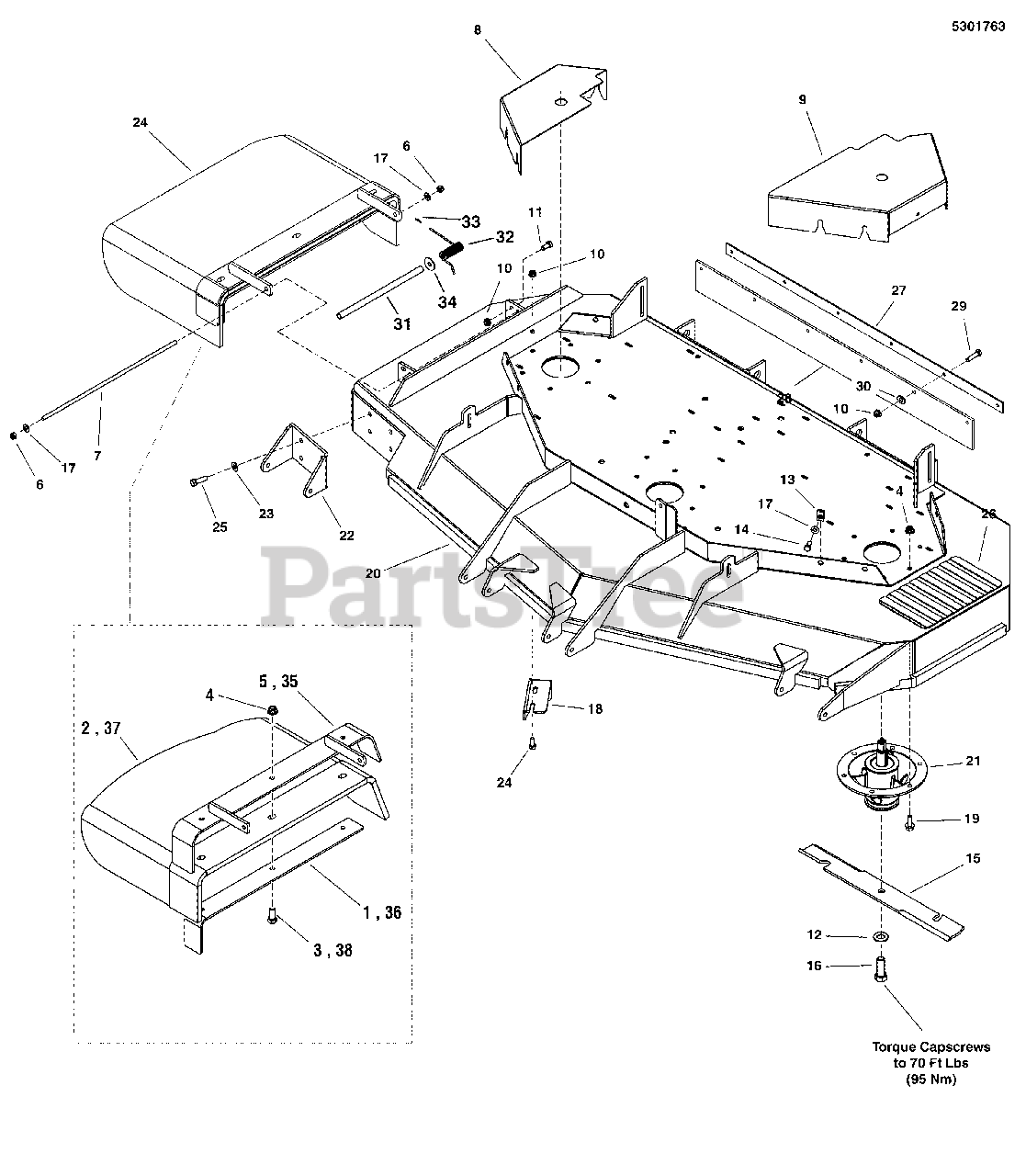

61" Mower Deck - Housings, Covers & Spindles Parts Diagram

  • Title

1

Simplicity 5408018AYP

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK

Note: (S/N: 2017094785 & Below)

$20.99

$

Usually ships in 2-12 days

0

2

Simplicity 5404834YP

CHUTE, DISCHARGE, BEND RUBBER (SV)

Note: (S/N: 2017094785 & Below)

$158.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025013X12

BOLT, 3/8-16 X 1-1/2 GD5 YZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017094785 & Below)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5404716AYP

WELD, FRAME CHUTE, 61 - BLK

Note: (S/N: 2017094785 & Below)

$100.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

7

Simplicity 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 5405308D

GUARD, RH - 61 - S200XI - RED
(Superseded to 5405308DYP)

$53.99

$

Usually ships in 2-12 days

0

9

Simplicity 5405484D

GUARD, 61 - LH - RED
(Superseded to 5405484DYP)

$60.99

$

In Stock, only 1 left!

0

10

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 703354

SCREW, 5/16-18

Note: (80003531)

$5.49

$

In Stock, Qty 6

0

12

Simplicity 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 10

0

13

Simplicity 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

14

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5101755S

BLADE, 21 X .25 X 2.5, 1 X 3.5 (SET OF 3)

$

$

Not available

16

Simplicity 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Simplicity 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025390X8

BOLT, 3/8-16 X 1, FLANGE
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5600436

DECK SHELL W/ DECALS, 61"

Note: (S/N: 2016788093 & Below)

$2792.99

$

Usually ships in 2-12 days

0

20

Simplicity 5600764

DECK SHELL W/ DECALS, 200XT 61 - SPR RED

Note: (S/N: 2016788094 - 2016953545)

$2792.99

$

Usually ships in 2-12 days

0

20

Simplicity 5600832

DECK SHELL W/DECALS,61,200XT-SPR/MASS

Note: (S/N: 2016953546 & Above)

$2792.99

$

Usually ships in 2-12 days

0

21

Simplicity 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

22

Simplicity 5408810D

PLATE, BRACKET, ANTI SCALP - RED
(Superseded to 5408810DYP)

$41.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

25

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4 GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

26

Simplicity 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

27

Simplicity 5405322A

PLATE, SUPPORT - BLK
(Superseded to 5405322AYP)

$39.99

$

Usually ships in 2-12 days

0

28

Simplicity 5102037

FLAP, STRIPER, 61 DECK
(Superseded to 5102037YP)

$75.99

$

Usually ships in 2-12 days

0

29

Simplicity 5025011S8

BOLT, 5/16-18 X 1 GD5 YZ

$

$

Not available

30

Simplicity 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

31

Simplicity 5050086X10P75

TUBE, 1/2 X 3/8 X 10.75 BLACK POLY
(Superseded to 5050086X10P75YP)

Note: (S/N: 2016558252 & Below)

$14.99

$

Usually ships in 2-12 days

0

32

Simplicity 5023385

SPRING, TORSION
(Superseded to 5023385SM)

Note: (S/N: 2016558252 & Below)

$8.49

$

Usually ships in 2-12 days

0

33

Simplicity 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

Note: (S/N: 2016558252 & Below)

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

Note: (S/N: 2016558252 & Below)

$3.99

$

In Stock, only 1 left!

0

35

Simplicity 5413387AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 84003246)

Note: (S/N: 2017094786 & Above)

$84.99

$

Usually ships in 2-12 days

0

36

Simplicity 5413385AYP

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

Note: (S/N: 2017094786 & Above)

$28.99

$

In Stock, Qty 5

0

37

Simplicity 5413499YP

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017094786 & Above)

$170.99

$

Usually ships in 2-12 days

0

38

Simplicity 5025146X12YP

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ

Note: (S/N: 2017094786 & Above)

$3.99

$

Usually ships in 2-12 days

0
