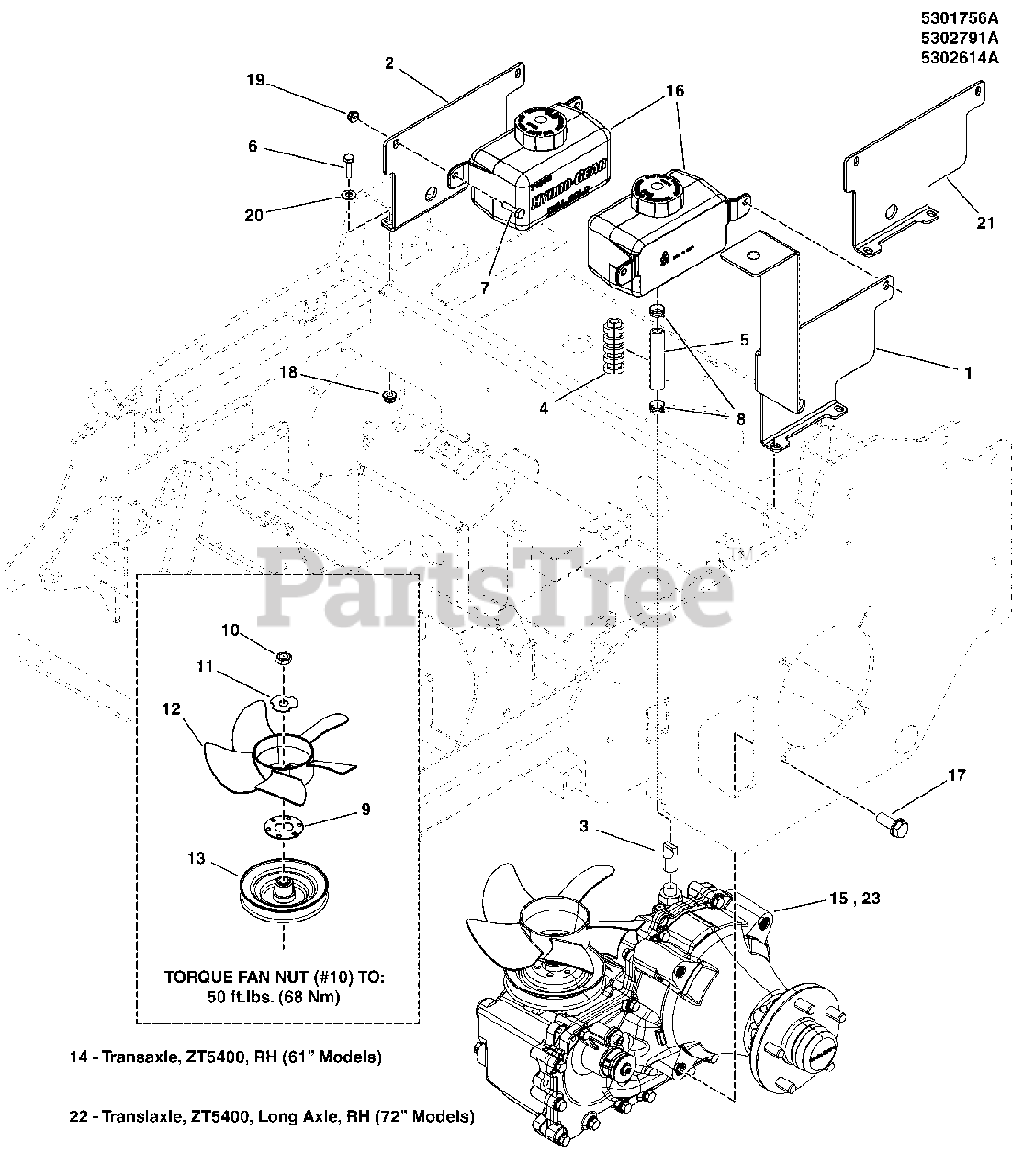

3900 (5900531) - Massey Ferguson 61" Zero-Turn Mower, 30hp Briggs & Stratton Hydraulic Group S/N: 2016950123 & Above Parts Diagram

61" Zero-Turn Mower, 30hp Briggs & Stratton

Hydraulic Group S/N: 2016950123 & Above Parts Diagram

  • Title

1

Simplicity 5412888A

PLATE, HYD BOT FUEL MNT LH, S200XT - BLK

Note: (Models with Two Fuel Tanks)

$36.99

$

Usually ships in 2-12 days

0

2

Simplicity 5412879A

PLATE, HYD BOT MOUNT, RH, S200XT - BLK

$

$

Currently unavailable

3

Simplicity 5101987X1

FITTING, BREATHER, ZT5400
(Superseded to 5101987X1YP)

$26.99

$

Usually ships in 2-12 days

0

4

Simplicity 5100384X7

LOOM, CONVOLUTED SPLIT, 1 ID - 7.00 LONG

$

$

Not available

5

Simplicity 5050933X9

HOSE, 5/8 PUSH LOCK, 9.00
(Superseded to 5050933X9FS)

$13.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

7

Simplicity 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 5102917

SPACER, ANTI ROTATE, ZT5400
(Superseded to 5102917YP)

$5.99

$

In Stock, only 1 left!

0

10

Simplicity 5102916

NUT, ZT5400
(Superseded to 5102916YP)

$3.49

$

In Stock, only 1 left!

0

11

Simplicity 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5102874

FAN, ZT5400
(Superseded to 5102874YP)

$27.99

$

In Stock, only 1 left!

0

13

Simplicity 5102872

PULLEY, ZT5400 (53177)
(Superseded to 5102872YP)

$71.99

$

In Stock, only 2 left!

0

14

Simplicity 5102871

TRANSAXLE, ZT5400, RH, STANDARD AXLE (1015-1024R)
(Superseded to 5102871YP)

Note: (61" Models - Not illustrated)

$1956.99

$

Usually ships in 2-12 days

0

15

Simplicity 5102870

TRANSAXLE, ZT5400, LH, STANDARD AXLE (1015-1024)
(Superseded to 5102870YP)

Note: (61" Models)

$1789.99

$

Usually ships in 2-12 days

0

16

Simplicity 5101998

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER
(Superseded to 5101998YP)

$68.99

$

In Stock, only 2 left!

0

17

Simplicity 5025535

BOLT, 1/2-13 X 1-1/4, SF, PLT W/PATCH
(Superseded to 5025535YP)

$7.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Simplicity 5413092A

PLATE, HYD BOT MNT, SING TANK S200XT-BLK

Note: (Models with Single Fuel Tanks)

$19.99

$

Usually ships in 2-12 days

0

22

Simplicity 5103963

TRANSAXLE, ZT5400, RH, LONG AXLE (1015-1057R)
(Superseded to 84008008)

Note: (72" Models - Not illustrated)

$2336.99

$

Usually ships in 2-12 days

0

23

Simplicity 5103964

TRANSAXLE, ZT5400, LH, LONG AXLE (1015-1057L)
(Superseded to 5103964YP)

Note: (72" Models)

$2222.99

$

Usually ships in 2-12 days

0
