3900 (5900531) - Massey Ferguson 61" Zero-Turn Mower, 30hp Briggs & Stratton Fuel Tank & Mount Group Parts Diagram

61" Zero-Turn Mower, 30hp Briggs & Stratton

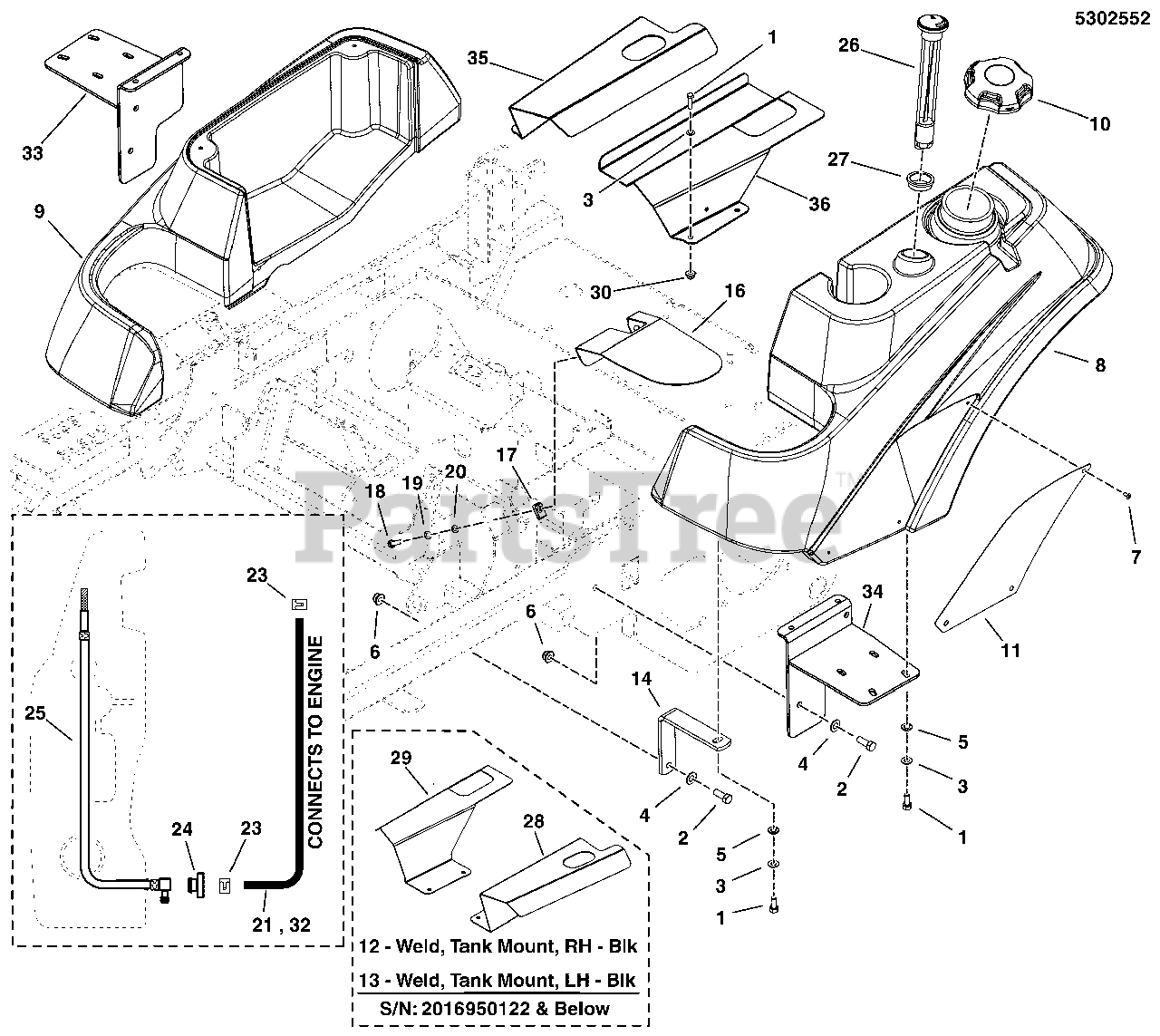

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

2

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

3

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025170

WASHER, 5/16 LOCK YZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5103176

TANK, FUEL, LH, 1500Z
(Superseded to 5103176YP)

$551.99

$

Usually ships in 2-12 days

0

9

Simplicity 5049948

TANK, FENDER, CITATION/ZT4000 - RH
(Superseded to 5049948SM)

$308.99

$

In Stock, only 1 left!

0

10

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

11

Simplicity 5400250D

BADGE, IS1500Z, RED
(Superseded to 5400250DYP)

$54.99

$

Usually ships in 2-12 days

0

12

Simplicity 5407845D

WELD, TANK MOUNT, RH - RED
(Superseded to 5407845AYP)

Note: (S/N: 2016950122 & Below)

$71.99

$

Usually ships in 2-12 days

0

13

Simplicity 5407847D

WELD, TANK MOUNT, LH - RED
(Superseded to 5407847A)

Note: (S/N: 2016950122 & Below)

$67.99

$

Usually ships in 2-12 days

0

14

Simplicity 5407848D

BAR, TANK MOUNT, FRONT - RED
(Superseded to 5407848A)

$29.99

$

Usually ships in 2-12 days

0

15

Simplicity 5407849A

GUARD, MOTION CONTROLS, RH - BLK
(Superseded to 5407849AYP)

Note: (NOT SHOWN)

$20.99

$

Usually ships in 2-12 days

0

16

Simplicity 5407850A

GUARD, MOTION CONTROLS, LH - BLK
(Superseded to 5407850AYP)

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 5050831X14

HOSE, 1/4" FUEL, 14.00"
(Superseded to 5050831X14YP)

Note: (Models with Vanguard Engines)

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 5050833X10

WIRE LOOM, 1/2 ID X 10 IN
(Superseded to 5050833X10YP)

Note: (NOT SHOWN / COVERS FUEL HOSE)

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 5020835

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 5020835SM)

$

$

Not available

24

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

25

Simplicity 5101144

PICKUP TUBE ASM, FUEL TANK

$33.99

$

Usually ships in 2-12 days

0

26

Simplicity 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

27

Simplicity 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 3 left!

0

28

Simplicity 5408362D

GUARD, FUEL MOUNT, LH - RED
(Superseded to 5408362A)

Note: (S/N: 2016950122 & Below)

$42.99

$

Usually ships in 2-12 days

0

29

Simplicity 5408363D

GUARD, FUEL MOUNT, RH - RED
(Superseded to 5408363A)

Note: (S/N: 2016950122 & Below)

$42.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 5102753X8P5

FOAM, 1/2 X 1 X 8.50
(Superseded to 5102753X8P5YP)

Note: (NOT SHOWN / LOCATED ON #28)

$5.99

$

Usually ships in 2-12 days

0

32

Simplicity 845503

HOSE, 1/4" FUEL, 37.00"

Note: (Models with Commercial Turf Engines)

$35.99

$

Usually ships in 2-12 days

0

33

Simplicity 5413327AYP

WELD, TANK MOUNT, F200XT, RH - BLK

Note: (S/N: 2016950123 & Above)

$74.99

$

Usually ships in 2-12 days

0

34

Simplicity 5413328AYP

WELD, TANK MOUNT, F200XT, LH - BLK

Note: (S/N: 2016950123 & Above)

$72.99

$

Usually ships in 2-12 days

0

35

Simplicity 5413329AYP

GUARD, FUEL MOUNT, F200XT, RH - BLK

Note: (S/N: 2016950123 & Above)

$50.99

$

Usually ships in 2-12 days

0

36

Simplicity 5413330AYP

GUARD, FUEL MOUNT, F200XT, LH - BLK

Note: (S/N: 2016950123 & Above)

$75.99

$

Usually ships in 2-12 days

0
