390 - Husqvarna Chainsaw (2011-05) CARBURETOR Parts Diagram

Chainsaw

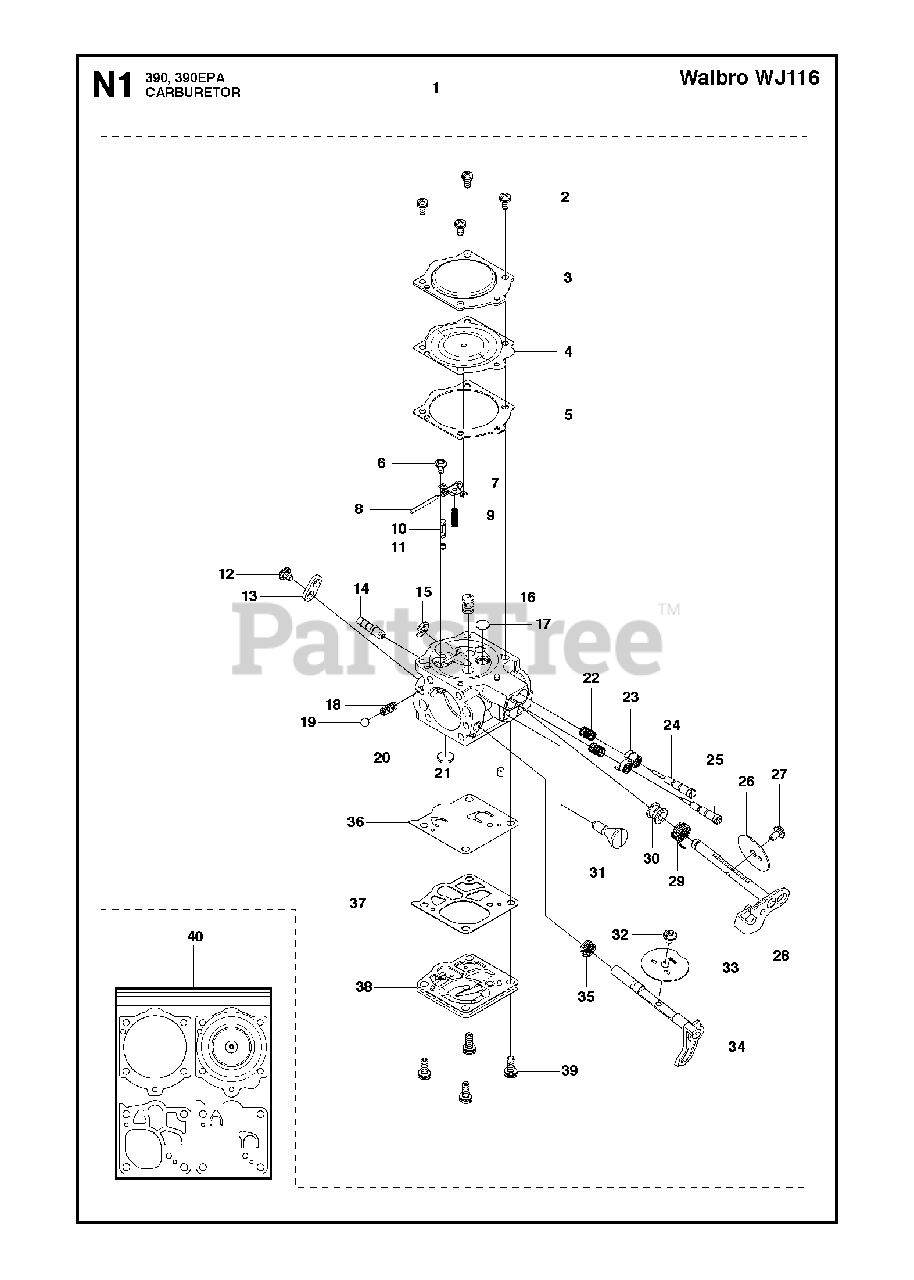

CARBURETOR Parts Diagram

  • Title

1

Husqvarna 501355201

CARBURETOR

$226.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

Note: . 1

$4.99

$

In Stock, only 4 left!

0

3

Husqvarna 505316702

DIAPHRAM COVER

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 505316715

Main Diaphragm

Note: . 1 40

$91.99

$

Usually ships in 3-10 days

0

5

Husqvarna 501467501

GASKET

Note: . 1 40

$10.99

$

In Stock, only 2 left!

0

6

Husqvarna 505316717

SCREW

Note: . 1

$7.99

$

In Stock, Qty 6

0

7

Husqvarna 505316734

LEVER

Note: . 1

$13.99

$

In Stock, Qty 7

0

8

Husqvarna 505316731

PIN

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 504791201

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503563401

INLET NEEDLE

Note: . 1

$17.99

$

In Stock, Qty 9

0

11

Husqvarna 503592301

SEAT IN VALVE PLATED

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 501468701

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 504790701

LEVER CHOKE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505696901

FITTING FUEL INLET
(Superseded to 504790301)

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505316736

E CLIP
(Superseded to 502119801)

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 504790901

NOZZLE

Note: . 1

$21.99

$

Usually ships in 3-10 days

0

17

Husqvarna 504790801

PLUG WELCH

Note: . 1

$7.99

$

In Stock, Qty 8

0

18

Husqvarna 503117701

SPRING

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 503117101

BALL 394

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 501666101

FUEL INLET SCREEN

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503800501

PLUG FRICTION

Note: . 1

$9.49

$

In Stock, Qty 10

0

22

Husqvarna 544971001

SPRING

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 544970801

LIMITER CAP

Note: . 1

$8.99

$

In Stock, only 2 left!

0

24

Husqvarna 504791801

NEEDLE

Note: Low speed. 1

$7.99

$

In Stock, only 1 left!

0

25

Husqvarna 544971301

NEEDLE

Note: High speed. 1

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503800001

THROTTLE FLAP

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 544111501

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 504790401

SHAFT ASSY THROTTLE

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

29

Husqvarna 576138201

SPRING

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 502103101

BUSHING

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

31

Husqvarna 504791101

SCREW

Note: . 1

$43.99

$

Usually ships in 3-10 days

0

32

Husqvarna 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 505316707

CHOKE FLAP

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 504790501

SHAFT ASSY

Note: . 1

$49.99

$

Usually ships in 3-10 days

0

35

Husqvarna 504791501

SPRING CHOKE

Note: . 1

$20.99

$

In Stock, only 2 left!

0

36

Husqvarna 544897201

DIAPHRAM PUMP

Note: . 1 40

$26.99

$

In Stock, only 2 left!

0

37

Husqvarna 503117201

GASKET

Note: . 1 40

$11.99

$

In Stock, only 1 left!

0

38

Husqvarna 504790301

COVER PUMP

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

39

Husqvarna 503117501

SCREW W/ WASHER

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

40

Husqvarna 522591801

DIAPHRAGM SET

Note: Set of gaskets

$20.99

$

In Stock, only 1 left!

0
