38LTST1 (7080560) - Snapper 38" Snow Thrower Attachment Lift Components Parts Diagram

38" Snow Thrower Attachment

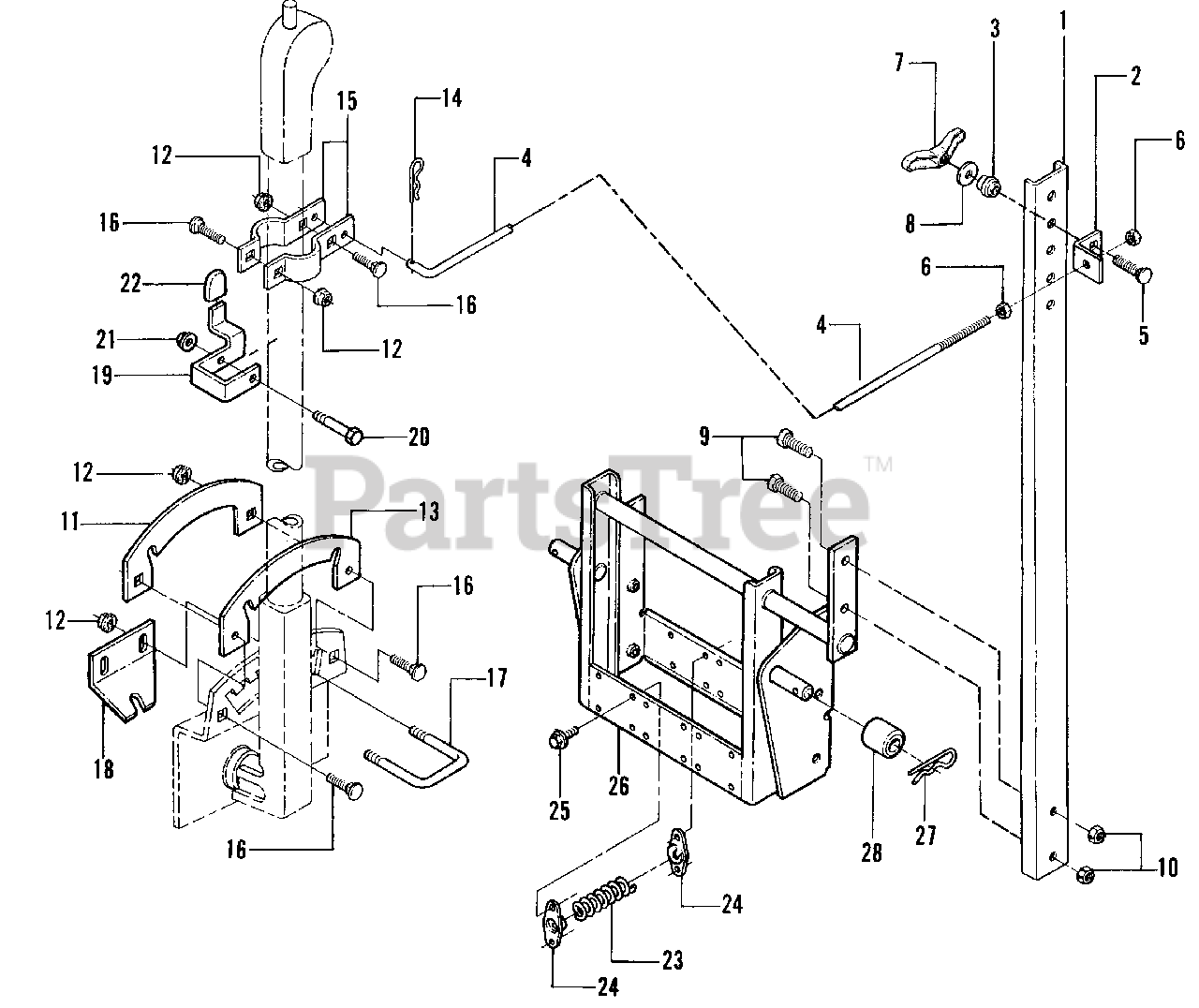

Lift Components Parts Diagram

  • Title

1

Snapper 7036185

ARM, Lift

$

$

Not available

2

Snapper 7032522

SWIVEL, Lift Rod

$

$

Currently unavailable

3

Snapper 7015515

SPACER
(Superseded to 7015515YP)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7032834

ROD, Lift
(Superseded to 7032834YP)

$94.99

$

Usually ships in 2-12 days

0

5

Snapper 7090959

BOLT, 5/16-18 x 2 1/2" Short Neck Carriage
(Superseded to 7090959SM)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7016368

NUT, 5/16-18 Wing

$

$

Not available

8

Snapper 7016314

WASHER
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7090622

SCREW, 1/2-13 x 1" Hex Flange Lock
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7090619

NUT, 1/2-13 Hex Flge. Lk.
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7034105

PLATE, Quadrant Float
(Superseded to 7034105YP)

$9.99

$

Usually ships in 2-12 days

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flge. Lk.
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

13

Snapper 7034106

PLATE, Quadrant
(Superseded to 7034106YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 7091503

PIN, 3/32 x 1 1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7032763

TAB
(Superseded to 7032763YP)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7091255

BOLT, 1/4-20 Square "U"
(Superseded to 7091255YP)

$6.99

$

Usually ships in 2-12 days

0

18

Snapper 7034098

PLATE, Mounting
(Superseded to 7034098YP)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 7027943

BRACKET

$

$

Currently unavailable

20

Snapper 7091813

SCREW, 1/4-20 x 1 3/4" Hex Head Cap, Grade 5
(Superseded to 7091003YP)

Note: Was 91222

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

Note: Was 91099

$

$

Not available

22

Snapper 7028026

COVER, Bracket

$

$

Currently unavailable

23

Snapper 7023213

SPRING

$

$

Not available

24

Snapper 7038392

RETAINER, Spring
(Superseded to 7038392YP)

$39.99

$

Usually ships in 2-12 days

0

25

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Head Cap, Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, only 3 left!

0

26

Snapper 7049779

STRUCTURE, Lift Bracket

$

$

Currently unavailable

27

Snapper 13834

PIN, Hair

$

$

Currently unavailable

28

Snapper 7021988

BUSHING, Hitch
(Superseded to 7021988YP)

$22.99

$

Usually ships in 2-12 days

0
